The Voltex® hybrid electric heat pump water heater lives up to its impressive reputation. The line has larger storage capacities, which means more energy stored, resulting in increased savings. The consumer friendly display is simple to operate and provides easy-to-understand feedback on operational status.
AO Smith® Electric Heat Pump Water Heater, 66 gal Capacity, 4500 W, 79 gal First Hour Delivery, 3.45 Energy Factor, 30 A, 208/240 V, 60 Hz, 60 deg F, Stainless Steel, Glass, 27 in Dia x 61 in H
| Amperage Rating | : | 30 A |
| Capacity | : | 66 gal |
| Dimensions | : | 27 in Dia x 61 in H |
| Energy Factor | : | 3.45 |
| Finish | : | Glass |
| First Hour Delivery | : | 79 gal |
| Frequency Rating | : | 60 Hz |
| Material | : | Stainless Steel |
| Power Rating | : | 4500 W |
| Temperature Rating | : | 60 deg F |
| Voltage Rating | : | 208/240 V |
- Absorbs ambient heat from the surrounding air to heat water using a compressor and environmentally friendly R-134A refrigerant
- The self-contained heat pump unit is integrated into the top of the tank
- Multiple operating modes to maximize efficiency and performance
- Improved efficiency design to ensure available hot water at the lowest possible cost and up to a 3.45 uniform energy factor (EF) rating conserves energy and meets energy STAR® qualifications
- Select from efficiency, hybrid or electric modes to match heating requirements to environmental conditions
- Hybrid mode automatically adjusts between compressor and element, depending upon heat requirements
- Vacation mode reduces operating costs and provides freeze protection during extended absence
- Long-lasting backup heating elements help heat water according to environmental conditions, demand and the chosen operating mode
- Commercial-grade glass coating provides superior corrosion-resistance
- Temperature and pressure relief valve protects the tank against excessive temperature and pressure
- Permits installation in confined places and allow using cool air discharge for cooling other areas at home
- Control system checks to ensure the tank is full of water during start-up to prevent dry firing the heating elements

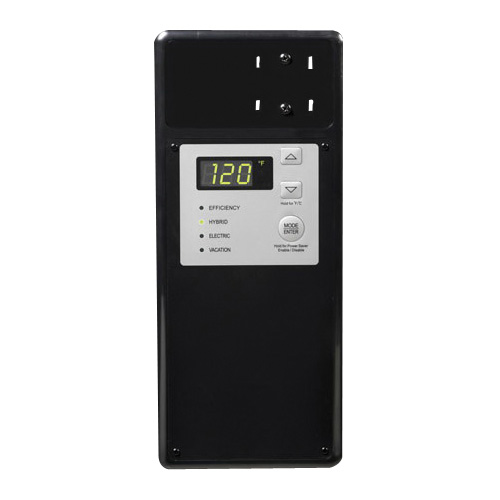

- User friendly electronic interface allows easy control of temperature setting, operating modes and communicates diagnostics
- Easy to read temperature display shows temperature in deg F or deg C
- The last four error messages are saved in the control system memory
- Dual anode rods with stainless steel cores allowing superior tank protection for much longer life
- Solid brass, tamper-resistant, ball type drain valve designed for easy operation
- Advanced diagnostics convey error messages for service purposes
