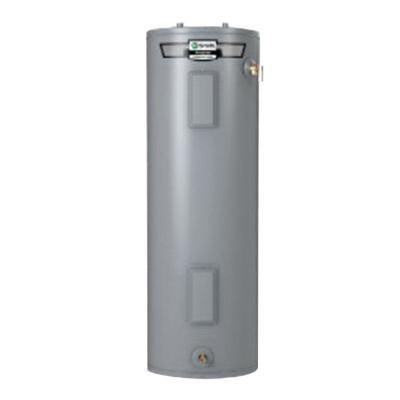

AO Smith® Residential Electric Water Heater, 40 gal Capacity, 20473 Btu/hr, 53 gph First Hour Delivery, 0.95 Energy Factor, 21 gph Recovery Rate, 2 Elements, 4500 W Element, 240 V, MNPT Connection, 3/4 in Connection, 20 in Dia x 61-1/4 in H
| BTU Rating | : | 20473 Btu/hr |
| Capacity | : | 40 gal |
| Connection Size | : | 3/4 in |
| Connection Type | : | MNPT |
| Dimensions | : | 20 in Dia x 61-1/4 in H |
| Element Material | : | Stainless Steel |
| Element Wattage | : | 4500 W |
| Energy Factor | : | 0.95 |
| First Hour Delivery | : | 53 gph |
| Number of Elements | : | 2 |
| Recovery Rate | : | 21 gph |
| Voltage Rating | : | 240 V |
- Incoloy stainless steel lower element lasts longer than a standard copper element
- Helps reduce lime and sediment build up, maximizes hot water output, made from long-lasting Pex cross linked polymer
- Eco friendly non-CFC foam insulation, heat traps and other features combine to yield a higher energy factor that maximizes savings on operating costs
- Our anode rods have a stainless steel core that extends the life of the anode rod allowing superior tank protection far longer than standard anode rods
- Blue diamond glass coating provides superior corrosion resistance compared to industry standard glass lining
- Our residential water heaters have a solid brass, tamper-resistant, enhanced flow, ball-type, drain valve
- Uses a standard female hose fitting that allows for fast and easy draining during maintenance
- Designed for easy operation, this valve includes an integral screwdriver slot that features a quarter-turn (open/close) radius, which not only permits full straight through water flow but also a quick and positive shut-off
Instruction/Installation Manual
