BrassCraft® BWB0-24

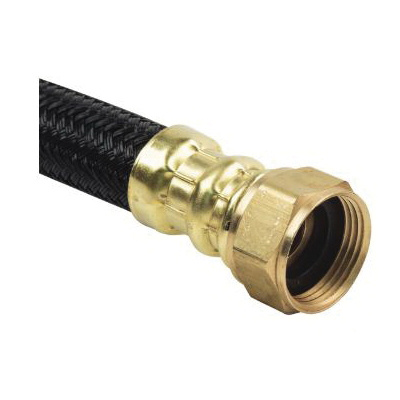

BrassCraft® BWB0-24 Braided Water Heater Connector, 3/4 in, FIP, 24 in L, 0.57 in ID, Brass/Coated Yarn/Rubber
- Manufacturer: BrassCraft Manufacturing Company
- Brand Name: BrassCraft®
- Part#: 2832048
- MPN: BWB0-24
- UPC: 026613965420
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
-
Price:
BrassCraft® Speedi Plumb® plus 3/4 in FIP inlet x 3/4 in FIP outlet flexible braided polymer water heater connector (0.57 in ID). Used to connect the water supply to your water heater, this connector features a patented polymer braided jacket specially engineered to be less abrasive and more flexible than the leading connectors. The polymer fibers bend freely without kinking, crimping or flattening, making installation easier, especially in cramped quarters. The EPDM rubber core is a non-conductive material. The absence of dissimilar metals within the waterway eliminates the potential for internal corrosion.
BrassCraft® Braided Water Heater Connector, BWB0 Series Series, 3/4 in Connection, FIP Connection, 24 in Length, 0.57 in ID, Brass/Coated Yarn/Rubber, Black, Lead-Free, 125 psi, 40 to 160 deg F
| Color | : | Black |
| Connection Size | : | 3/4 in |
| Connection Type | : | FIP |
| Inside Diameter | : | 0.57 in |
| Lead-Free/Contains Lead | : | Lead-Free |
| Length | : | 24 in |
| Material | : | Brass/Rubber |
| Pressure Rating | : | 125 psi |
| Series | : | BWB0 Series |
| Temperature Rating | : | 40 to 160 deg F |
- Braided polymer tube
- Use to connect water supply to water heater
- For use in exposed locations only to connect water heaters and other water connected devices to the water supply
- Not intended for use with recirculating water systems that produce continuous use temperatures above 115 deg F
- The polymer braid exhibits greater elasticity than stainless steel braiding
- No dielectric union needed with installation
- For indoor use
- Temperature rating 40 to 160 deg F, intermittent to 180 deg F
