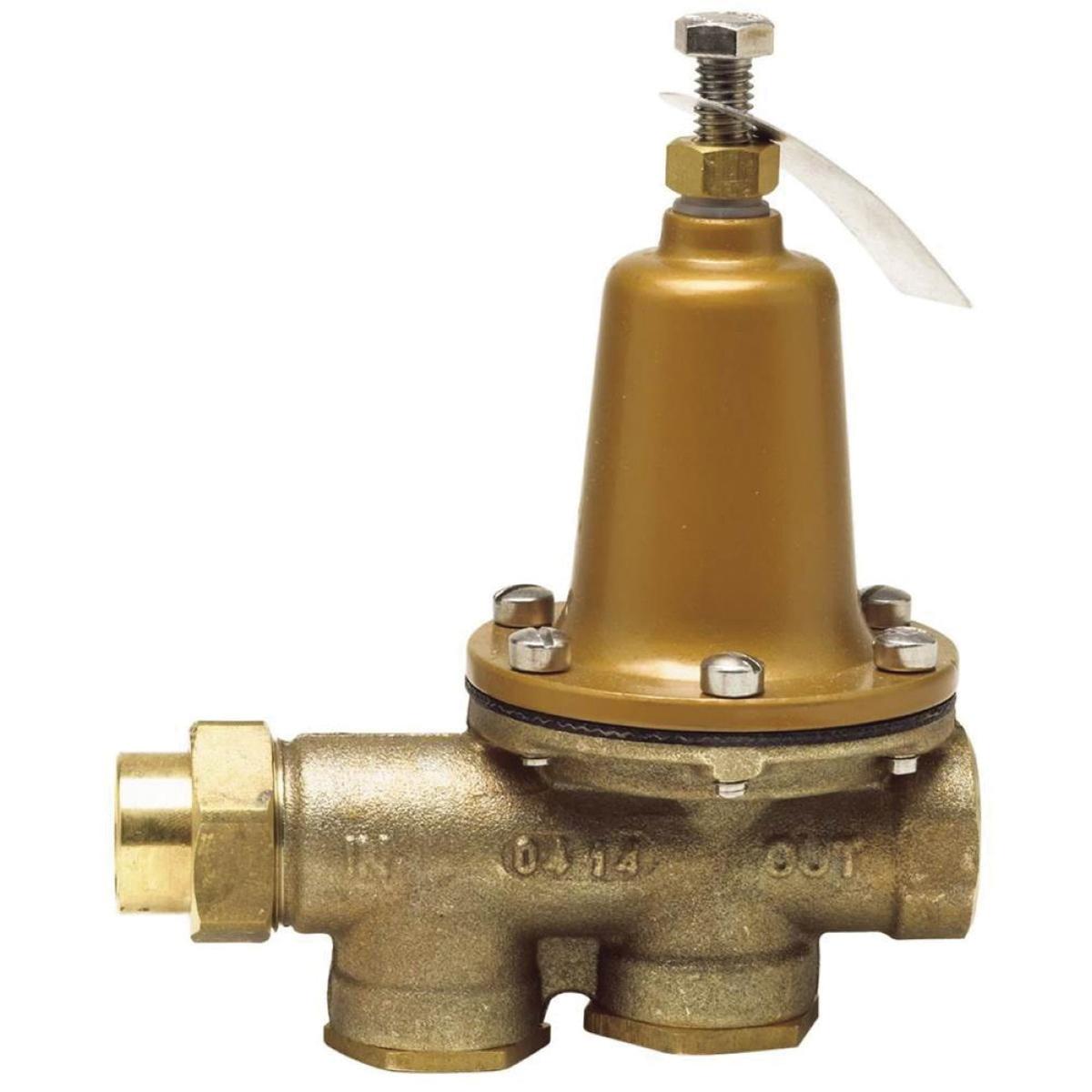

This 3/4 in lead-free brass water pressure reducing valve for low pressure ranges is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a replaceable seat module, NPT threaded female union inlet by NPT female outlet and a bypass feature to control thermal expansion pressure. The temperature range is 33 to 180 deg F (0.5 to 82 deg C). The low pressure range is 10 to 35 psi (69 to 241 kPa) with the standard setting at 30 psi (207 kPa).
WATTS® Pressure Reducing Valve, Series: LF25AUB-Z3 Series, 3/4 in Nominal, FNPT Union x FNPT Connection, 300 psi, Water Media, 5-5/16 in Inlet to Outlet Length, Cast Copper Silicon Alloy Body, Polymer Seat, EPDM Disc, Engineered Composite Trim, Lead-Free, 33 to 180 deg F
| Body Material | : | Copper Silicon |
| Connection Type | : | FNPT Union x FNPT |
| Disc Material | : | EPDM |
| Inlet to Outlet Length | : | 5-5/16 in |
| Lead-Free/Contains Lead | : | Lead-Free |
| Media | : | Water |
| Nominal Size | : | 3/4 in |
| Pressure Rating | : | 300 psi |
| Seat Material | : | Polymer |
| Series | : | LF25AUB-Z3 Series |
| Temperature Rating | : | 33 to 180 deg F |
| Trim Material | : | Engineered Composite |
- Replaceable seat module
- Integral stainless steel strainer removable for cleaning
- Sealed spring cage with stainless steel cage screws
- Low pressure applications
