BrassCraft® G2R17X C

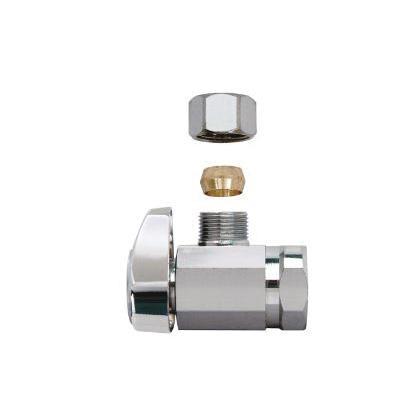

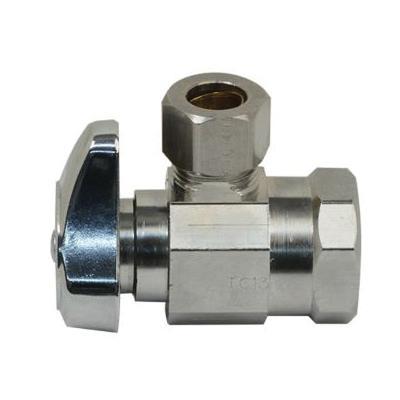

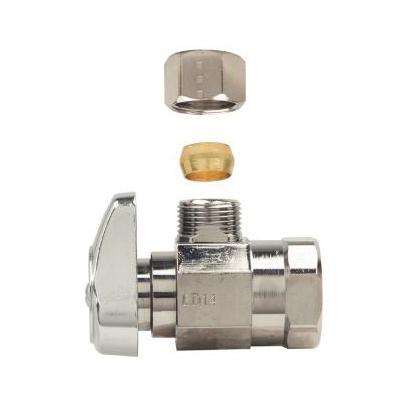

BrassCraft® G2R17X C Angle Stop Valve, 1/2 x 3/8 in Nominal, FIP x OD Compression Connection, 125 psi Pressure
- Manufacturer: BrassCraft Manufacturing Company
- Brand Name: BrassCraft®
- Part#: 2712230
- MPN: G2R17X C
- UPC: 026613137926
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
-
Price:
BrassCraft® Angle Stop Valve, 1/2 x 3/8 in Nominal, Connection Type: FIP x OD Compression, 125 psi, Brass Body, Die-Cast Zinc Handle, Chrome-Plated, 40 to 140 deg F, 1.95 in L Dimensions, Additional Information: Lead-Free
| Additional Information | : | 1.09 in Top to inlet Center |
| Body Material | : | Brass |
| Connection Type | : | FIP x Compression |
| Dimensions | : | 1.95 in L |
| Domestic/Import | : | Domestic |
| Finish | : | Chrome-Plated |
| Handle Material | : | ABS/Zinc |
| Nominal Size | : | 1/2 x 3/8 in |
| Pressure Rating | : | 125 psi |
| Softgoods Material | : | Rubber/TPE |
| Temperature Rating | : | 40 to 160 deg F |
- BrassCraft® G2 quarter-turn stops combine quarter-turn technology, durable construction and proven performance at an affordable price
- One piece shut-off mechanism provides smooth on-off operation without freeze UPS even after long periods of non-use
- Positive quarter-turn shut-off
- Full flow operation with no waterway obstructions
- Corrosion-resistant handle is plated in an attractive chrome-plated finish
- Machined one piece brass body provides strength, durability and long-lasting performance
- Easy-to-remove handle with screw attachment helps protect against accidental operation during rough-ins
- 100% leak tested
- C3600 brass compression nut and sleeve, santoprene stem barrel, glass filled polypropylene stem shaft, EPDM O-ring, zinc-plated steel screw
