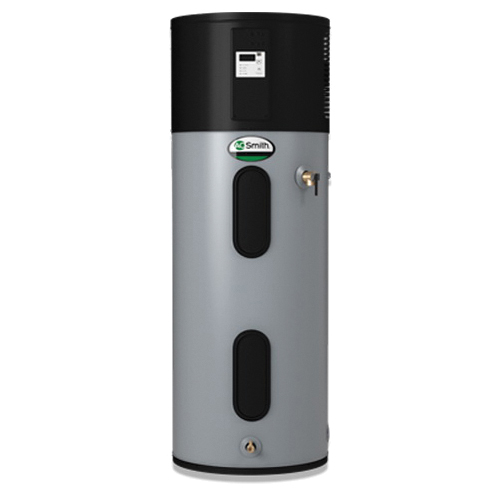

The Voltex® hybrid electric heat pump water heater absorbs heat from the air to heat water efficiently. Voltex® typically gives better savings than solar water heaters and can reduce water heating costs up to 73%.
AO Smith® Electric Heat Pump Water Heater, 50 gal Capacity, 4500 W, 66 gal First Hour Delivery, 3.45 Energy Factor, 30 A, 208/240 V, 60 Hz, 60 deg F, Stainless Steel, Glass, 22 in Dia x 63 in H
| Amperage Rating | : | 30 A |
| Capacity | : | 50 gal |
| Dimensions | : | 22 in Dia x 63 in H |
| Energy Factor | : | 3.45 |
| Finish | : | Glass |
| First Hour Delivery | : | 66 gal |
| Frequency Rating | : | 60 Hz |
| Material | : | Stainless Steel |
| Power Rating | : | 4500 W |
| Temperature Rating | : | 60 deg F |
| Voltage Rating | : | 208/240 V |
- Absorbs ambient heat from the surrounding air to heat water using a compressor and environmentally friendly R-134A refrigerant
- The self-contained heat pump unit is integrated into the top of the tank
- Multiple operating modes to maximize efficiency and performance
- Improved efficiency design to ensure available hot water at the lowest possible cost and up to a 3.45 uniform energy factor (EF) rating conserves energy and meets energy STAR® qualifications
- Select from efficiency, hybrid or electric modes to match heating requirements to environmental conditions
- Hybrid mode automatically adjusts between compressor and element, depending upon heat requirements
- Vacation mode reduces operating costs and provides freeze protection during extended absence
- Long-lasting backup heating elements help heat water according to environmental conditions, demand and the chosen operating mode
- Commercial-grade glass coating provides superior corrosion-resistance
- Temperature and pressure relief valve protects the tank against excessive temperature and pressure
- Permits installation in confined places and allow using cool air discharge for cooling other areas at home
- Control system checks to ensure the tank is full of water during start-up to prevent dry firing the heating elements

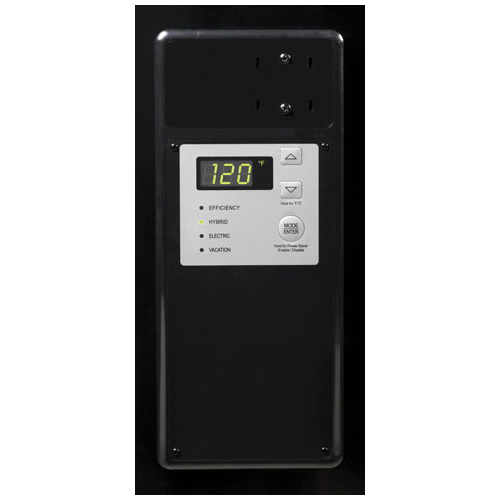

- User friendly electronic interface allows easy control of temperature setting, operating modes and communicates diagnostics
- Easy to read temperature display shows temperature in deg F or deg C
- The last four error messages are saved in the control system memory
- Our anode rods have a stainless steel core that extends the life of the anode rod allowing superior tank protection far longer than standard anode rods
- Solid brass, tamper-resistant, ball type drain valve designed for easy operation
- Advanced diagnostics convey error messages for service purposes
