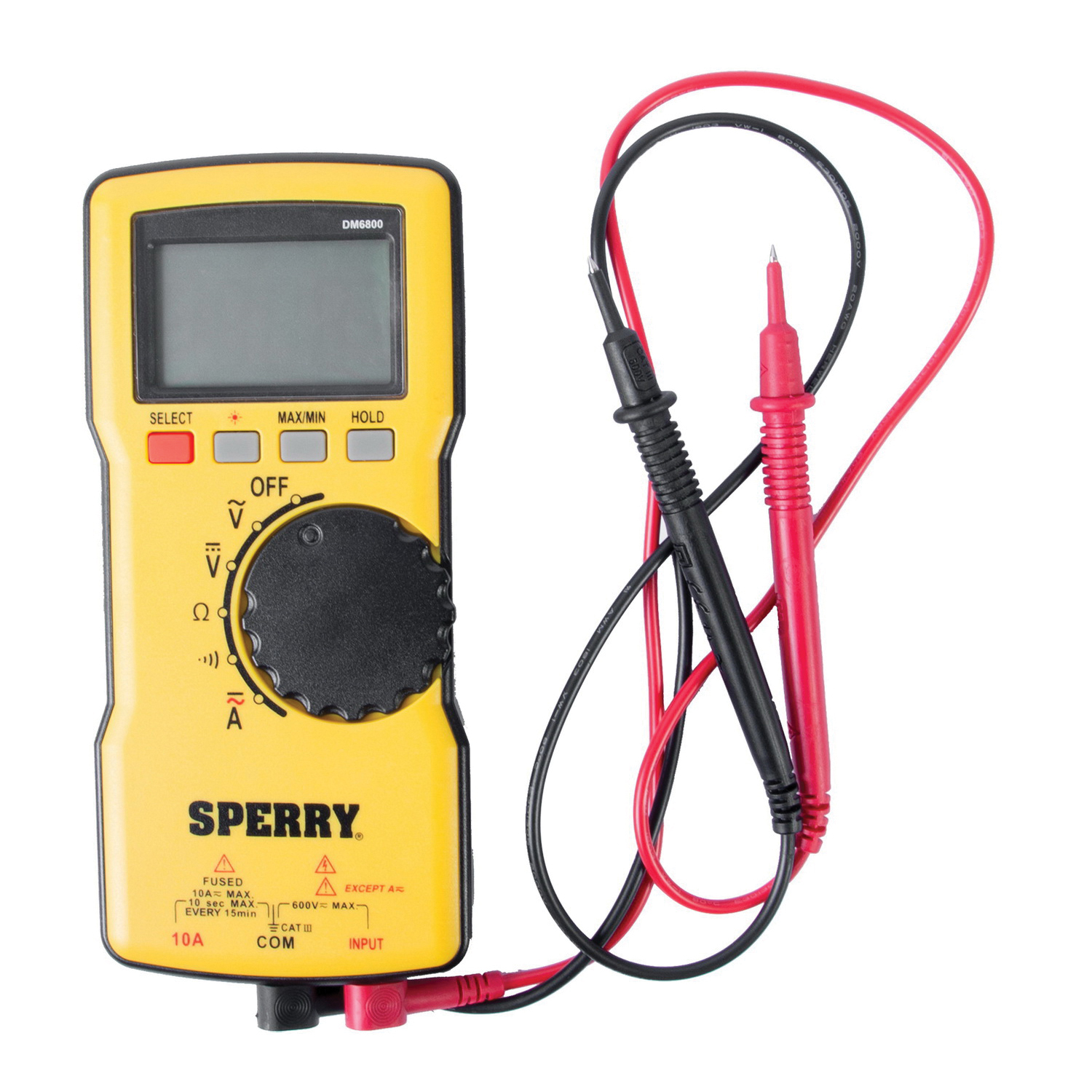

Engineered to exceed the expectations of the professional electrician the SPERRY® INSTRUMENTS DM6800 thin digital multimeter offers a durable and ergonomic impact-resistant design manufactured to the latest industry standards. At less than 3/4 in THK, this is the thinnest full sized multimeter yet. Engineered with the ability to test AC/DC voltage, amperage, resistance and continuity. Featuring improved audible and visual indicators and a backlit display. Requires two AAA batteries included in the package and designed with both an auto-off function to save battery life and a low battery indicator to ensure the user does not receive incorrect readings due to a low battery. Unit utilizes auto ranging capabilities that allow the meter to determine the resolution based on the application selected without requiring manual range changes. Capable of testing 600 VAC/DC, this unit also measures AC/DC amps (10 A), resistance (200, 2 k, 20 k, 200 k, 2 M, 20 M Ohm) and continuity (audible). Durable housing is impact-resistant.
SPERRY® INSTRUMENTS Digital Multimeter, 600 VAC/VDC, 10 A, 50 to 400 Hz, 40 MOhm Resistance, Digital Display, Voltage Accuracy: 0.8%, 1%, Current Accuracy: 1.2%, 1.5%, 1% + 5 Resistance Accuracy, Humidity Rating: >85 %, 32 to 104 deg F, 7 x 3.2 x 0.69 in
| Amperage Rating | : | 10 A |
| Current Accuracy | : | 1.2%, 1.5% |
| Dimensions | : | 7 x 3.2 x 0.69 in |
| Display Type | : | Digital |
| Frequency Rating | : | 50 to 400 Hz |
| Humidity Rating | : | >85 % |
| Resistance Accuracy | : | 1% + 5 |
| Resistance | : | 40 MOhm |
| Temperature Rating | : | 32 to 104 deg F |
| Voltage Accuracy | : | 0.8%, 1% |
| Voltage Rating | : | 600 VAC/VDC |

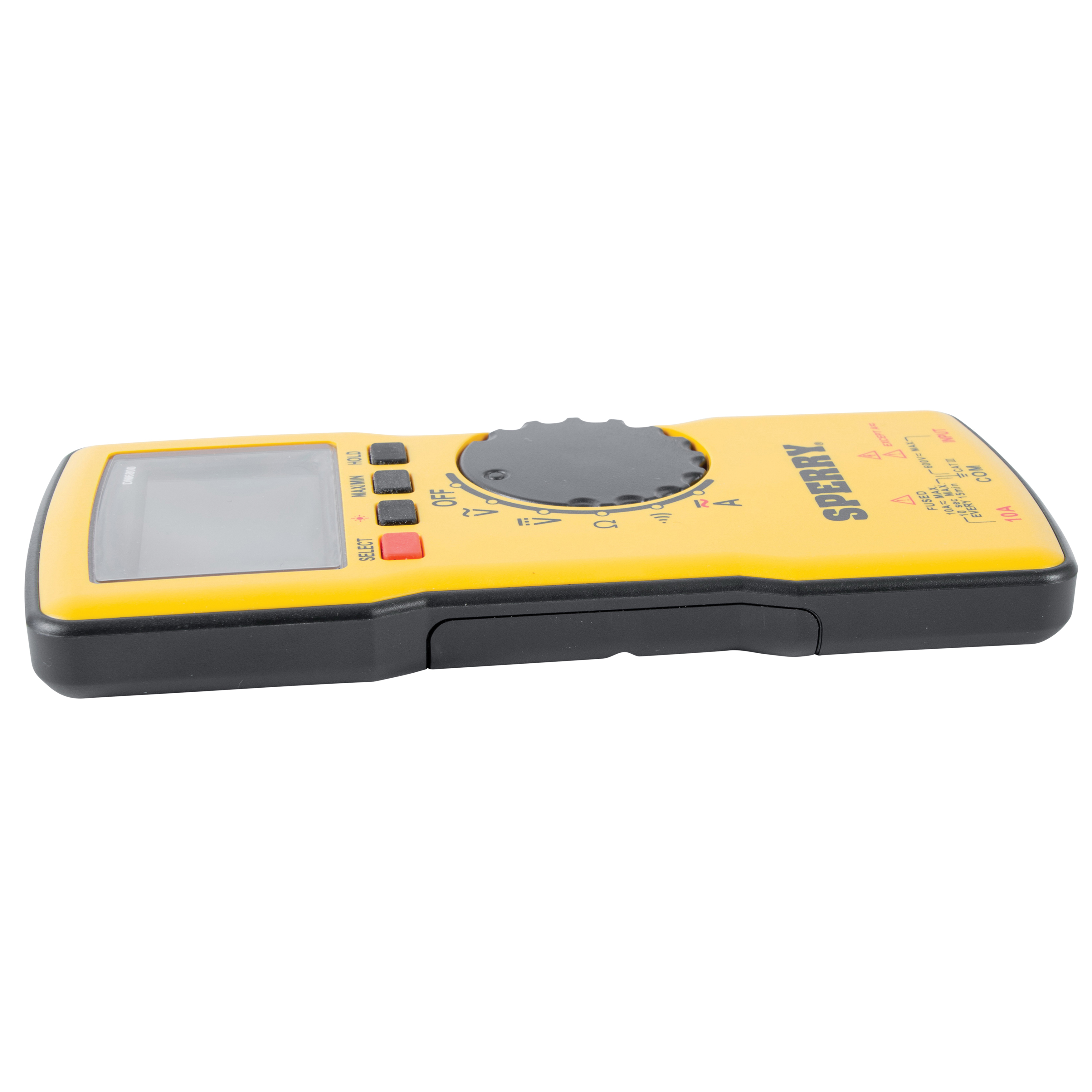

- Thin design less than 3/4 in THK
- Features auto-ranging, backlit display, data hold function, min/max function and auto-off function
- 10 ft drop rating, 250 lb crush rating
- Measure AC/DC voltage, AC current, resistance, continuity
