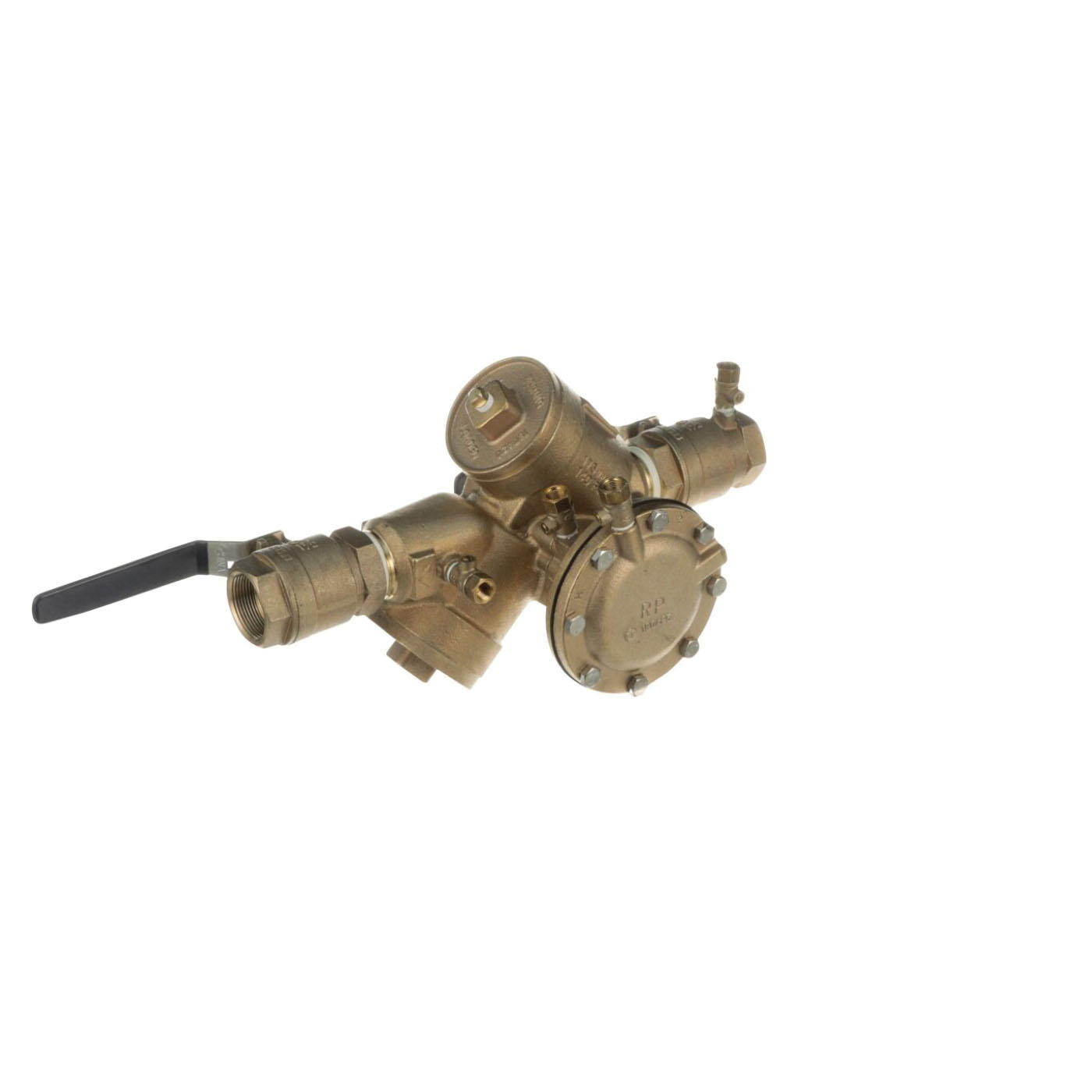

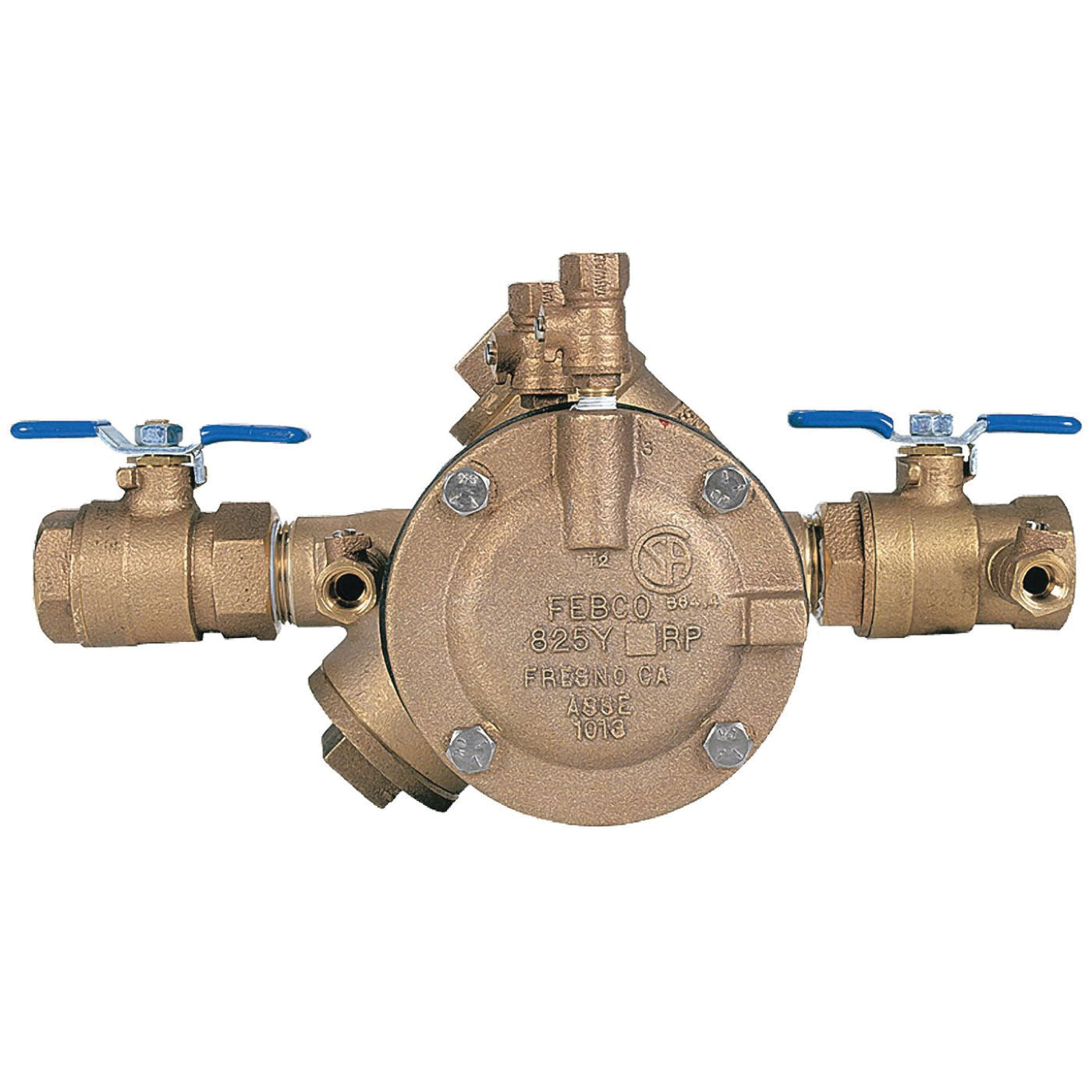

This 1-1/2 in lead-free Y-pattern reduced pressure zone backflow preventer assembly is designed to prevent the reverse flow of high hazard (toxic) fluids found in the water from entering into the potable water supply due to backsiphonage and or backpressure in accordance with national plumbing codes and water authority requirements. It is used in water services to industrial plants, hospitals, morgues, mortuaries and chemical plants and is also used in irrigation systems, boiler feed, water lines and other installations requiring maximum protection. This assembly consists of a lead-free body, threaded quarter-turn ball valves, test cocks, spring loaded Y-pattern check valves and one hydraulically dependent differential relief valve.
Febco® Reduced Pressure Assembly, Series: LF825Y Series, 1-1/4 in Connection, Connection Type: FPT, Reduced Pressure Zone Assembly Backflow Preventer Type, 0 to 175 psi, 32 to 140 deg F, Bronze Body, Lead-Free/Contains Lead: Lead-Free, Copper Silicon
| Backflow Preventer Type | : | Reduced Pressure Zone Assembly |
| Body Material | : | Bronze |
| Connection Size | : | 1-1/4 in |
| Connection Type | : | FPT |
| Finish | : | Copper Silicon |
| Lead-Free/Contains Lead | : | Lead-Free |
| Pressure Rating | : | 0 to 175 psi |
| Series | : | LF825Y Series |
| Temperature Range | : | 32 to 140 deg F |
- Built of lead-free bronze and cast-copper silicon alloy for durability
- Designed to keep high hazard (toxic) fluids from entering potable water systems serving industrial plants, hospitals, morgues, mortuaries and chemical plants
- Also ideal for irrigation systems, boiler feeds and other installations requiring maximum protection
- Modular relief valve allows for easy maintenance, while replaceable seat rings ensure longer valve life
- This product includes a durable lead-free body; threaded quarter-turn ball valves; test cocks; spring -loaded Y-pattern check valves and one hydraulically dependent differential relief valve
Instruction/Installation Manual
