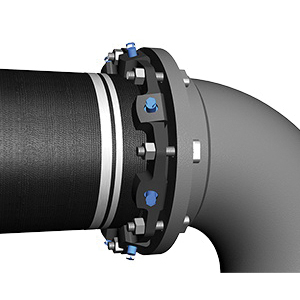

The Series 1100 MEGALUG® mechanical-joint restraints effectively and economically restrain ductile iron pipe (DIP) to mechanical-joints above or below ground, for practically any application including valves, hydrants and pipe. For use on all classes of ductile iron pipe (PC350 through PC150 and CL56 through CL50) without damage to the pipe or cement linings. It can also be used on steel pipe and cast iron pipe when joining to mechanical appurtenances, see product brochure for more details on these pipes.
EBAA IRON Restraint, 1100 Series, 6 in Pipe, Connection Type: Mechanical Joint, Iron, 350 psi, Additional Information: 3 deg Post Assembly Deflection
| Additional Information | : | 3 deg Post Assembly Deflection |
| Connection Type | : | Mechanical Joint |
| Material | : | Iron |
| Pipe Size | : | 6 in |
| Pressure Rating | : | 350 psi |
| Series | : | 1100 Series |
- Torque limiting twist-off nuts
- MEGA-BOND® restraint coating system
- The mechanical-joint follower gland is incorporated into the restraint
- Heavy-duty thick wall design
- Split repair style available 3 in through 48 in
- Solid restraint harness available for push-on pipe bells
- Split restraint harness available for existing push-on bells
- All MEGALUG® and related restraint products can be furnished as packaged accessories complete with appropriate restraint, gasket, lubrication and bolting hardware
- For use on water or wastewater pipelines subject to hydrostatic pressure and tested in accordance with either AWWA C600 or ASTM D2774
