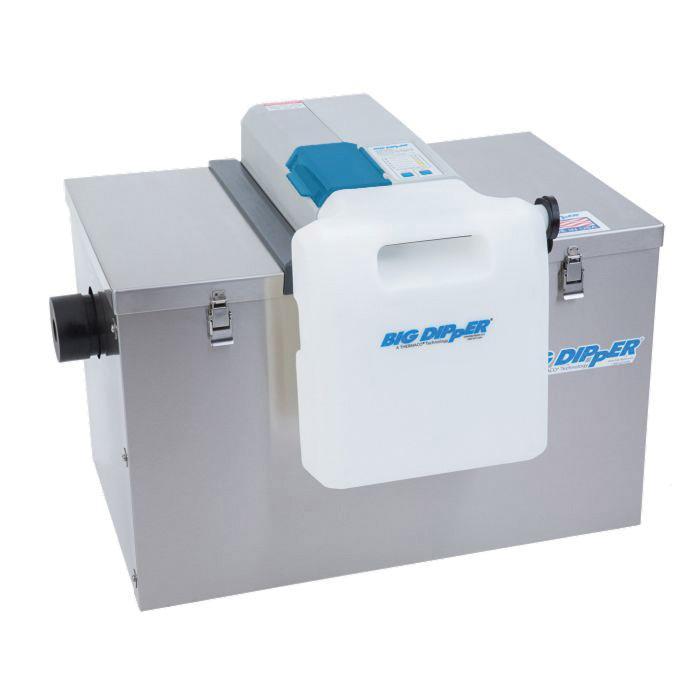

Thermaco BIG DIPPER® model number W-350-IS, bright finish type 304 stainless steel exterior, rotationally molded polyethylene interior automatic self cleaning grease and oil recovery separators for floor mounted or partially recessed installation, rated to ASME A112.14.3 and PDI-G 101 standards at 35 gpm peak flow with 85.18 lb of grease capacity and including as an integral part of the unit, 3 in inlet or outlet, one rotating gear oleophilic or hydrophobic skimming wheel assembly for automatic grease or oil removal, flow control device, self regulating electric immersion heater with thermostatic control, 1 in vessel vent, integral gas trap, digital control for programmable operation, field reversible motor assembly and grease or oil sump outlet, quick release stainless steel lid clamps, fully removable polymer lid with magnetic lid tensioners, internal polymer or stainless steel strainer basket for collection of coarse solids, polymer wiper blade unit and a separate gasketed removable grease and oils collection container with carry handle and pouring spout. Electric assembly shall be tested to comply with pertinent sections of the Standards for Safety ANSI/UL 73 and/or ANSI/UL 1004. Electric motor equipped with overload protection. Two no-hub connectors for plumbing connection provided.
BIG DIPPER® Automatic Grease Removal Device, Size: 3 in, Connection Type: No-Hub, 85.18 lb Capacity, 35 gpm Flow Rate, Polyethylene/Stainless Steel, 28.13 in L x 32 in W, Additional Information: 1 Skimming Wheel, 10.2 A Amperage, 115 VAC Voltage, 1173 W Wattage, 50/60 Hz Frequency Rating, 8 ft Cord Length
| Additional Information | : | 1 Skimming Wheel, 10.2 A Amperage, 115 VAC Voltage, 1173 W Wattage, 50/60 Hz Frequency Rating, 8 ft Cord Length |
| Capacity | : | 85.18 lb |
| Connection Type | : | No-Hub |
| Dimensions | : | 28.13 in L x 32 in W |
| Flow Rate | : | 35 gpm |
| Material | : | Polyethylene/Stainless Steel |
| Size | : | 3 in |
- Advanced odor protection (patent pending) keeps odors inside the tank and out of the kitchen

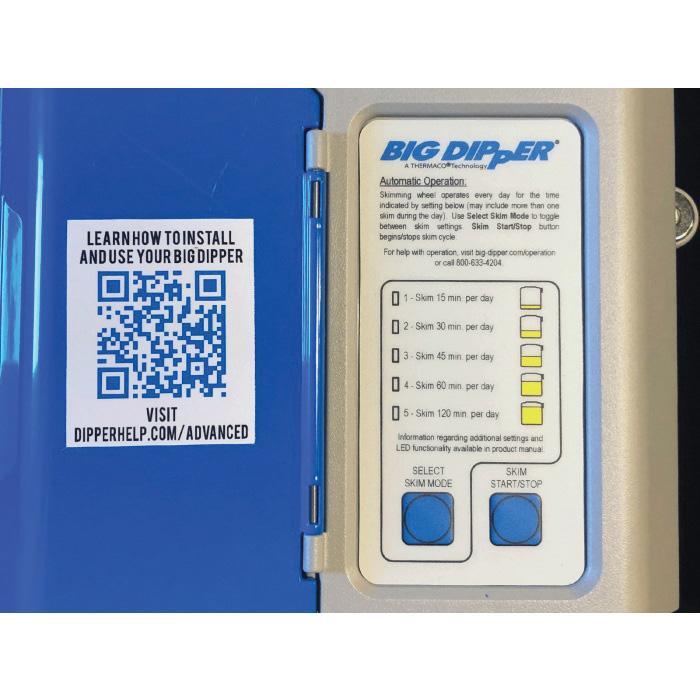

- Fully automatic self cleaning cycle, removes collected grease and oils from tank without any operator assistance, comes complete with digital control interface and grease collector
- Constructed of corrosion-resistant materials suitable for installation in virtually any location, attractive sanitary stainless steel exterior
- Integrated motor, grease outlet, heater, lid enables a fast, do-it-yourself unit operation reversal
- Compact footprint
- Two no-hub connectors provided
