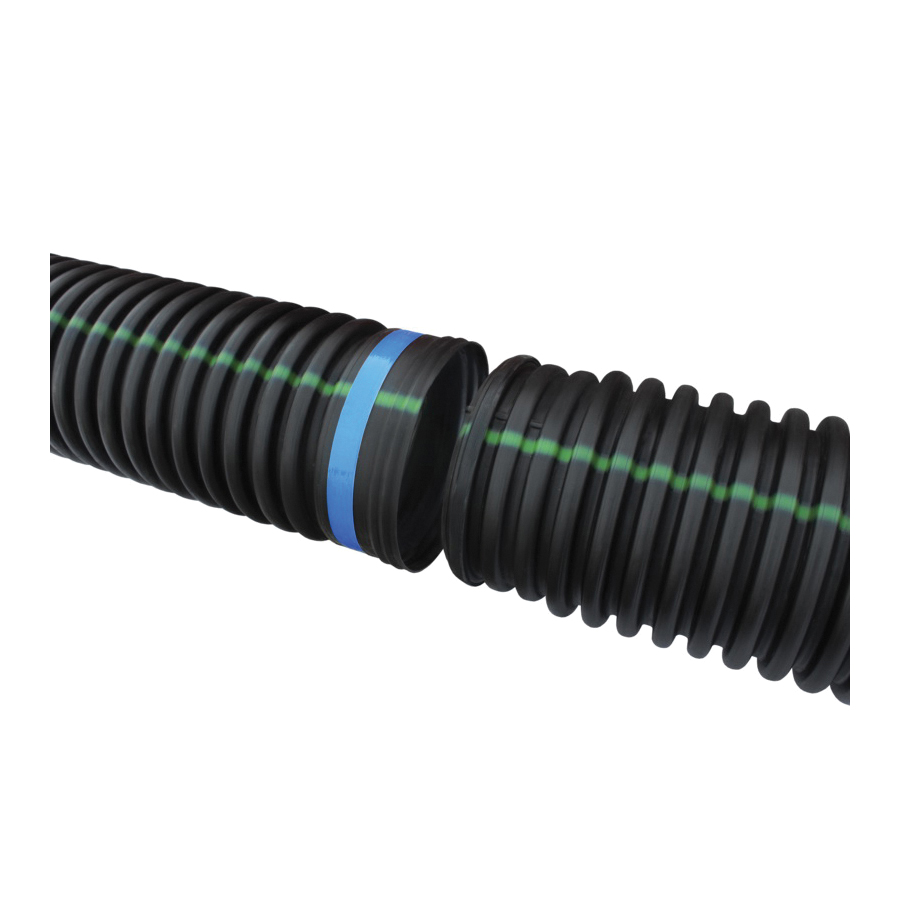

The dual wall N-12® pipe, with its smooth interior wall and corrugated exterior, offers exceptional hydraulics and strength. Built using application specific high-density polyethylene, dual wall N-12® corrugated pipe also provides superior corrosion and abrasion-resistance. This makes it an excellent alternative to reinforced concrete (RCP) and corrugated metal pipe (CMP).
ADS® Solid Watertight Dual Wall Pipe, N12 Series, 12 in Nominal Pipe, Bell End/Spigot Connection, 12 in OD, 20 ft Length, ASTM D3350 Material Standard, Polyethylene, -10 to 120 deg F
| Connection Type | : | Bell End x Spigot |
| Length | : | 20 ft |
| Material Standard | : | ASTM D3350 |
| Material | : | Polyethylene |
| Nominal Pipe Size | : | 12 in |
| Outside Diameter | : | 12 in |
| Series | : | N-12 Series |
| Temperature Rating | : | -10 to 120 deg F |
- Smooth interior with a manning's value of 0.012 resulting in increased flow capacity
- Inert HDPE material is resistant to the effects of chemicals, abrasion, hot soils and effluent
- Lightweight product for best installed cost and maximizing delivery and installation efficiencies
- Structurally designed corrugated exterior to support typical construction and long-term loading
- Soft, paste like compound
- High-performance pipe joint lubricant
- NSF certified for potable water pipelines
- Contains no petroleum, will not swell gaskets
- Non-toxic, no objectionable odor
- Will not support bacteria
- Effect on gaskets-less than 1% weight gain and less than 1 duro hardness loss
- Effectively lubricates pipe and pipe gaskets for safe and efficient assembly
