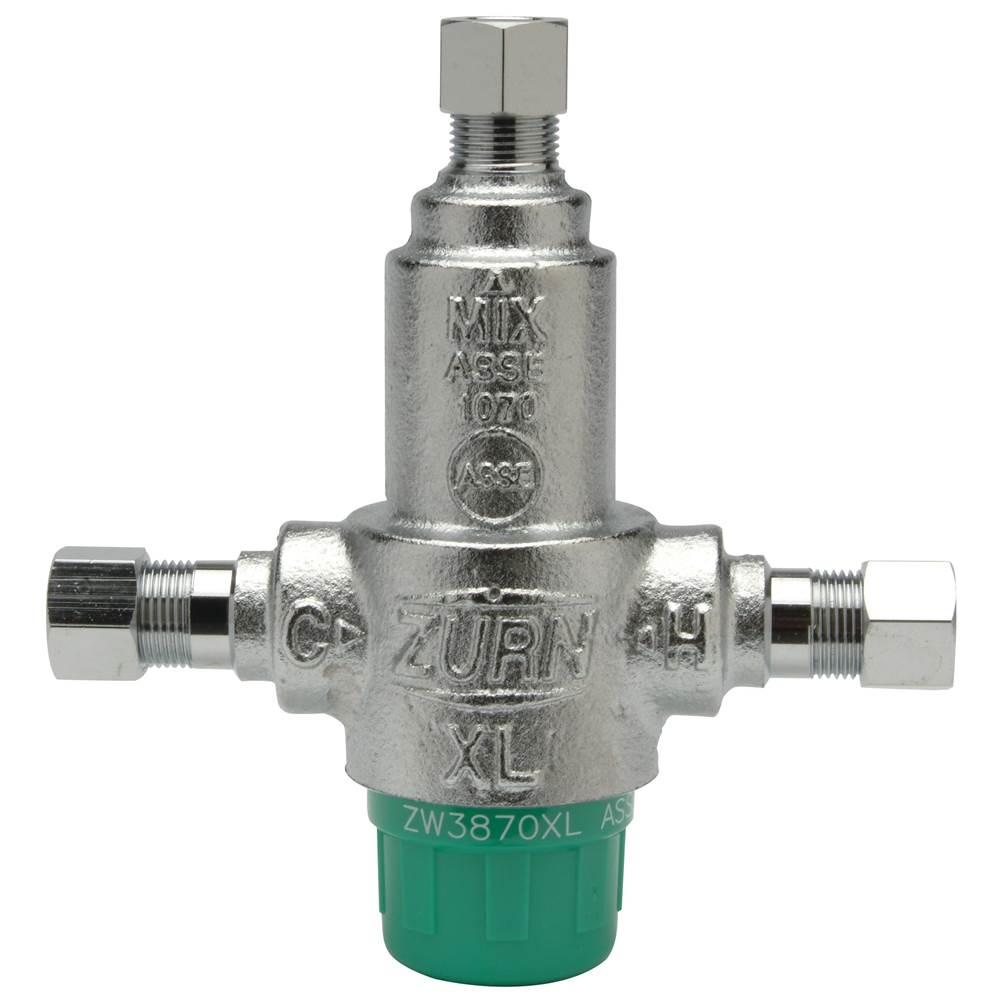

The Aqua-Gard® ZW3870XLT thermostatic mixing valve is designed to be installed with 3/8 in point of use applications (residential and light commercial installations) to mix hot and cold water from the distribution system to a final safer temperature.
Zurn® Aqua-Gard® Thermostatic Mixing Valve, 3/8 in Nominal, Compression Connection, 145 psi, 3.1 gpm Flow Rate, Cast Bronze Body, FKM Seal, Nickel-Plated, 40 to 195 deg F, 4-27/32 in H x 4-3/16 in W
| Body Material | : | Bronze |
| Connection Type | : | Compression |
| Dimensions | : | 4-27/32 in H x 4-3/16 in W |
| Finish | : | Nickel-Plated |
| Flow Rate | : | 3.1 gpm |
| Nominal Size | : | 3/8 in |
| Pressure Rating | : | 145 psi |
| Seal Material | : | FKM |
| Temperature Rating | : | 40 to 195 deg F |
- Most suitable for use with sensor faucets
- Inlet checks and strainers included
- Designed for single fixture use
