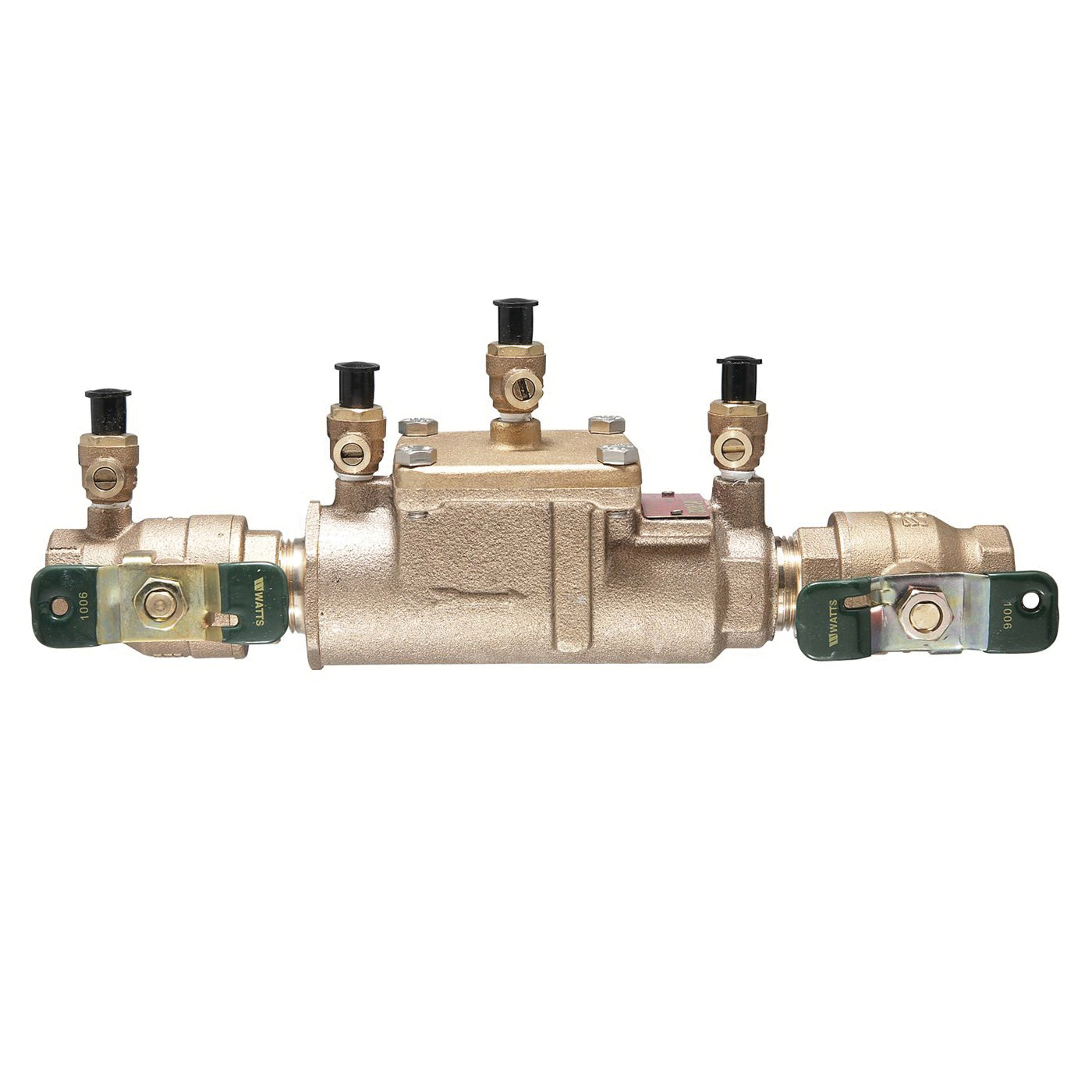

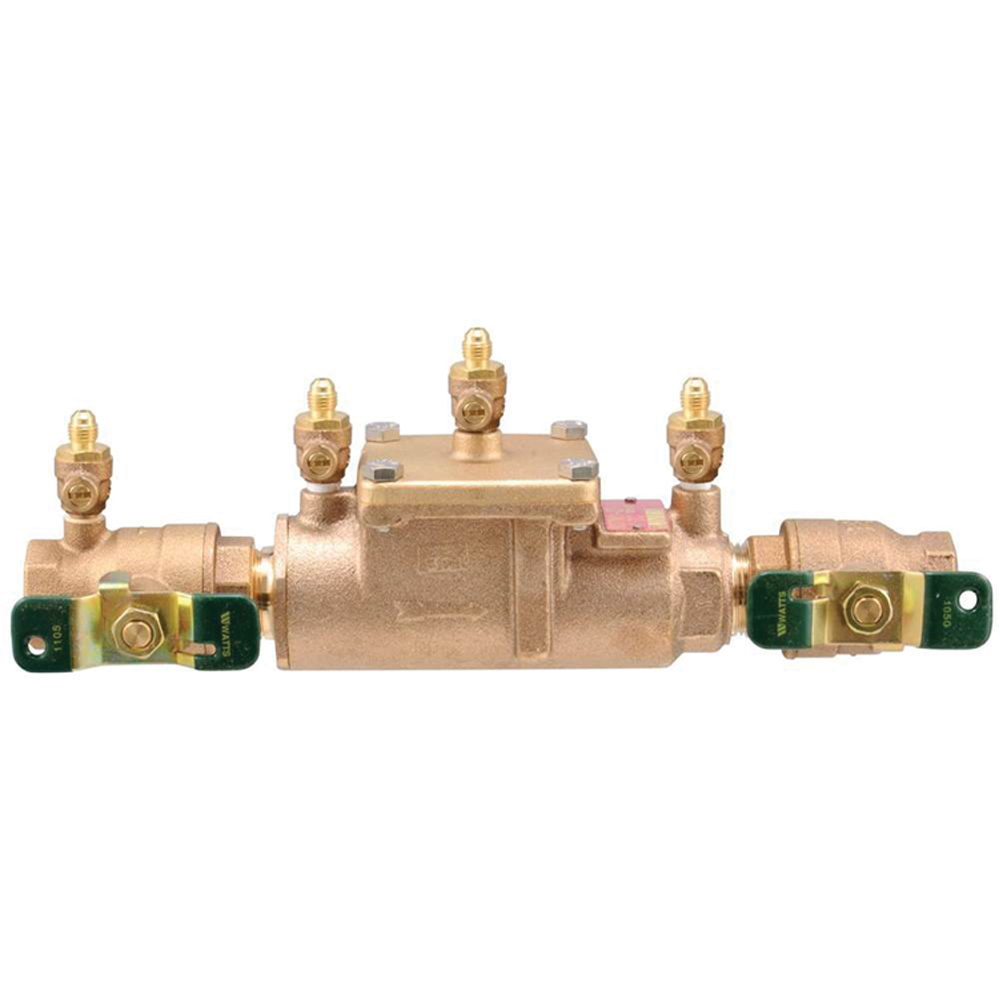

This 2 in lead-free double check valve backflow preventer assembly is designed to prevent the backflow of polluted water from entering into the potable water supply due to backsiphonage and or backpressure in accordance with national plumbing codes and water authority requirements. Its compact modular design facilitates easy maintenance with a single access cover for in-line repairs. It is ideal for protection in continuous pressure piping applications and at cross-connections identified as non-health hazards and for contaminants at the service line entrance. This assembly consists of a lead-free body construction, NPT end connections, quarter turn ball valve shutoffs, top mounted test cocks, two in-line independent positive seating check modules, captured springs and replaceable check discs and seats.
WATTS® Lead-Free Double Check Valve Backflow Preventer, Series: LF007, 2 in Nominal, FNPT, 175 psi, Media: Water, Quarter Turn Valve Operator, Bronze Body, Lead-Free Lead-Free/Contains Lead, 33 to 180 deg F, 5-1/8 in L
| Body Material | : | Bronze |
| Connection Type | : | FNPT |
| Dimensions | : | 5-1/8 in L |
| Lead-Free/Contains Lead | : | Lead-Free |
| Media | : | Water |
| Nominal Size | : | 2 in |
| Operator Type | : | Quarter Turn Valve |
| Pressure Rating | : | 175 psi |
| Series | : | LF007 |
| Temperature Rating | : | 33 to 180 deg F |
- Lead-free construction
- Modular compact design
- Replaceable seats and seat discs
- Top entry
