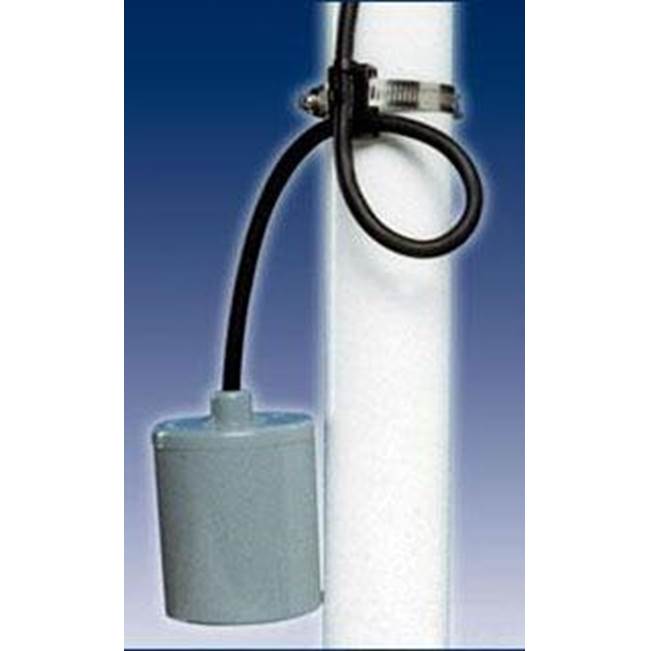

This mechanically-activated, wide-angle pump switch provides automatic control of pumps in water, sewage applications, It can be wired to work in either pump down (normally open) or pump up (normally closed) applications. The SJE PumpMaster® SPDT pump switch is not sensitive to rotation or turbulence allowing it to be used in both calm and turbulent applications.
SJE RHOMBUS™ Mechanically Activated Wide Angle Pump Switch Without Plug, 13/85 A, 120/230 V, Contact Configuration: SPDT, 1, 50/60 Hz, HP Rating: 1/2, 1 hp
| Amperage Rating | : | 13/85 A |
| Contact Configuration | : | SPDT |
| Frequency Rating | : | 50/60 Hz |
| HP Rating | : | 1/2, 1 hp |
| Phase | : | 1 |
| Voltage Rating | : | 120/230 V |
- Can be wired to work in either pump down (normally open) or pump up (normally closed) applications (single pole, double throw)
- Heavy-duty contacts
- Controls pumps up to 1/2 hp at 120 VAC and 1 hp at 230 VAC
- For direct wiring in 120 VAC or 230 VAC applications
- Adjustable pumping range of 7 to 36 in
- Includes standard mounting clamp and boxed packaging
- Flexible 16 ga, three-conductor (UL, CSA) SJOW, water-resistant (CPE) cable
- 3.05 in Dia x 3.56 in L high-impact, corrosion-resistant, PVC housing for use in sewage and water up to 140 deg F float
- Control switches accurately monitor liquid levels to activate pump control panels and alarms
