American Standard 6047111.002

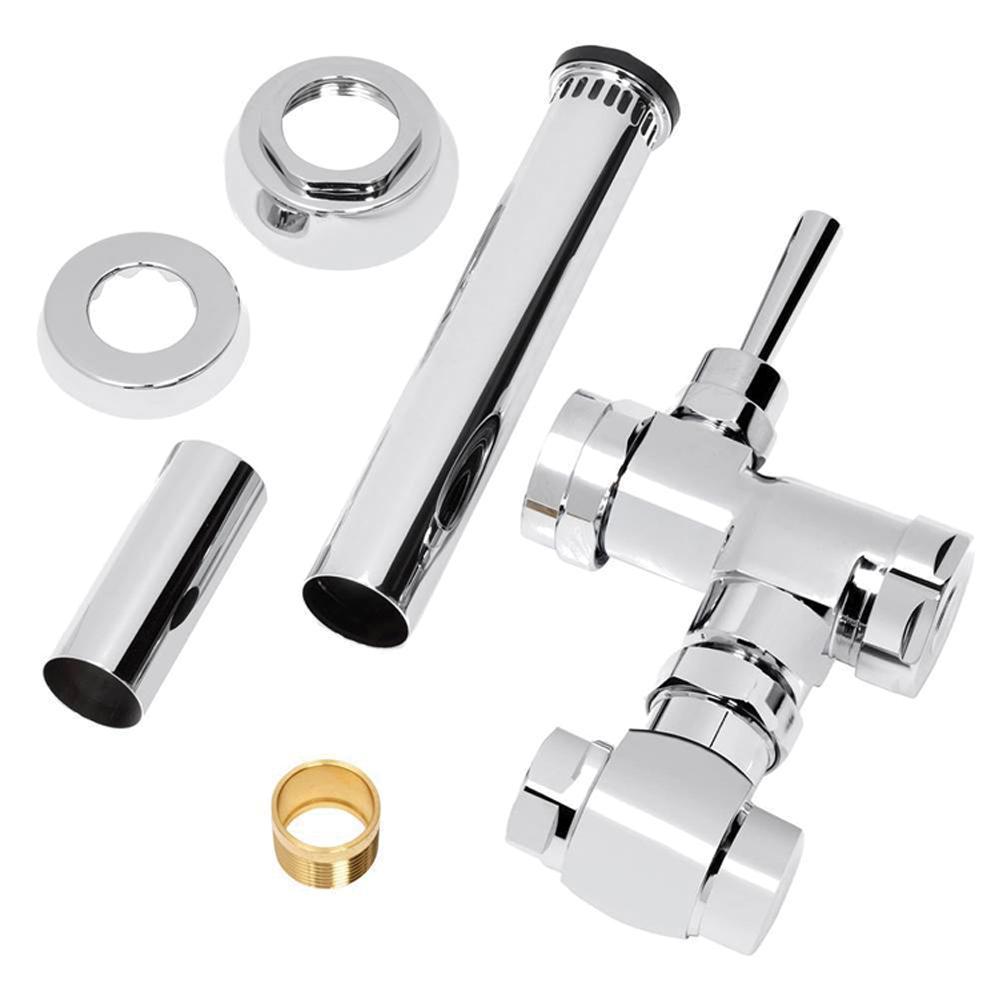

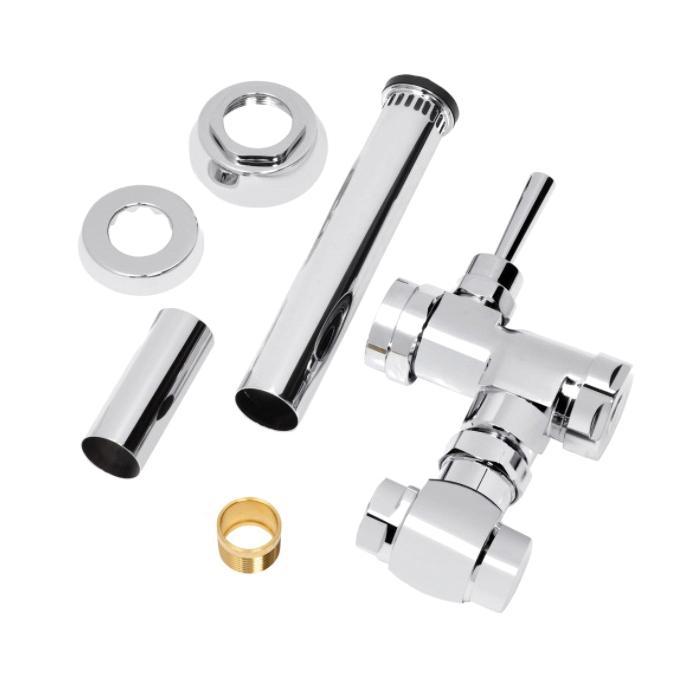

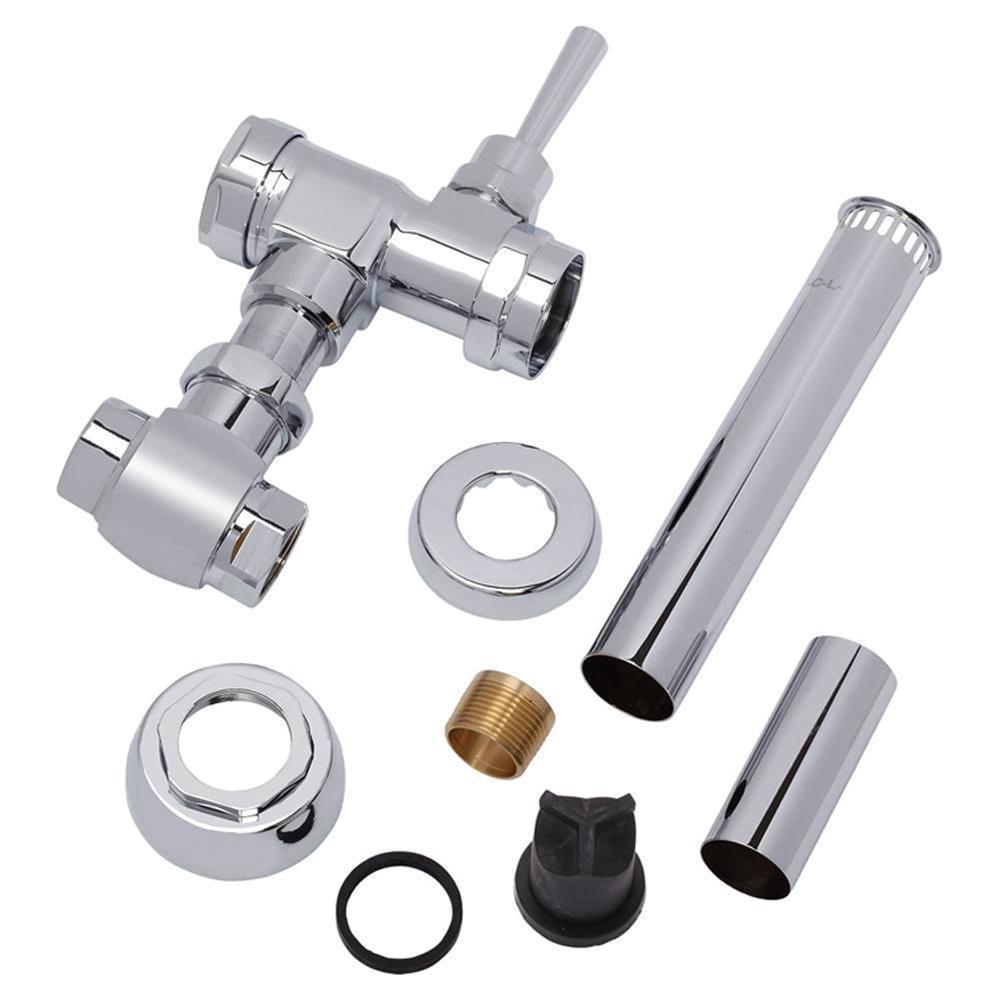

American Standard 6047111.002 Exposed Urinal Flush Valve, 3/4 in Nominal, IPS Connection, 20 psi, 80 psi Pressure

  • Manufacturer: LIXIL Corporation
  • Brand Name: American Standard
  • Part#: 2797453
  • MPN: 6047111.002
  • UPC: 012611512834
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading

This high efficiency 1.1 gpf flush valve delivers 31.3% water savings when compared to standard 1.6 gpf toilet flush valves.

American Standard Exposed Urinal Flush Valve, Series: 6047, Model: 6047.111, Ultima™ Collection, IPS Connection, 3/4 in Nominal, 20 psi, 80 psi, 1.1 gpf Flush Rate, Brass Body, Wall Mounting, Chrome-Plated, 13-1/2 in H

Body Material      :      Brass
Collection      :      Ultima™
Connection Type      :      IPS
Dimensions      :      13-1/2 in H
Finish      :      Chrome-Plated
Flush Rate      :      1.1 gpf
Model      :      6047.111
Mounting Type      :      Wall
Nominal Size      :      3/4 in
Pressure Rating      :      20 psi, 80 psi
Series      :      6047 Series
  • Exclusive DynaClean® self-cleaning wiper spring technology
  • Integral wiper spring cleans refill orifice with every flush to help prevent valve run-on
  • ADA compliant non-hold open handle provides automatic shut-off after every flush
  • Piston operation delivers superior flush accuracy and repeatability
  • High back pressure vacuum breaker helps prevent dripping
  • Can be install left or right handed
  • No external volume adjustment
  • 11-1/2 in (292 mm) rough-in
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/American_Standard_6047111_002_Instruction_Installation_Manual.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/American_Standard_6047111_002_Specification_Sheet.pdf
