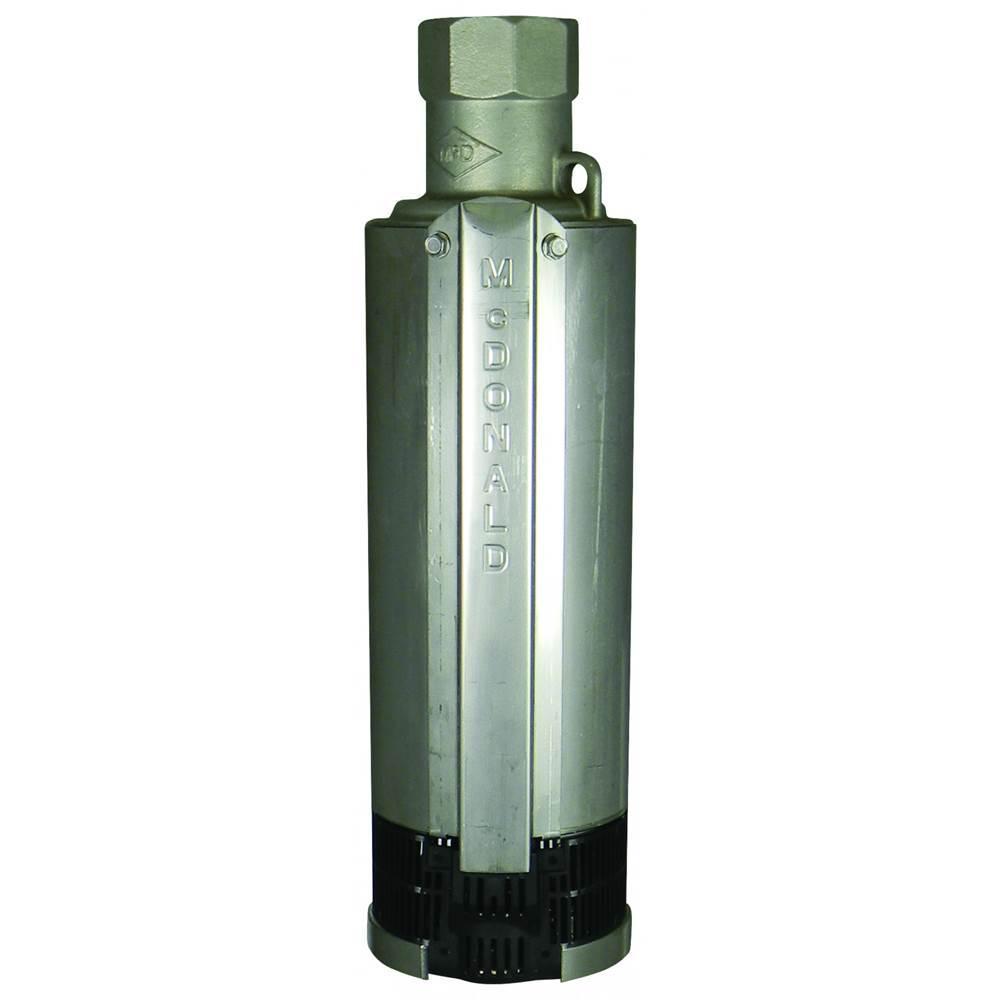

Mc.Donald® Pump End, 3 hp Power, 451 psi, 10 gpm Flow Rate, Stainless Steel, 3-3/4 in Dia, Suitable For Use With: 23000 K Series Submersible Pump System
| Dimensions | : | 3-3/4 in Dia |
| Flow Rate | : | 10 gpm |
| Material | : | Stainless Steel |
| Power Rating | : | 3 hp |
| Pressure Rating | : | 451 psi |
| Suitable For Use With | : | 23000 K Series Submersible Pump System |
- 300 Series stainless steel, corrosion-resistant, easy wrench design, built-in safety eye, threads into shell discharge
- A.Y. McDonald's diamond design check valve, easy out design for maximum convenience and versatility check valve
- Rubber surrounding the stainless steel shaft provides superior wear resistance against the harshest conditions while maintaining shaft alignment, self-lubricating for long life discharge bearing
- Stainless steel cable guard protects motor leads, angled top helps keep leads stationary when lowering and raising submersible pump cable guard
- Polycarbonate durable corrosion/abrasion, designed for efficient performance and superior sand handling capability diffuser
- A.Y. McDonald uses it's time proven captured stack design, the captured stack design incorporates sand notches into the diffusers, which is proven to keep sand flowing thru the stack over time
- Glass bead acetal, this smooth and flexible material is precision engineered for maximum performance impeller
- Heavy stainless steel shell threaded at both ends for easy field service
- Stainless steel hex shaft 7/16 to 7/16 in 300 Series stainless steel, hex design for positive impeller drive, each shaft individually measured for straightness with strict tolerances, achieves maximum corrosion resistance for longer life
- Once assembled, each pump is individually tested to assure performance within design specifications, each pump is stamped with the tester's signature making to assure quality control
Specification Sheet
