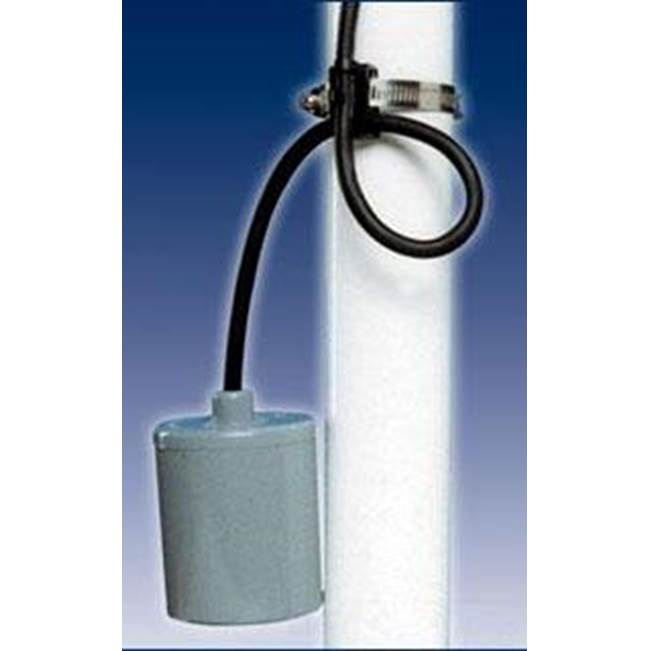

Pump switches provide automatic pump control. The SJE PumpMaster® Plus pump switch is designed to directly control pumps up to 2 hp at 230 VAC in water and sewage applications. The SJE PumpMaster® Plus pump switch is not sensitive to rotation or turbulence, allowing it to be used in both calm and turbulent applications.
SJE RHOMBUS™ Mechanically Activated Wide Angle Pump Switch, 15/85 A, 230 V, Contact Configuration: NO, 1, 50/60 Hz, HP Rating: 2 hp
| Amperage Rating | : | 15/85 A |
| Contact Configuration | : | NO |
| Frequency Rating | : | 50/60 Hz |
| HP Rating | : | 2 hp |
| Phase | : | 1 |
| Voltage Rating | : | 230 V |
- Heavy-duty contacts
- Adjustable pumping range of 7 to 36 in
- Flexible 14 ga, two-conductor (UL, CSA) SJOW, water-resistant (CPE) cable
- 3.05 in Dia x 3.56 in L high-impact, corrosion-resistant, PVC housing for use in sewage and water up to 140 deg F float
- Pump down is normally open contacts
