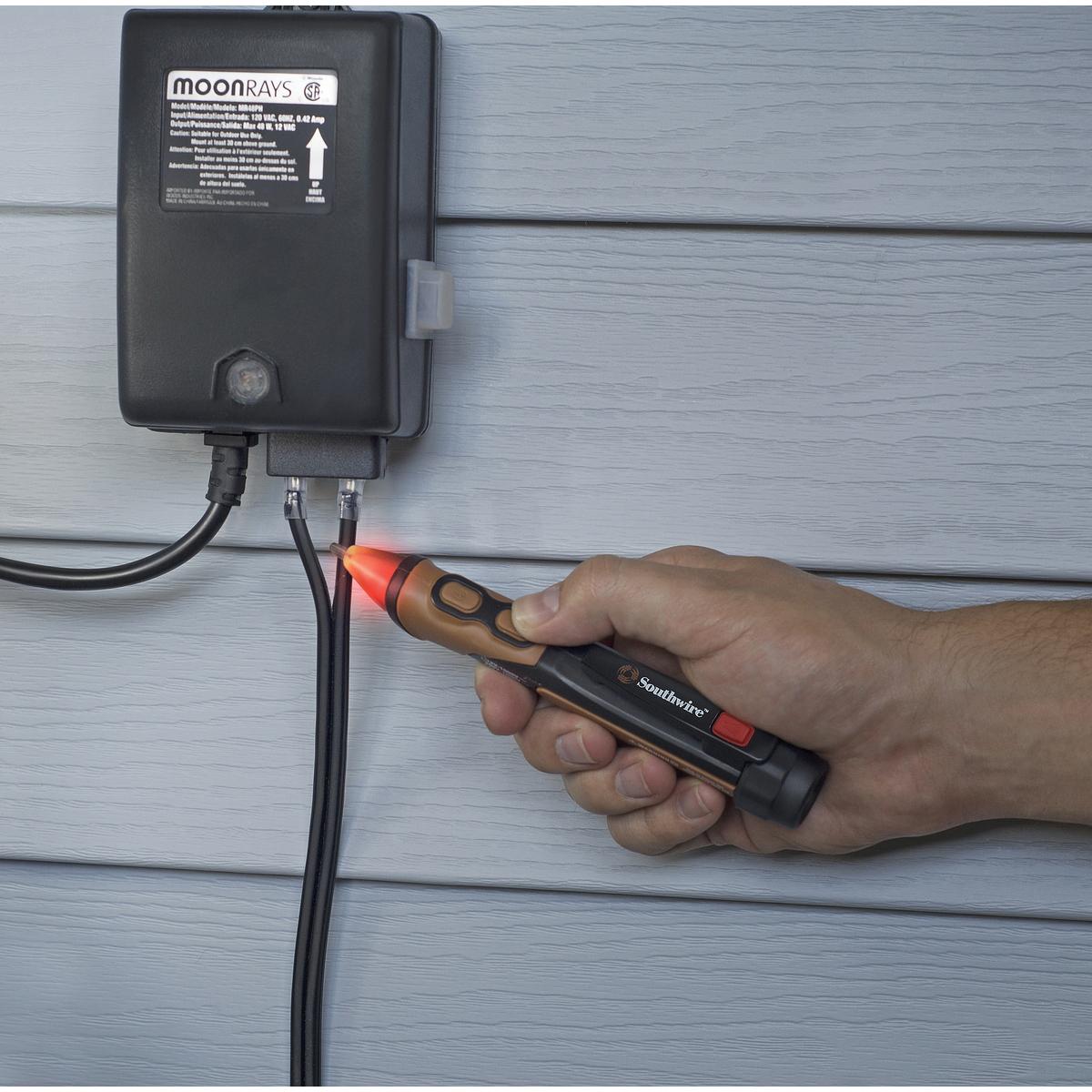

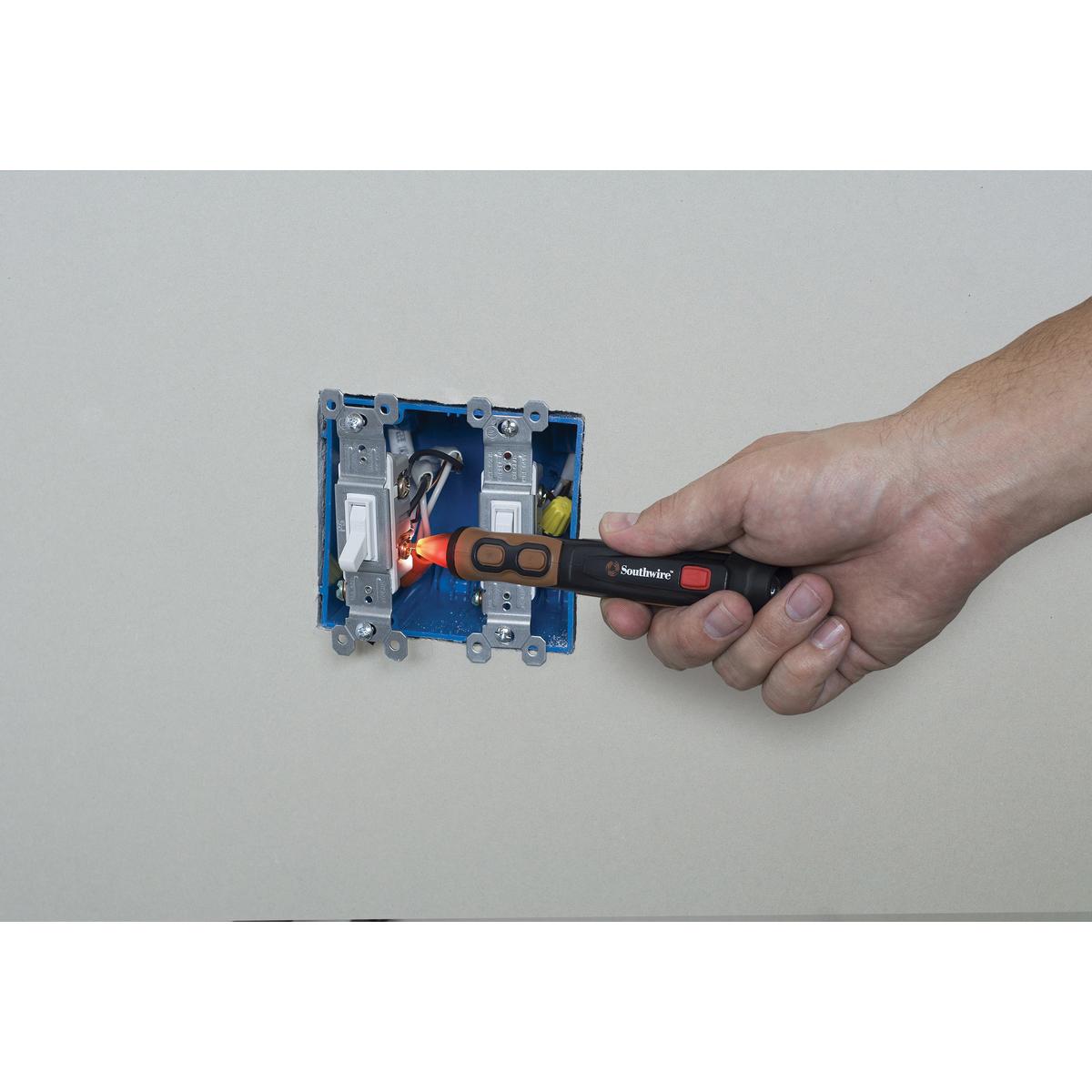

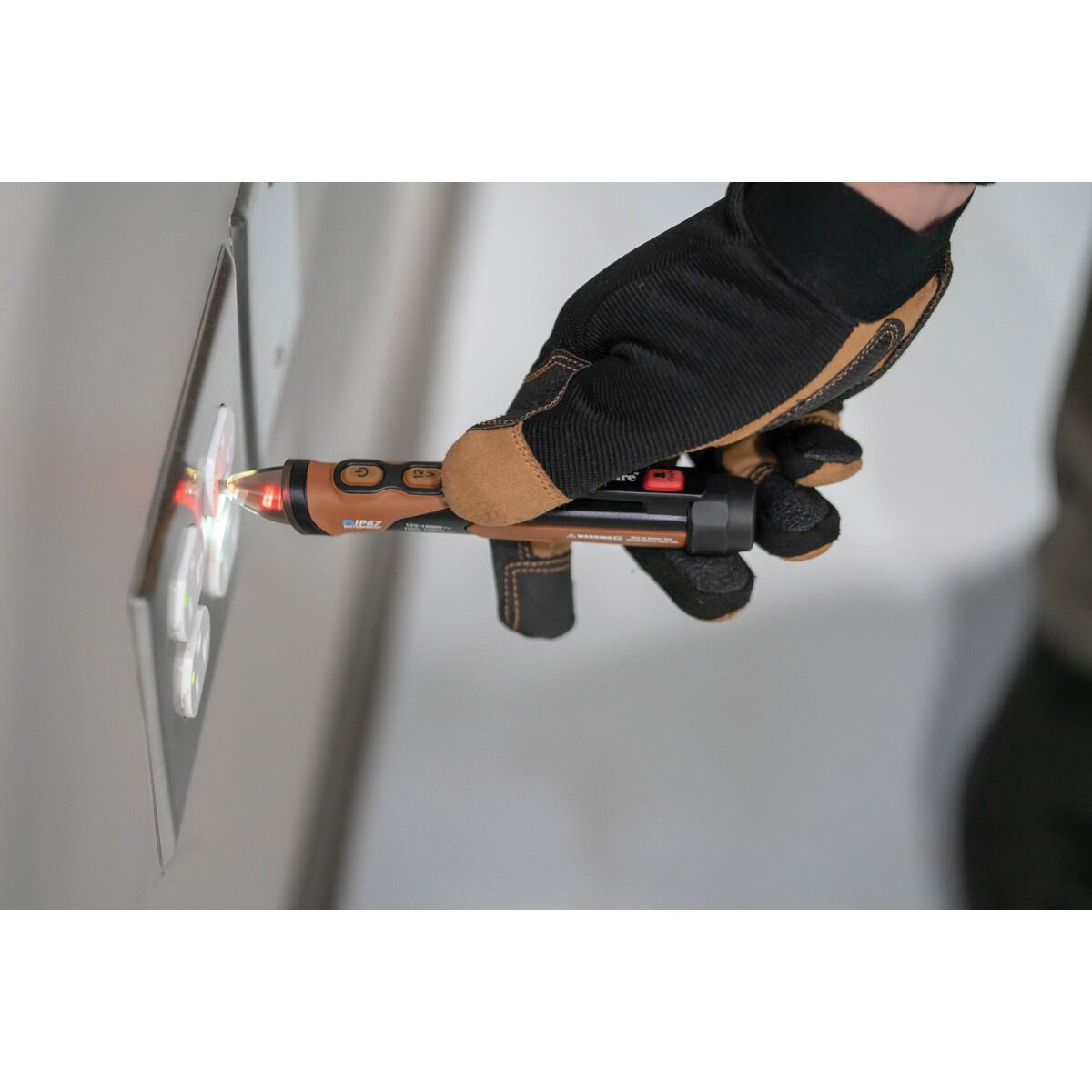

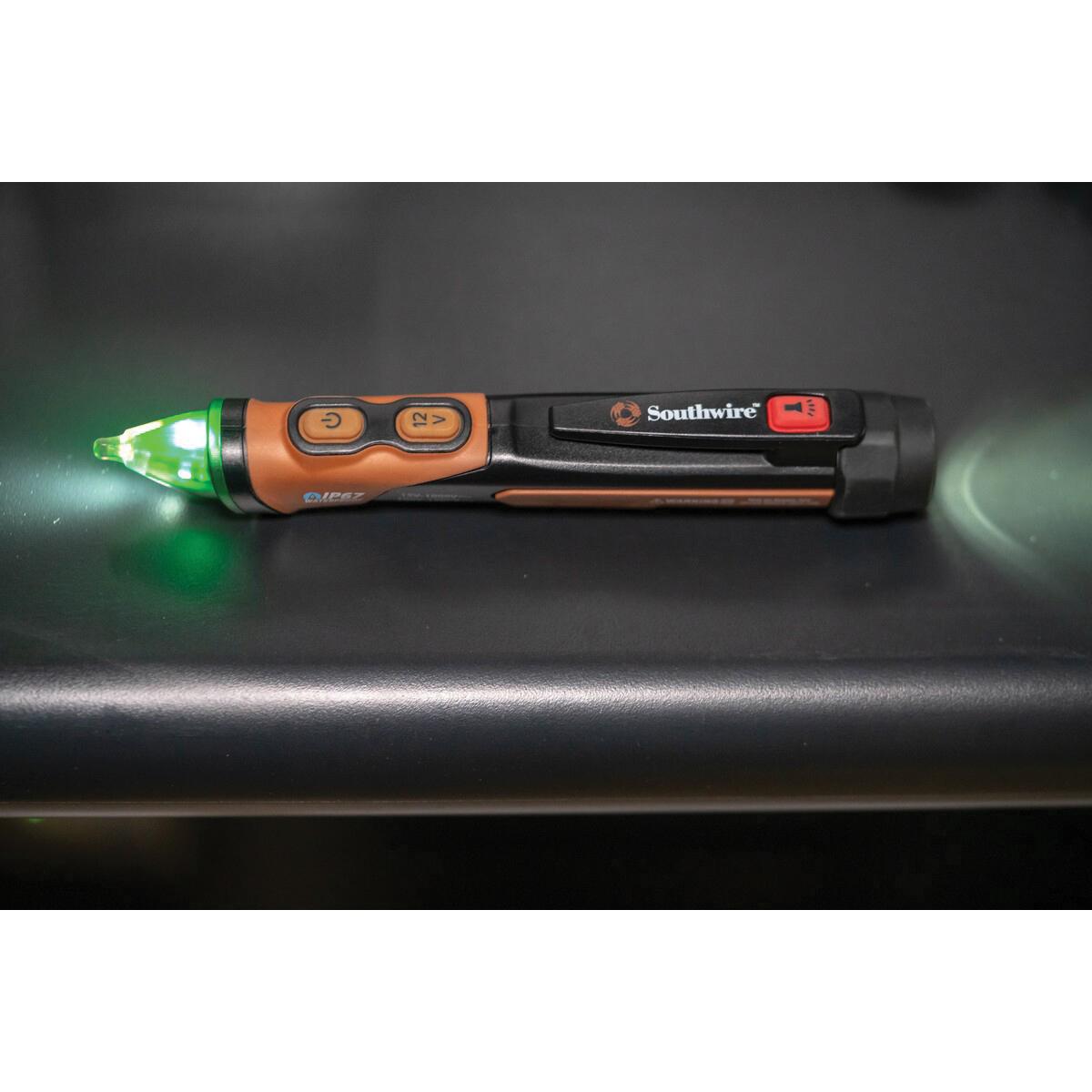

Southwire 40150N is an advanced dual range non-contact AC voltage detector with a convenient work light. It features audible and visual indication of AC voltage on two ranges, 12 to 1000 V and 100 to 1000 V. Bi-color LED verifies tester is on and range selected, red LED and beeper indicates voltage is detected. The yellow LED light indicates that the tic tester is in low-voltage mode. The non-contact voltage tester features a rugged IP67 waterproof and dust tight housing and features a built-in forward and rear facing flashlight for user convenience in dim lighting. With electricity safety is paramount so it features CAT IV rating at 1000 V and is UL Listed. This unit is not designed for use with Tamper-Resistant (TR) outlets. This unit is built to help electricians have a great indicator of live power. It features a pocket clip for easy access and storage and the low power feature will indicate when the batteries need to be changed. Testing a wire is very easy with this unit.
Southwire® Advanced Dual Range Non-Contact Voltage Detector, 12 to 1000 V, 50/60 Hz, Audible, Visual Indicator, CAT IV 1000 V, 6.501 in L x 0.99 in W, Additional Information: AAA Battery Size
| Additional Information | : | AAA Battery Size |
| Dimensions | : | 6.501 in L x 0.99 in W |
| Frequency Rating | : | 50/60 Hz |
| Indicator Type | : | Audible, Visual |
| Safety Rating | : | CAT IV 1000 V |
| Voltage Rating | : | 12 to 1000 V |
- Southwire tools and equipment 40160N advanced dual range NCV 12 to 1000 VAC, voltage tester pen with flashlight
- Pen style non-contact electrical tester for easy detection of AC voltage
- Bi-color LED verifies tester is on and range selected, red LED and beeper indicate voltage is detected
- Rugged IP67 waterproof and dust tight housing
Instruction/Installation Manual
