Series 77F-DI-125 cast iron, flanged, wye-pattern strainers feature a wye-pattern, class B cast iron body with class 125 flanged connections, cast iron blow down plug, stainless steel screen, bolted and tapped iron retainer cap with graphite gasket and iron blow down plug. Maximum pressure (non-shock) 200 psi at 210 deg F WOG, 125 psi at 353 deg F WSP. 14 and 16 in rated at 150 psi at 150 deg F.

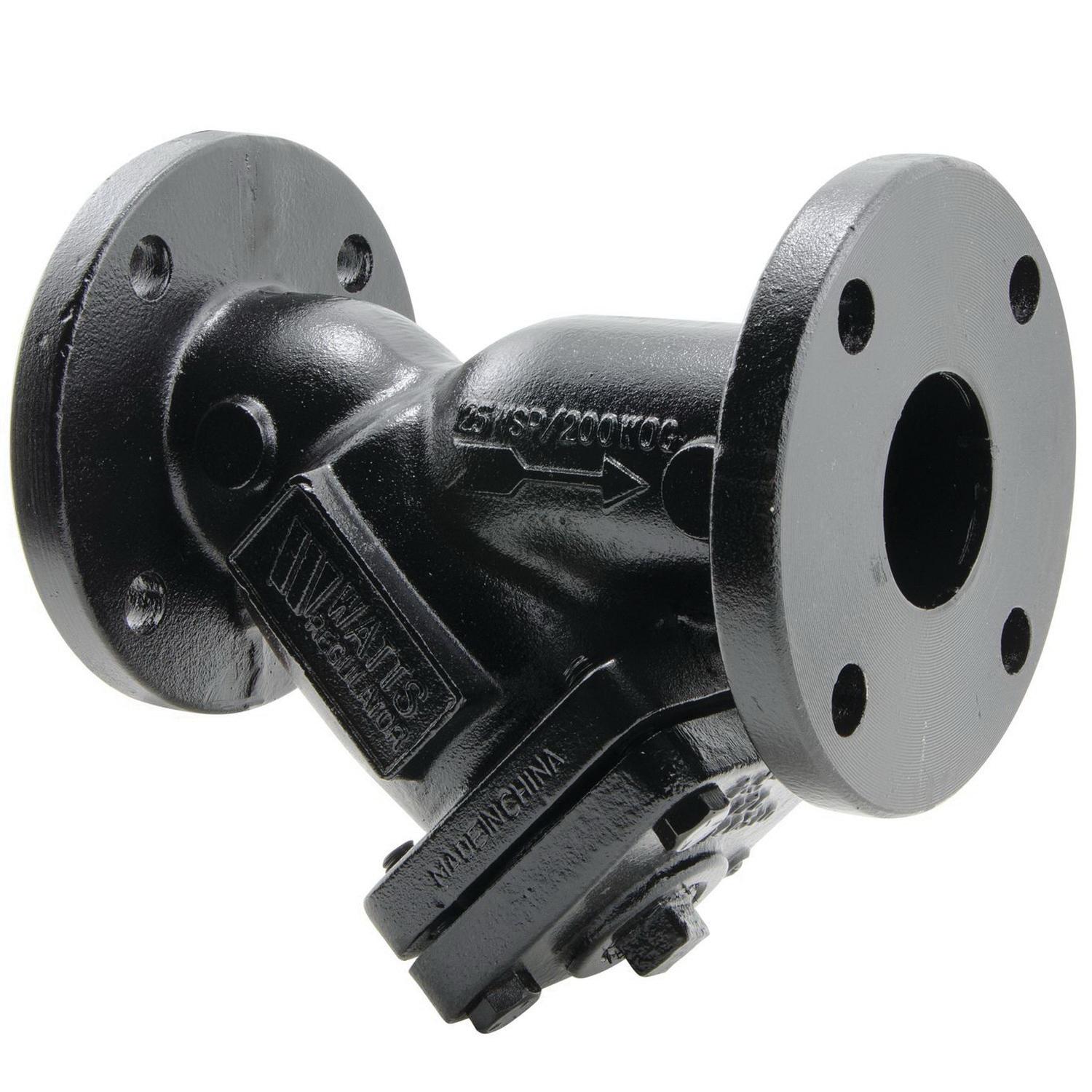

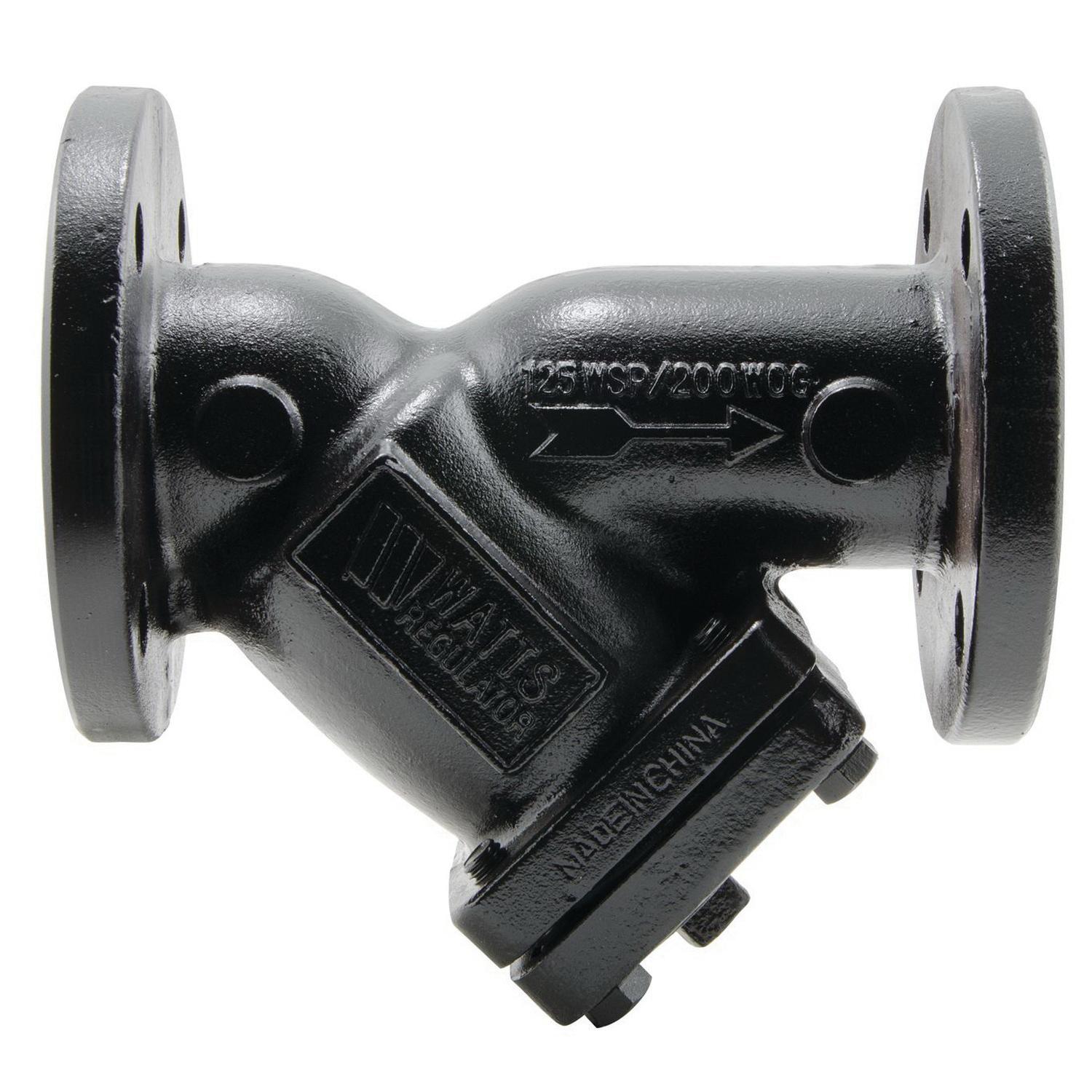

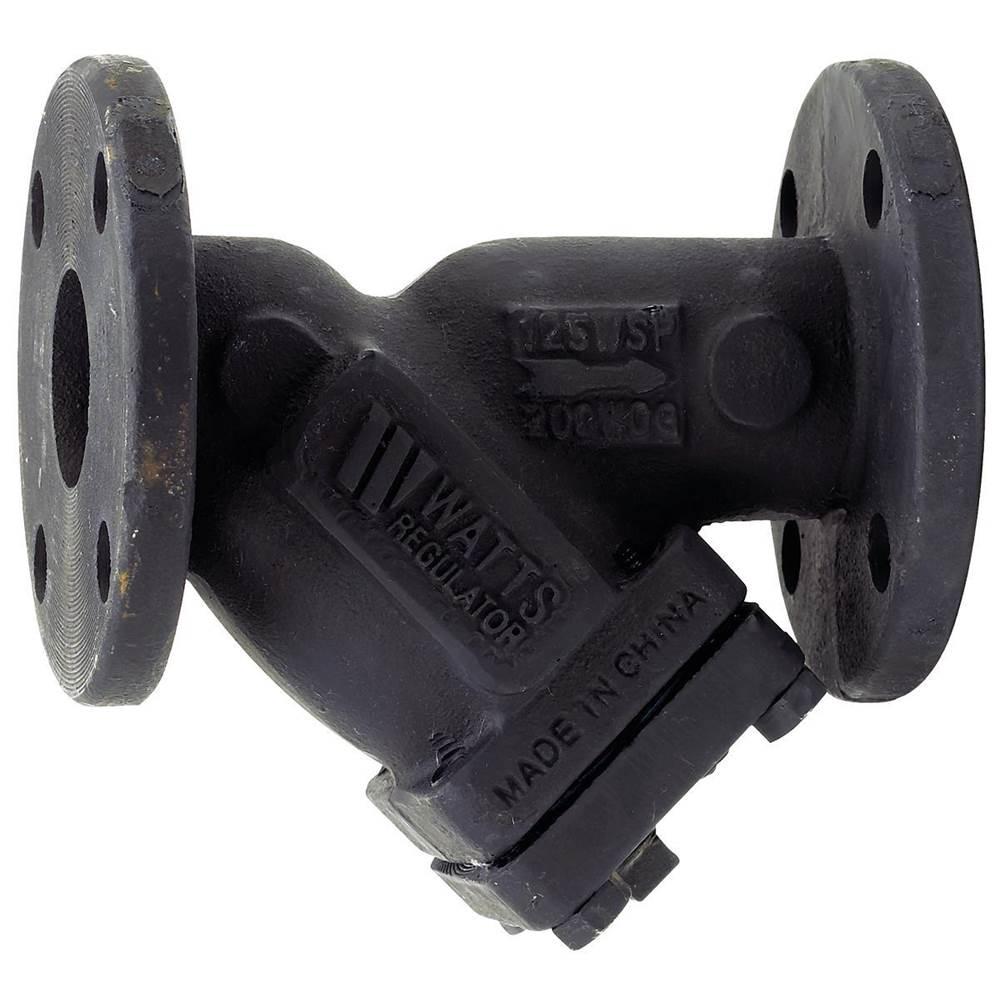

WATTS® Y-Strainer, Series: 77F-DI-125, 3 in Nominal, Flanged Connection, 1/16 in Perforation, Cast Iron Housing, 10-1/8 in L, 125 to 200 psi, 210 to 353 deg F, 304 Stainless Steel Screen, Graphite Gasket
| Additional Information | : | 304 Stainless Steel Screen, Graphite Gasket |
| Connection Type | : | Flanged |
| Dimensions | : | 10-1/8 in L |
| Housing Material | : | Iron |
| Nominal Size | : | 3 in |
| Perforation Size | : | 1/16 in |
| Pressure Rating | : | 125 to 200 psi |
| Series | : | 77F-DI-125 Series |
| Temperature Rating | : | 210 to 353 deg F |
- Wye-pattern
- Cast iron body
- 304 stainless steel perforated screens
- Flanged
