Chicago Fittings XR-38M-32-36-ZDC

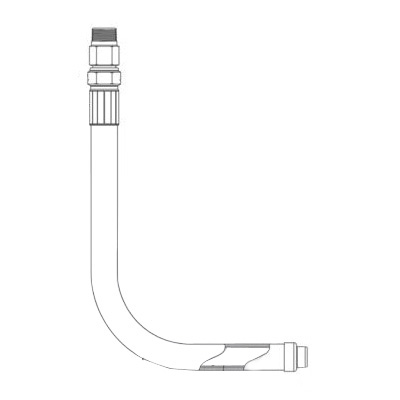

Chicago Fittings X-Riser® Flexible Anodeless Riser, 2 in Connection, IPS x MPT Connection, 125 psig, SDR 11 Schedule Rating, 0.21 in Wall Thickness, ASTM D2513/F1948-12/F1973 Material Standard, Steel, 36 in L

• No underground joints one solid service line from point-to-point with above ground terminations
• No chamfering a simple clean cut is all that is required
• Bi-directional seal assembly can't be installed improperly where some competitors multiples internal components must have proper order and orientation to function properly
• No torque requirements all X-Risers incorporate the "bottoming" or "positive stop" design
• Simple design can be installed with one flat jaw wrench extending the life of protective coatings commonly flawed or removed by pipe wrenches
• Integral barbed stiffeners are permanent (not loose) for additional pull out-resistance
• Chicago Fittings products are CNC machined from solid bar stock (not castings) providing high quality product with the most precise threads and design flexibility
• Simply tighten the compression nut until it is metal to metal and you are done

• Catalog https://cx1content.unilogcorp.com/cx1/view/api/asset/v1/dam/assets/ITEM/DOC/file/267/Chicago_Fittings_XR_13B_8_36_ZDC_Catalog.pdf
