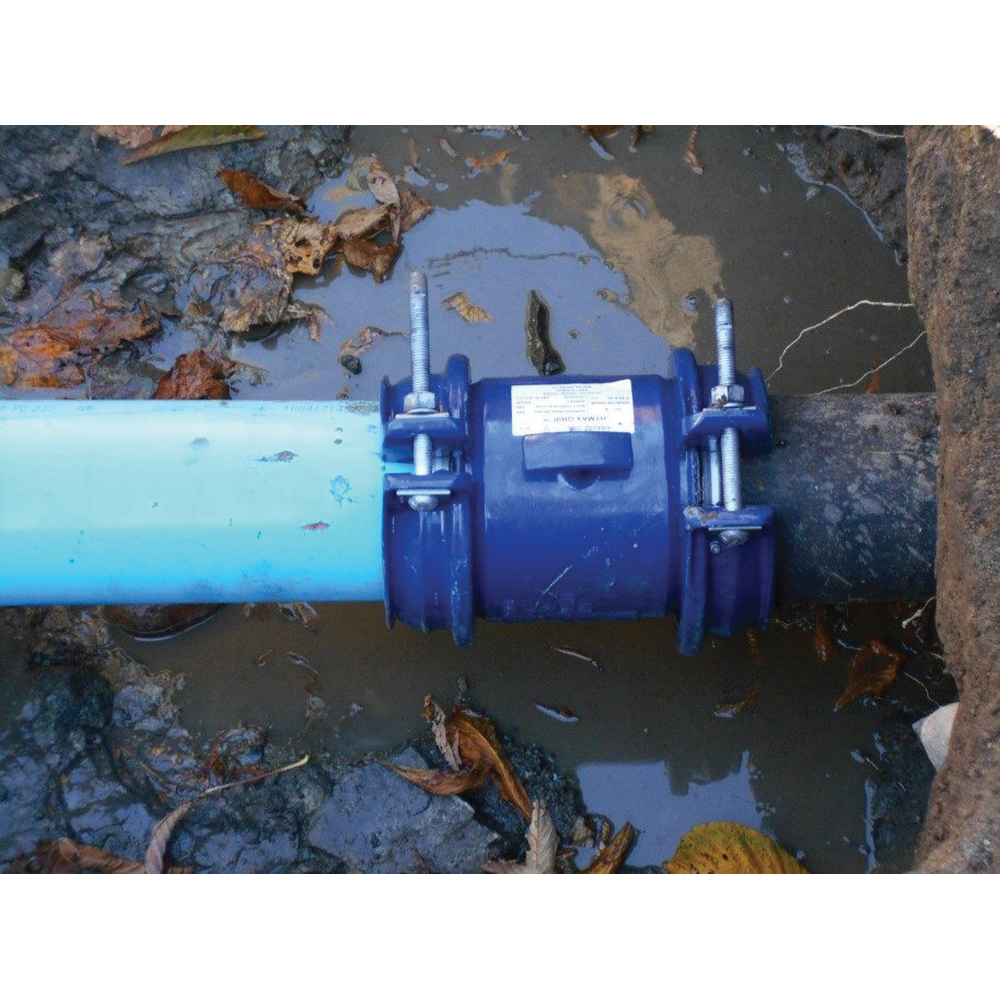

HYMAX GRIP® joins and restrains a wide selection of pipes of different types and diameters, easily and reliably. Due to its patented design, it allows the joining of pipes of the same or different materials and diameters and preventing axial pipe movement. This market-leading restraint coupling family, invented and manufactured by Hymax, features a unique radial gripping system suitable for most metal and plastic pipes, combining a top-facing two-bolt grip coupling that enables quick and easy installation. The HYMAX GRIP®'s patented gasket allows dynamic deflection of the pipe of up to 4 deg per side, reducing future pipe cracks and breaks. The GRIP is made of highly durable ductile iron and can withstand a working temperature of up to 125 deg F, truly the perfect product for a fast and reliable restrained connection.
HYMAX® Coupling Restraint, 6 in Pipe, 12.8 in Length, Ductile Iron, Fusion Bonded Epoxy-Coated, 232 psi, -20 to 125 deg F
| Finish | : | Epoxy-Coated |
| Length | : | 12.8 in |
| Material | : | Iron |
| Pipe Size | : | 6 in |
| Pressure Rating | : | 232 psi |
| Temperature Rating | : | -20 to 125 deg F |
- Joins and restrains a wide range of piping types and diameters
- Unique radial gripping system prevents pipe motion
- Universal gripping teeth fit metal and plastic pipes
- Ready-to-use, stab-fit design
- Allows 4 deg dynamic deflection per end, reducing future damage
- Patented hydraulically assisted gasket with two stage sealing
- Standard pressure grip with EPDM gasket, fasteners AISI 304 stainless steel
