ARC Shower Base, Collection: TrueDEK® Classic, 55-1/8 in L, 35-1/2 in W, 6-1/4 in Dia Drain Hole, Fiberglass Reinforced Plastic, Blue, Suitable For Use With: TrueDEK® Shower Systems
| Collection | : | TrueDEK® Classic |
| Color | : | Blue |
| Drain Hole Diameter | : | 6-1/4 in |
| Length | : | 55-1/8 in |
| Material | : | Fiberglass Reinforced Plastic |
| Suitable For Use With | : | TrueDEK® Shower Systems |
| Width | : | 35-1/2 in |
- Pre-fabricated, tileable, structural, pre-sloped shower receptor, cover with decorative tile, stone or weldable resilient flooring
- Spans 16 in o.c. joist systems
- Edges are 7/8 in THK
- Drain hole diameter is 6-1/4 in
- Four gradient planes
- Gradients are 2% per foot or greater, varies due to length of pitch
- Off-center drain hole

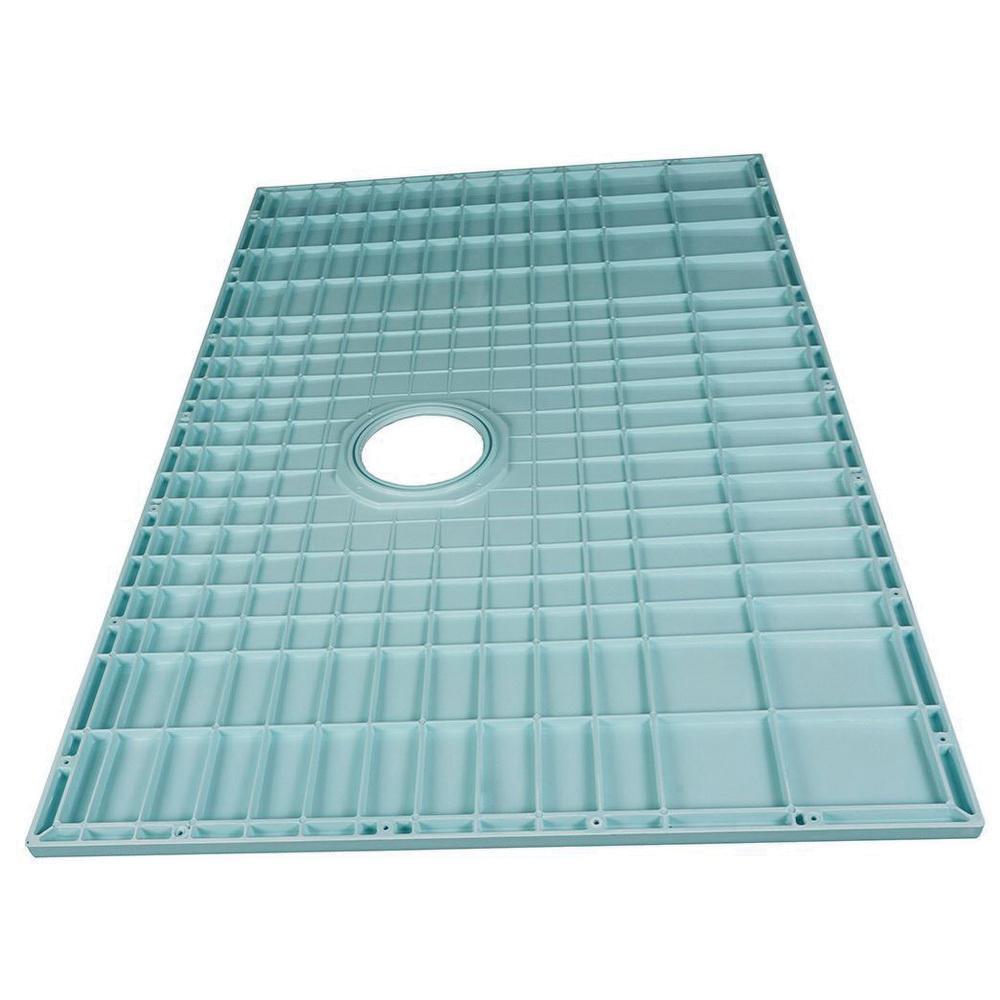

- Underside of foundation is ribbed for strength while reducing weight
- Perimeter has 1-3/4 in W leveling rim with pre-bored, countersunk pilot holes
- Made from 100% recyclable materials
