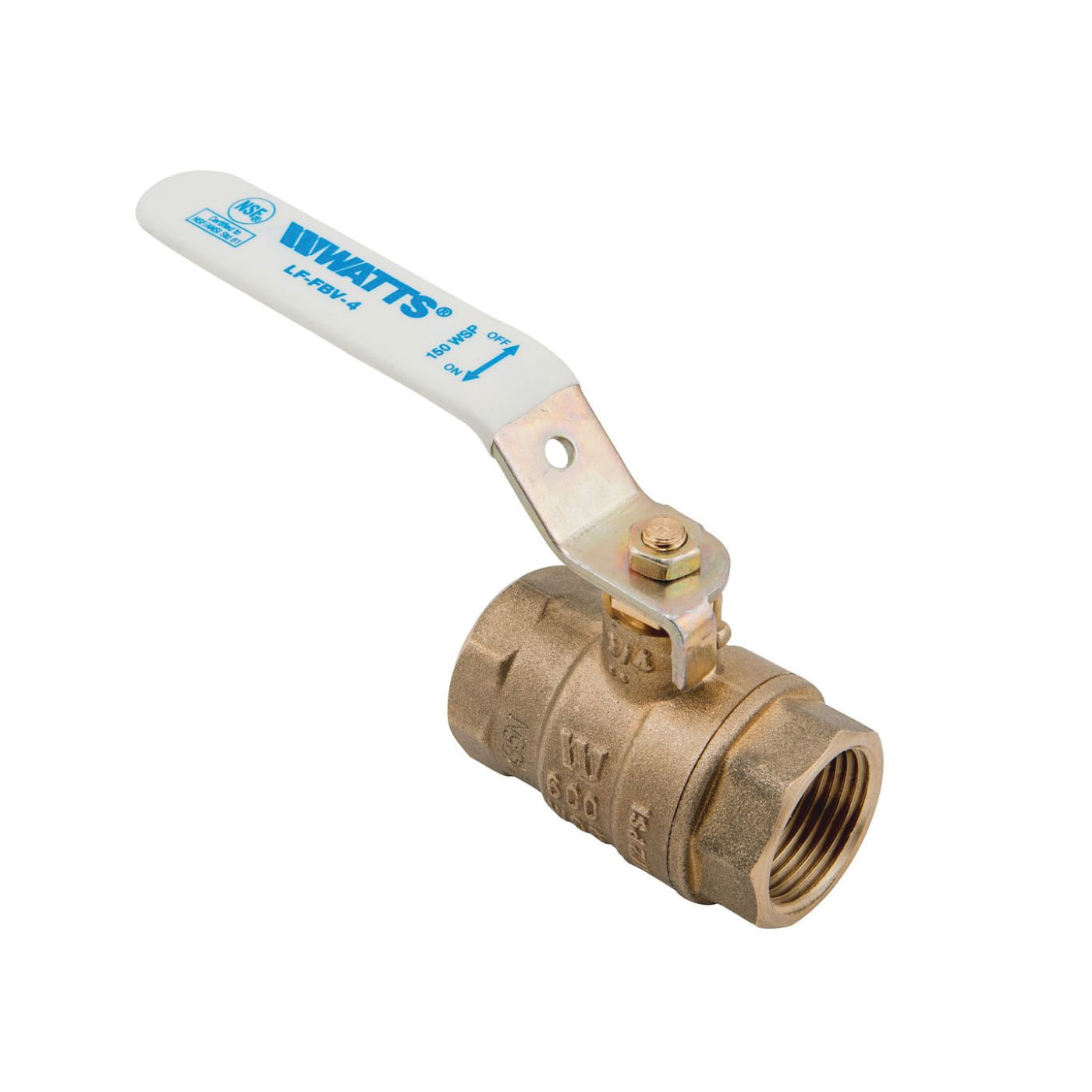

This 1 in two piece full port lead-free ball valve is used in commercial and industrial applications for a full range of liquids and gases. It features a lead-free brass body with solder end connections, bottom loaded blowout-proof stem, virgin PTFE seat, thrust washer, and adjustable stem packing seal, chrome plated lead-free brass ball, lead-free brass adapter and steel handle.
WATTS® 2-Piece Ball Valve, Series: LFFBV-4, 1 in Nominal, Connection Type: Threaded, Full Port, 600 psi WOG, 150 psi WSP, Pressure Class: Class 600, Water Media, 2-13/16 in L Inlet to Outlet, 2-7/16 in Top to Inlet Center, Handle Operator, Brass Body, Virgin PTFE Seat, Machined Brass Stem, Fluorocarbon Elastomer Seal, Zinc Carbon Steel with Vinyl Insulator Handle, Brass Ball, Lead-Free/Contains Lead: Lead-Free, -40 to 400 deg F, 2-13/16 in L
| Ball Material | : | Brass |
| Body Material | : | Brass |
| Connection Type | : | Threaded |
| Dimensions | : | 2-13/16 in L |
| Handle Material | : | Zinc Carbon Steel with Vinyl Insulator |
| Inlet to Outlet Length | : | 2-13/16 in |
| Lead-Free/Contains Lead | : | Lead-Free |
| Media | : | Water |
| Nominal Size | : | 1 in |
| Operator Type | : | Handle |
| Port Type | : | Full |
| Pressure Class | : | Class 600 |
| Pressure Rating | : | 600 psi WOG, 150 psi WSP |
| Seal Material | : | Fluorocarbon Elastomer |
| Seat Material | : | Virgin PTFE |
| Series | : | LFFBV-4 |
| Stem Material | : | Machined Brass |
| Temperature Rating | : | -40 to 400 deg F |
| Top to Inlet Center | : | 2-7/16 in |
- Lead-free construction
- Bottom loaded blowout-proof stem
Specification Sheet
