BrassCraft® OR12X C 2696461
  1. pin-int

BrassCraft® OR12X C

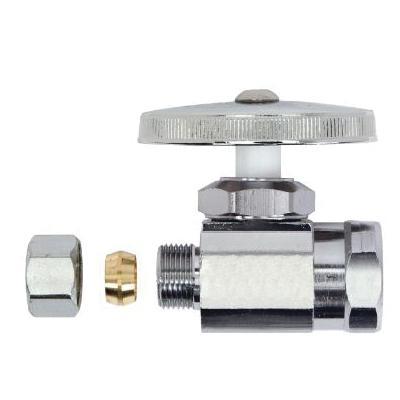

BrassCraft® OR12X C Stop Valve, 1/2 x 3/8 in Nominal, FIP x OD Compression Connection, 125 psi Pressure, Brass Body

  • Manufacturer: BrassCraft Manufacturing Company
  • Brand Name: BrassCraft®
  • Part#: 2696461
  • MPN: OR12X C
  • UPC: 026613138442
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading

BrassCraft® Stop Valve, 1/2 x 3/8 in Nominal, Connection Type: FIP x OD Compression, 125 psi, Brass Body, Die-Cast Zinc Handle, Chrome-Plated, 40 to 140 deg F, 2.07 in L Dimensions, Additional Information: Lead-Free

Additional Information      :      1.63 in Top to inlet Center
Body Material      :      Brass
Connection Type      :      FIP x Compression
Dimensions      :      2.07 in L
Domestic/Import      :      Domestic
Finish      :      Chrome-Plated
Handle Material      :      Polycarbonate/Zinc
Nominal Size      :      1/2 x 3/8 in
Pressure Rating      :      125 psi
Softgoods Material      :      Rubber
Temperature Rating      :      40 to 160 deg F
  • Oval knurled handle provides a secure grip and smooth on/off operation
  • Machined one piece brass body provides strength, durability and long-lasting performance
  • Easy-to-remove handle with screw attachment helps protect against accidental operation during rough-ins
  • Brass compression sleeve, nut and packing nut, rubber bib and packing washer, zinc-plated steel handle screw
  • pdfInstallation Manual https://assets.unilogcorp.com/267/ITEM/DOC/BrassCraft_G2CR19X_C_Instruction_Installation_Manual.pdf
