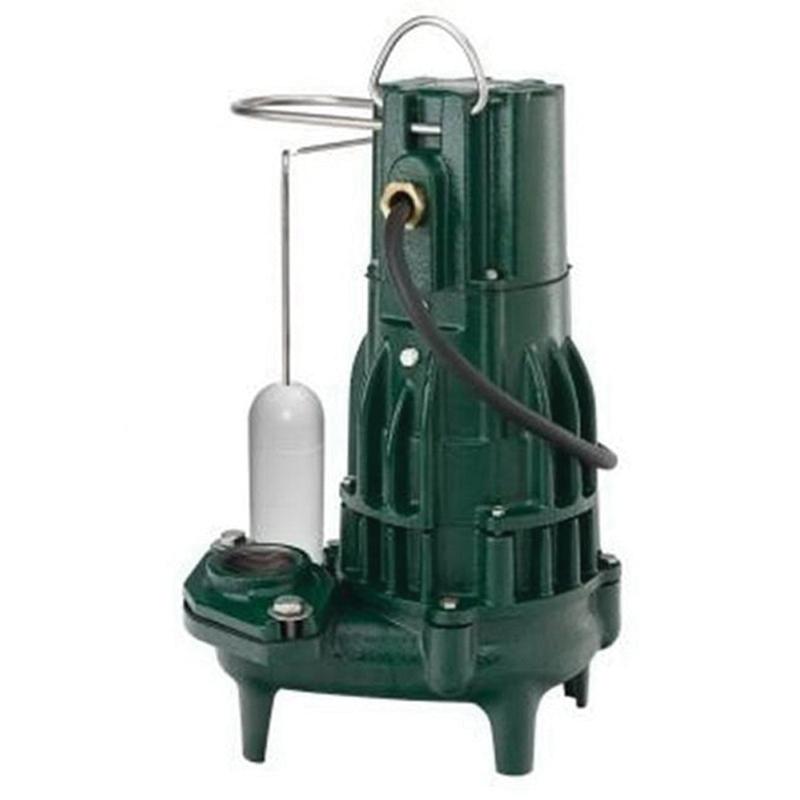

Zoeller® Submersible Sewage Pump, 290 Series, Model: M292, 115 VAC, 15 A, 60 Hz, 02-01-2022 hp, 3450 rpm Speed, 214 gpm Flow Rate, 1 ph, 2, 3 in Discharge, 20 ft L Cord, 87 gal Capacity, 75 ft Maximum Feet of Head, Class B Insulation Class, 130 deg F, Cast Iron Impeller, 14-3/4 in L x 11-3/4 in W x 21-1/4 in H, Cast Iron, Epoxy Powder-Coated
| Amperage Rating | : | 15 A |
| Capacity | : | 87 gal |
| Cord Length | : | 20 ft |
| Dimensions | : | 14-3/4 in L x 11-3/4 in W x 21-1/4 in H |
| Discharge Size | : | 2, 3 in |
| Finish | : | Epoxy Powder-Coated |
| Flow Rate | : | 214 gpm |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 2-1/2 hp |
| Impeller Material | : | Cast Iron |
| Insulation Class | : | Class B |
| Material | : | Cast Iron |
| Maximum Feet of Head | : | 75 ft |
| Model | : | M292 |
| Phase | : | 1 ph |
| Series | : | 290 Series |
| Speed Rating | : | 3450 rpm |
| Temperature Rating | : | 130 deg F |
| Voltage Rating | : | 115 VAC |
- Durable, cast iron constructed switch case, base, motor and pump housing
- No sheet metal parts to rust or corrode
- All cast iron class 30 30000# tensile strength
- Stainless steel screws, bolts, float rod, handle, guard, arm and seal assembly
- Oil-filled, hermetically-sealed, automatic reset thermal overload protected (1 ph) motor
- Corrosion-resistant, powder-coated epoxy finish
- Upper and lower ball bearing running in a bath of oil
- Neoprene square ring and gasket
- All models pass 2 in spherical solids
- 100% of units are computerized tested
