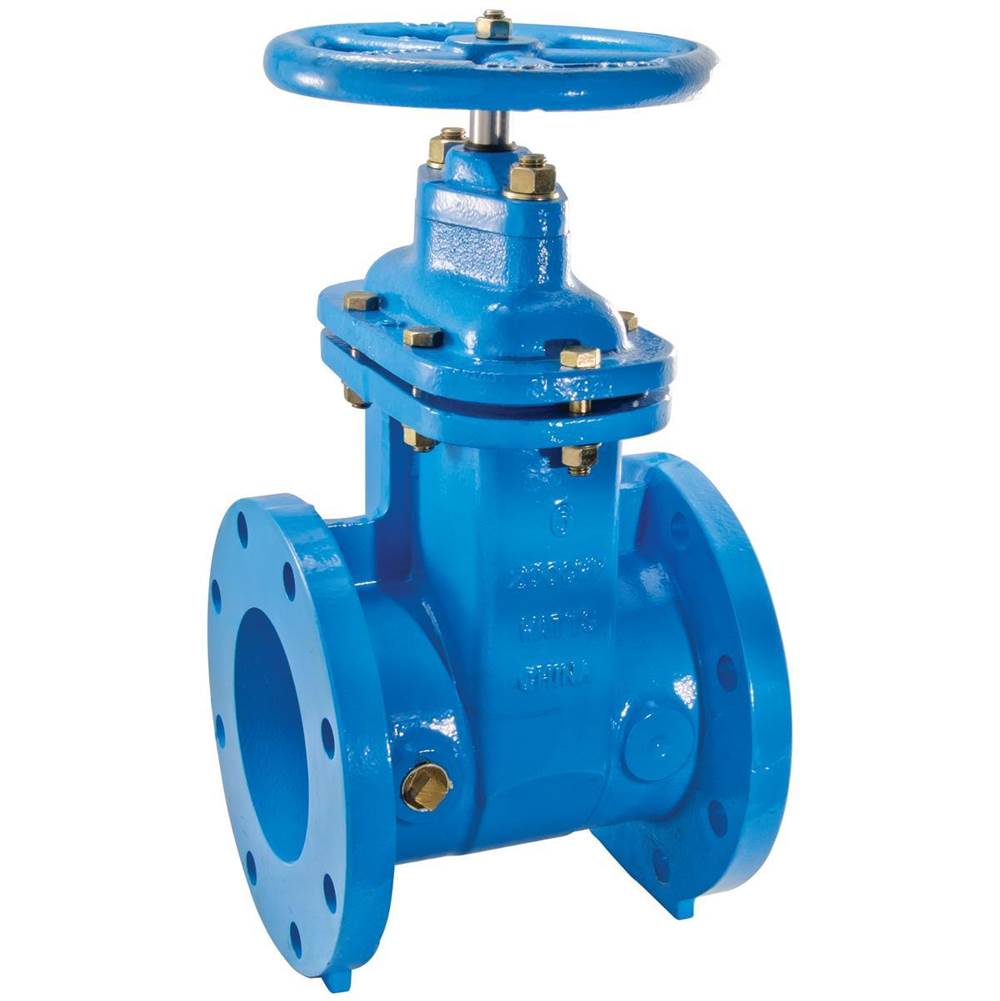

The 4 in non-rising stem resilient wedge flanged gate valve is designed for use in irrigation and water distribution services. It features an epoxy-coated cast iron body with ANSI B16.1 flanged connections, resilient wedge disc, cast iron bonnet, bronze non-rising stem and is operated by a cast iron hand wheel. The resilient wedge disc design offers both positive seating and resistance against high differential pressure.
WATTS® Resilient Wedge Gate Valve, Series: 405-NRS-RW, 4 in Nominal, Connection Type: Flanged, Full Port, 200 psi, Pressure Class: 125, Gas, Oil, Water Media, 12-1/2 in Top to Inlet Center, Cast Iron Body, Stainless Steel Stem, Rubber Seal, Cross Hand Wheel Operator, 140 deg F, Lead-Free/Contains Lead: Lead-Free, Epoxy-Coated, 9 in L x 8-13/16 in W x 12-1/2 in H
| Body Material | : | Cast Iron |
| Connection Type | : | Flanged |
| Dimensions | : | 9 in L x 8-13/16 in W x 12-1/2 in H |
| Finish | : | Epoxy-Coated |
| Lead-Free/Contains Lead | : | Lead-Free |
| Media | : | Gas, Oil, Water |
| Nominal Size | : | 4 in |
| Operator Type | : | Cross Hand Wheel |
| Port Type | : | Full |
| Pressure Class | : | 125 |
| Pressure Rating | : | 200 psi |
| Seal Material | : | Rubber |
| Series | : | 405-NRS-RW |
| Stem Material | : | Stainless Steel |
| Temperature Rating | : | 140 deg F |
| Top to Inlet Center | : | 12-1/2 in |
- Full-port flow, low head loss
- Non-rising stem
- Vulcanized encapsulated resilient wedge
- Easy in-line service
- Boss tapped and plugged
