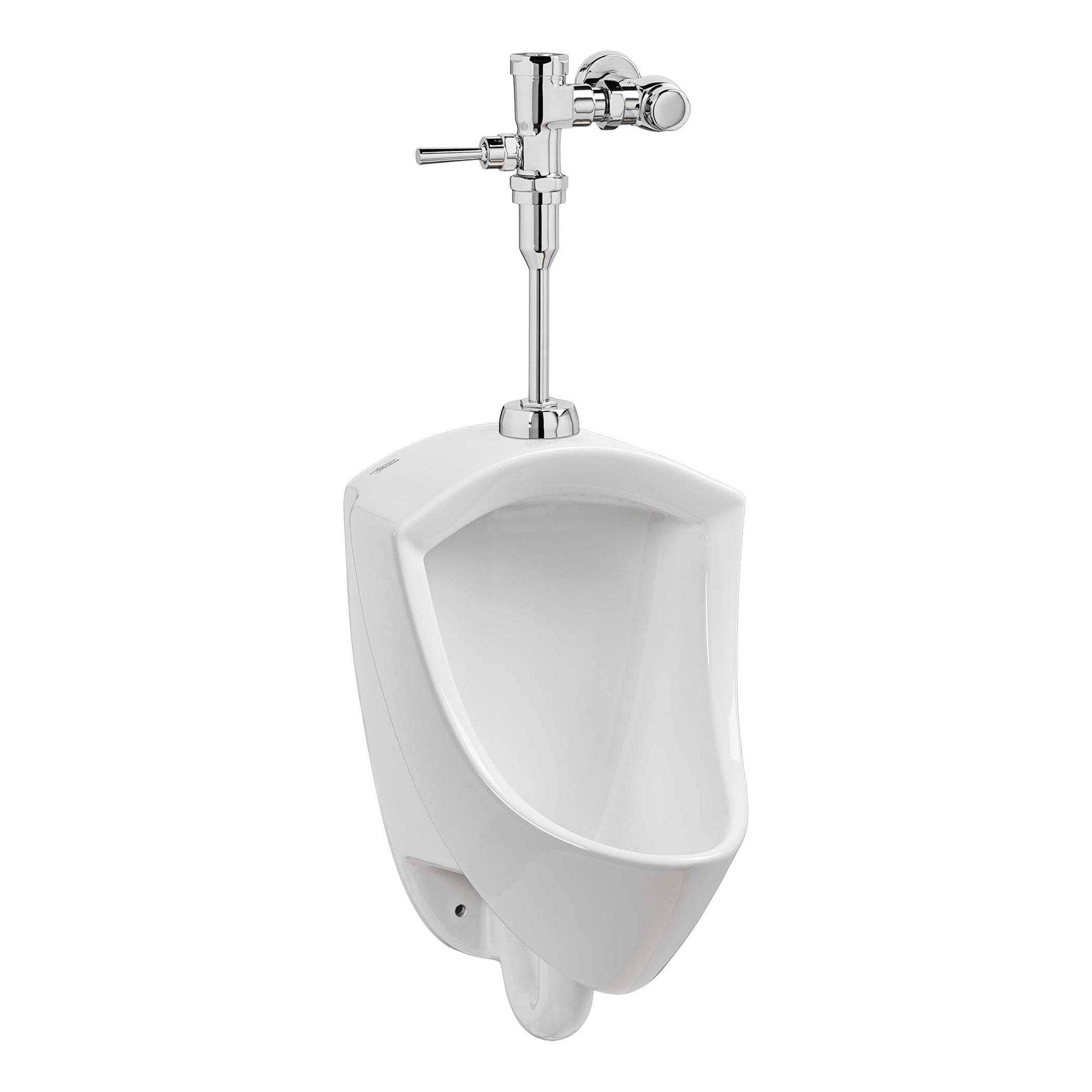

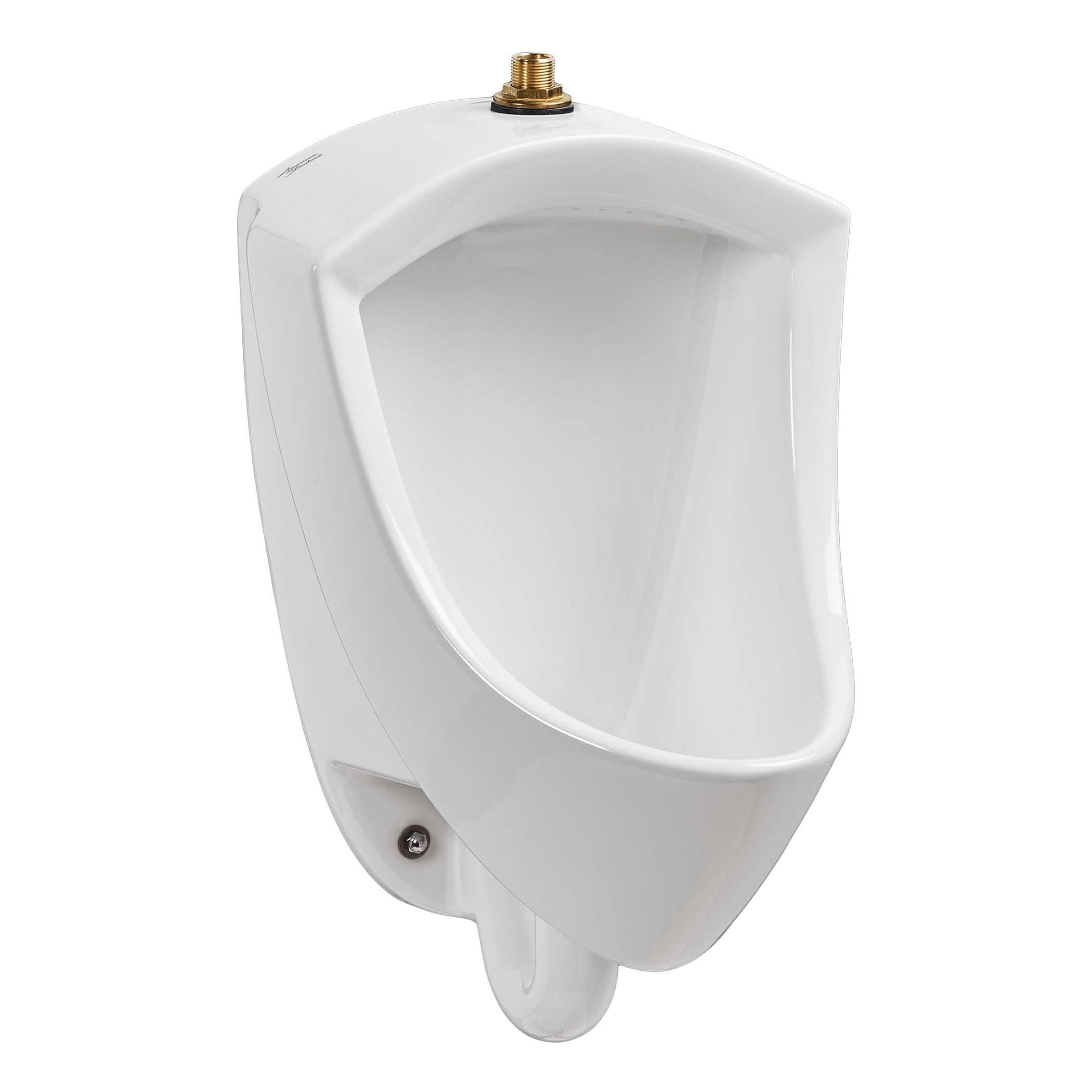

The Pintbrook® urinal from American Standard is a smart, high efficiency washdown urinal, operating in the range of 0.125 gpf to 0.50 gpf (0.47 Lpf/1.9 Lpf) to help save water. This optimized design is expertly crafted to provide superior splash protection. Features a 3/4 in inlet top spud and includes wall hangers for easy installation.
American Standard Urinal, Pintbrook® Collection, 0.47 to 1.9 Lpf Flush Rate, Top Spud Location, 3/4 in Inlet Spud, 2 in Outlet Tap, 80 psi Static, 20 psi at Valve Working Pressure, Wall Mounting, Vitreous China, White, 14-7/16 in Length, 14-5/16 in Width, 22-5/8 in Height
| Collection | : | Pintbrook® |
| Color | : | White |
| Flush Rate | : | 0.47 to 1.9 Lpf |
| Height | : | 22-5/8 in |
| Inlet Spud Size | : | 3/4 in |
| Length | : | 14-7/16 in |
| Material | : | Vitreous China |
| Mounting Type | : | Wall |
| Outlet Tap Size | : | 2 in |
| Spud Location | : | Top |
| Width | : | 14-5/16 in |
| Working Pressure | : | 80 psi Static, 20 psi at Valve |
- High efficiency urinal (HEU) operates in the range of 0.125 to 0.5 gpf (0.47 to 1.9 Lpf)
- Great 1 pt flush alternate to popular Allbrook® urinal
- Powerful washdown action
- Optimized chinaware contours provide superior splash protection
- 3/4 in (19 mm) inlet spud with 2 in (51 mm) threaded outlet connection
- Fixture only
