An impressive collection of electronic and manual valves designed to meet the demands of high use spaces. Labor saving installation, water saving operation and time saving maintenance and care.

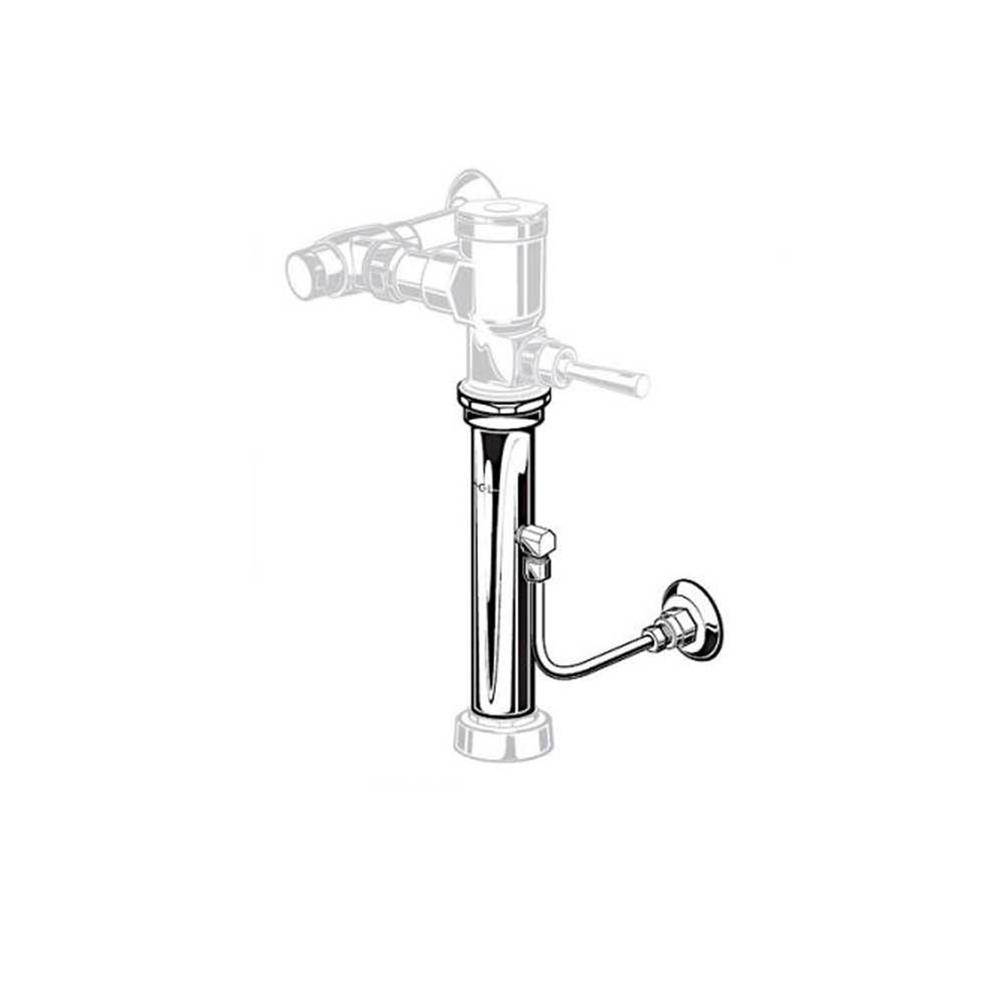

American Standard Trap Primer, 1/2 in Nominal, NPT Connection, For Use With: 11-1/2 in Rough-In Exposed Top Spud Toilet Flush Valves, Brass, Polished Chrome, 70 mm L x 70 mm W x 216 mm H
| Connection Type | : | NPT |
| Dimensions | : | 70 mm L x 70 mm W x 216 mm H |
| Finish | : | Polished Chrome |
| Material | : | Brass |
| Nominal Size | : | 1/2 in |
| Suitable For Use With | : | 11-1/2 in Rough-In Exposed Top Spud Toilet Flush Valves |
- Trap primer diverts a small amount of water from each flush to the floor drain to maintain the water seal
- Water seal prevents sewer gases from escaping into the air
- Operates at 1.1 to 1.6 gpf (4.2 to 6 Lpf)
Instruction/Installation Manual
Specification Sheet
