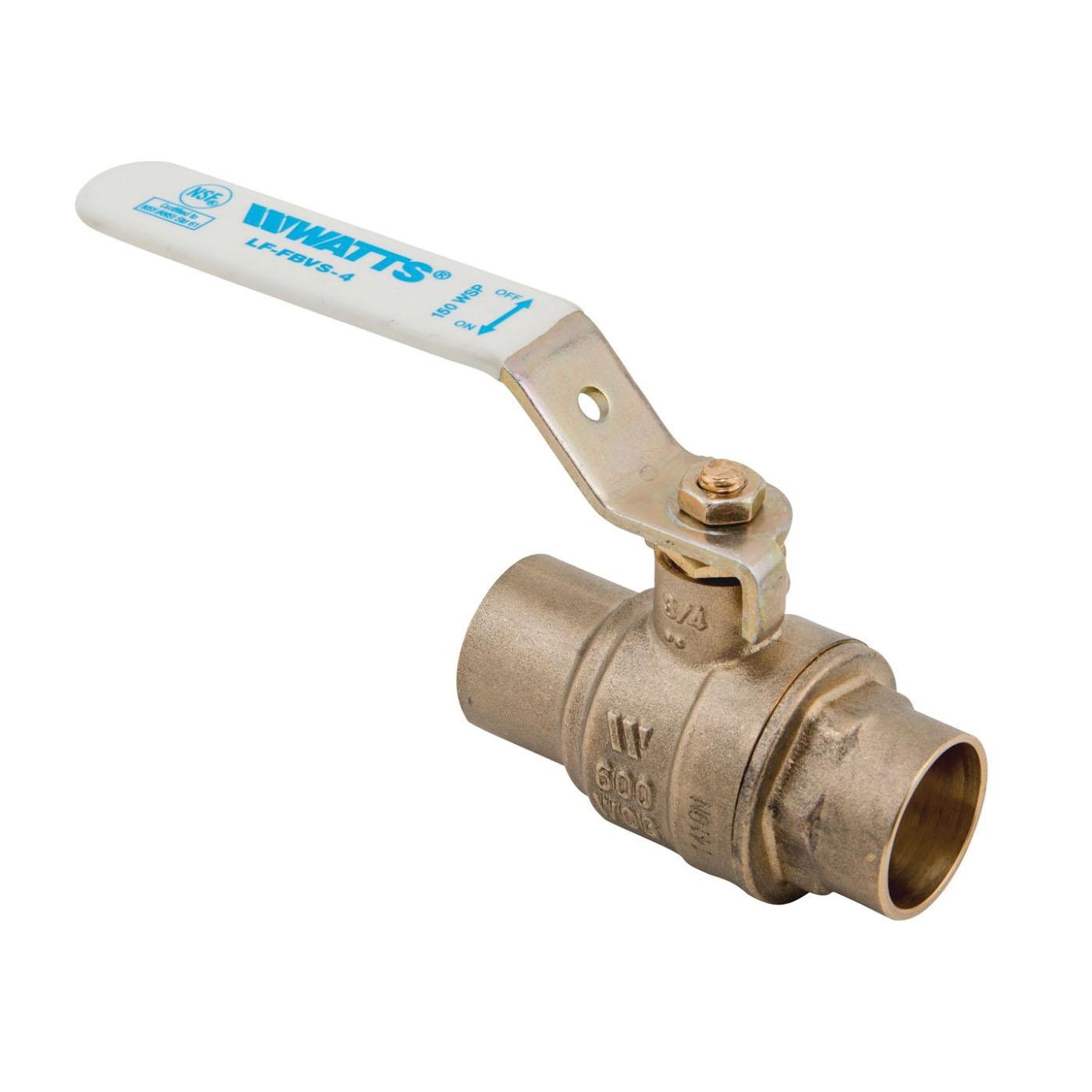

This 3/4 in two piece full port lead-free ball valve is used in commercial and industrial applications for a full range of liquids and gases. It features a lead-free brass body with solder end connections, bottom loaded blowout-proof stem, virgin PTFE seat, thrust washer and adjustable stem packing seal, chrome-plated lead-free brass ball, lead-free brass adapter and steel handle.
WATTS® Ball Valve, Series: LFFBV-4 Series, 3/4 in Nominal, Solder Connection, Full Port, 600 psi WOG, 150 psi WSP Pressure, Media: Water, 2-5/8 in Inlet to Outlet Length, 2-1/16 in Top to Inlet Center, Lever Handle Operator, Brass Body, PTFE Seat, Brass Stem, FKM Seal, Carbon Steel Handle, Brass Ball, Lead-Free Lead-Free/Contains Lead, -40 to 400 deg F
| Ball Material | : | Brass |
| Body Material | : | Brass |
| Configuration | : | 2-Piece |
| Connection Type | : | Solder |
| Dimensions | : | 2-5/8 in L |
| Domestic/Import | : | Domestic |
| Finish | : | Brass-Coated |
| Handle Material | : | Carbon Steel/Vinyl |
| Inlet to Outlet Length | : | 2-5/8 in |
| Lead-Free/Contains Lead | : | Lead-Free |
| Media | : | Gas, Oil, Water |
| Nominal Size | : | 3/4 in |
| Operator Type | : | Lever Handle |
| Orifice Size | : | 11/16 in |
| Packing Material | : | PTFE |
| Port Type | : | Full |
| Pressure Rating | : | 150 psi WSP, 600 psi WOG |
| Seal Material | : | PTFE |
| Seat Material | : | PTFE |
| Series | : | LFFBVS-4 Series |
| Softgoods Material | : | PTFE |
| Stem Material | : | Brass |
| Temperature Rating | : | -40 to 400 deg F |
| Top to Inlet Center | : | 2-1/16 in |
| Trim Material | : | PTFE |
- Bottom loaded blowout-proof stem
