Typically located in-floor when installed, the Endura50 offers the largest physical capacity in the line. Like the Endura35 they use an additional diffuser baffle in conjunction with the inlet baffle - the removable inlet and outlet baffles being extended in length. Supplied with our accessible flow control in either 3 in(03) or 4 in(04) format, Endura50 is compatible with our modular riser extensions (3935AX6) for a perfectly flush-with-floor finish. Flow control riser extension kit also available.

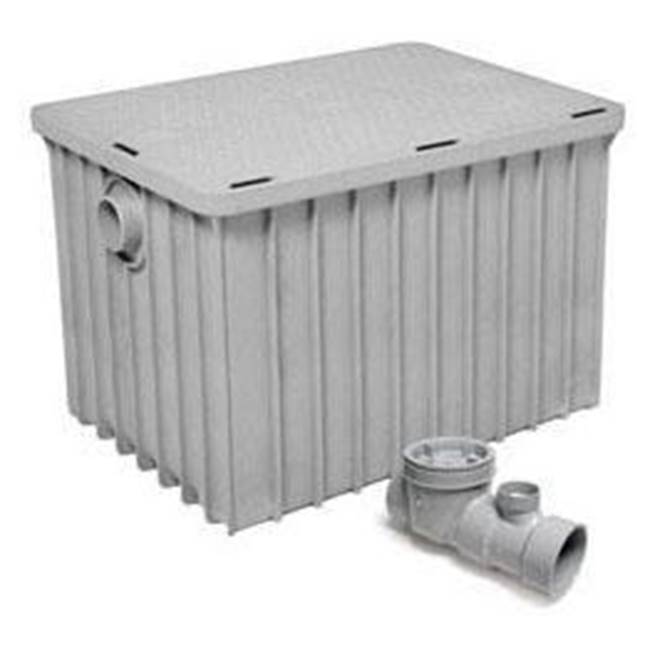

endura® Grease Interceptor, 3 in Pipe, 100 lb Capacity, 50 gpm Flow Rate, 23-1/2 in Overall Height, 23-1/2 in Overall Width, 31 in Overall Depth, 220 deg F, Thermoplastic, Gray
| Capacity | : | 100 lb |
| Color | : | Gray |
| Flow Rate | : | 50 gpm |
| Material | : | Thermoplastic |
| Overall Depth | : | 31 in |
| Overall Height | : | 23-1/2 in |
| Overall Width | : | 23-1/2 in |
| Pipe Size | : | 3 in |
| Temperature Rating | : | 220 deg F |
- Tank, lid and baffles injection molded in engineered thermoplastic that will not corrode, chip or peel, even under the most severe applications
- Supplied with accessible flow control device (HxHxH) for solvent weld installation to ABS and PVC DWV systems
- EZ-open cover latching system provides simple fastener-free solution for regular maintenance access
- Suitable for in-floor or on-floor installations
- Tank installed using mechanical joint couplings (by others), allowing for connection with various piping materials
- 3 in no hub connection compatible with DWV piping
- Lightweight but highly durable construction offers ease of handling, installation and product LONGEVITY compared to traditional interceptors
- Recessed silicone seal prevents foul odors from escaping in service
Instruction/Installation Manual
