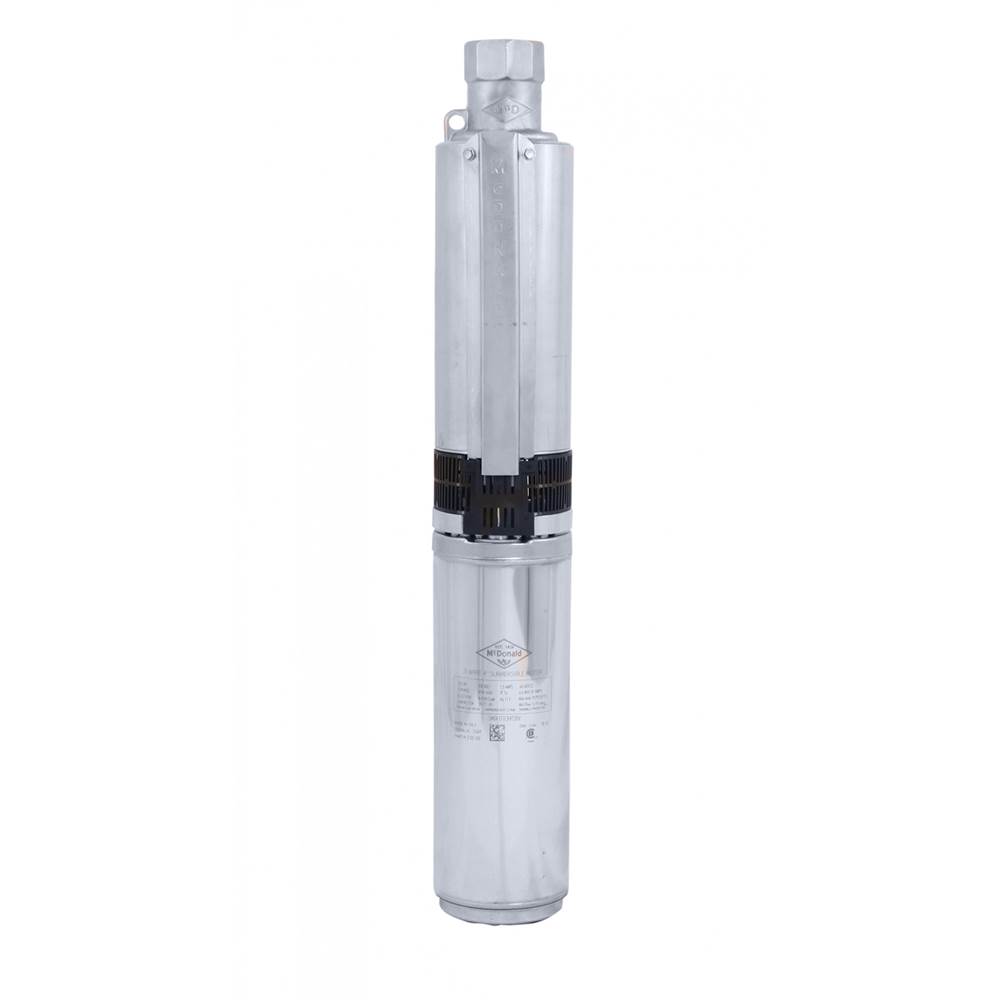

Mc.Donald® Submersible Pump, Series: 23000, Model: 23100K3, 230 V, 3 W Power, 60 Hz, HP Rating: 1 hp, 1, 1-1/4 in Discharge, 10 gpm Capacity, Number of Stages: 12, 194 psi, Glass Bead Acetal Impeller, Stainless Steel, 24-1/2 in L x 3-3/4 in Dia
| Capacity | : | 10 gpm |
| Dimensions | : | 24-1/2 in L x 3-3/4 in Dia |
| Discharge Size | : | 1-1/4 in |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 1 hp |
| Impeller Material | : | Glass Bead Acetal |
| Material | : | Stainless Steel |
| Model | : | 23100K3 |
| Number of Stages | : | 12 |
| Phase | : | 1 |
| Power Rating | : | 3 W |
| Pressure Rating | : | 194 psi |
| Series | : | 23000 |
| Voltage Rating | : | 230 V |
- Discharge - 300 Series stainless steel, corrosion-resistant, easy wrench design, built-in safety eye, threads into shell
- A.Y. McDonald's diamond design check valve, easy out design for maximum convenience and versatility
- Discharge bearing - rubber surrounding the stainless steel shaft provides superior wear resistance against the harshest conditions, self-lubricating for long life
- Stainless steel cable guard protects motor leads, angled top helps keep leads stationary when lowering and raising submersible pump
- Diffuser polycarbonate durable corrosion/abrasion, designed for efficient performance and superior sand handling capability
- A.Y. McDonald uses it's time proven captured stack design, the captured stack design incorporates sand notches into the diffusers, which is proven to keep sand flowing thru the stack over time
- Impeller-glass bead acetal, this smooth and flexible material is precision engineered for maximum performance
- Heavy stainless steel shell-threaded at both ends for easy field service
- Stainless steel hex shaft 7/16 to 7/16 in 300 Series stainless steel, hex design for positive impeller drive, each shaft individually measured for straightness with strict tolerances, achieves maximum corrosion resistance for longer life
- Once assembled, each pump is individually tested to assure performance within design specifications, each pump is stamped with the tester's signature making to assure quality control
