Built for high-end residential and light commercial applications, Rain Bird® PGA Series valves are the toughest, most reliable valves in their class. These long-lasting, easy-to-service valves are proven to perform at the highest level, even under harsh temperatures and intense pressure.

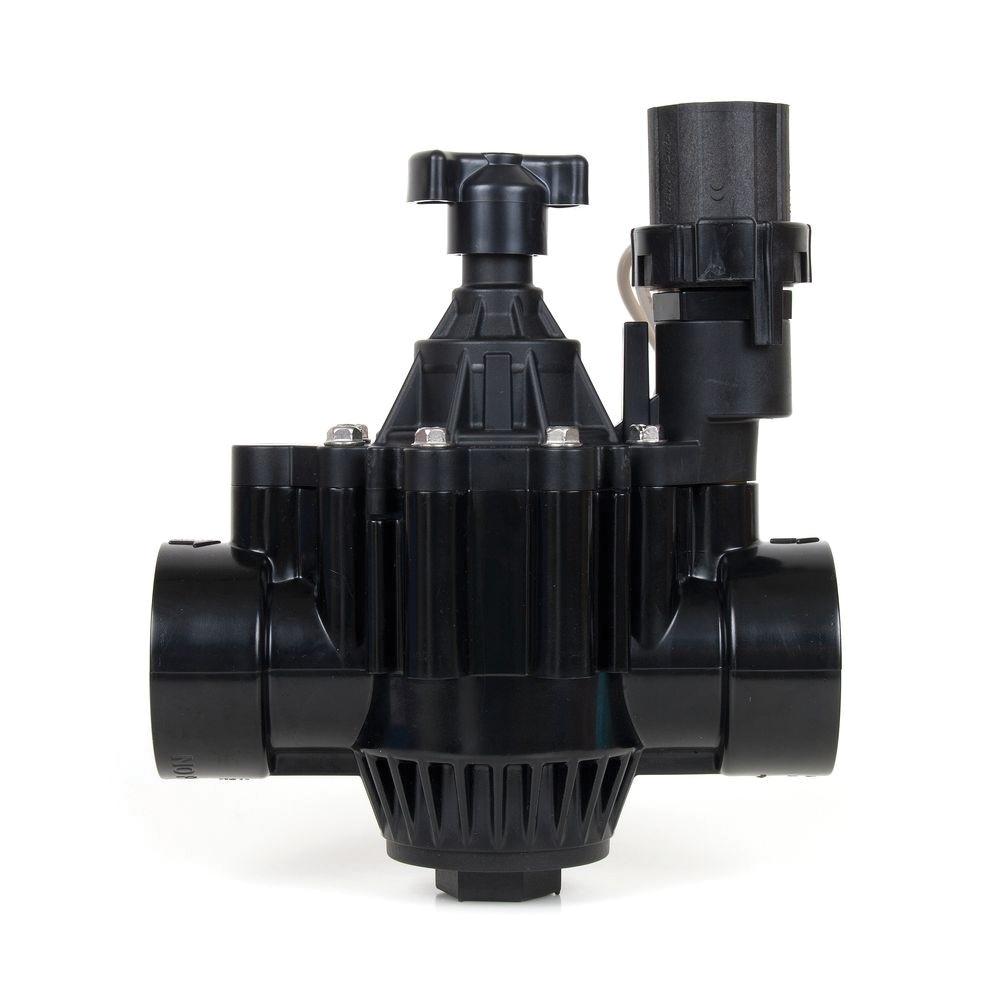

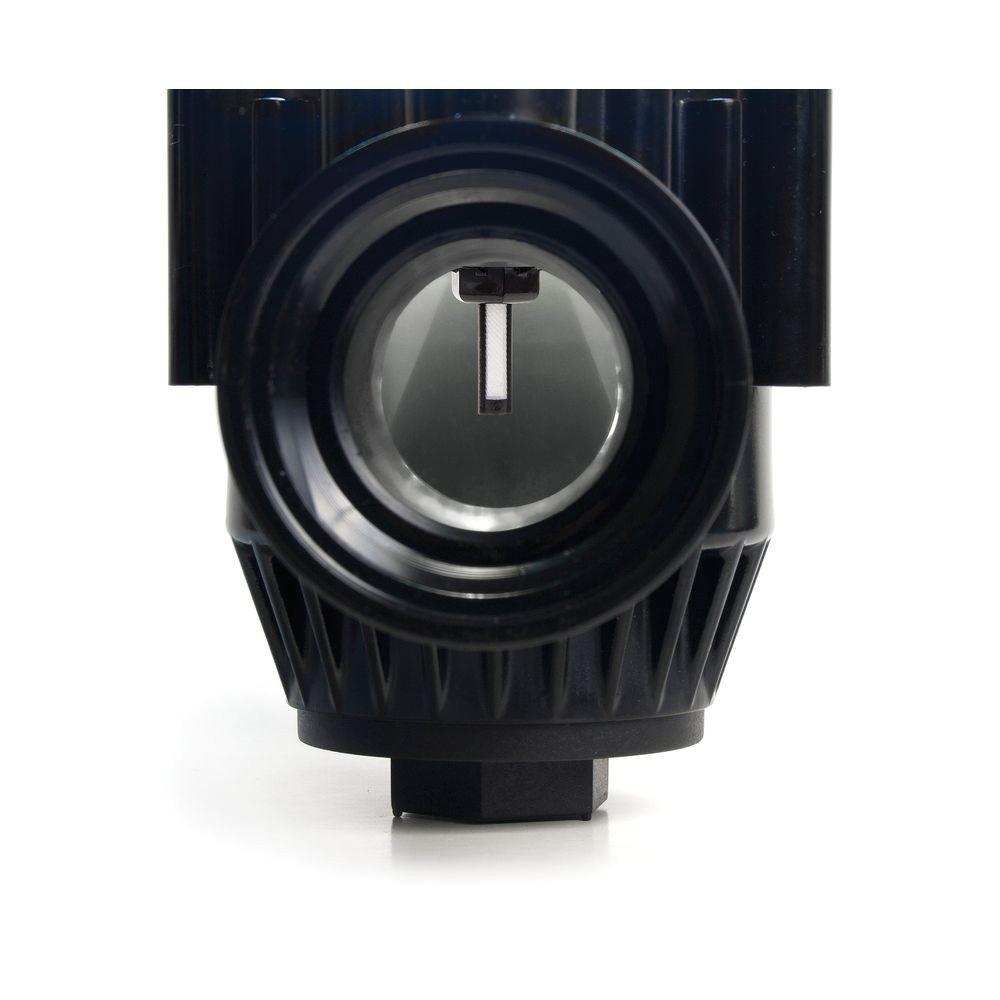

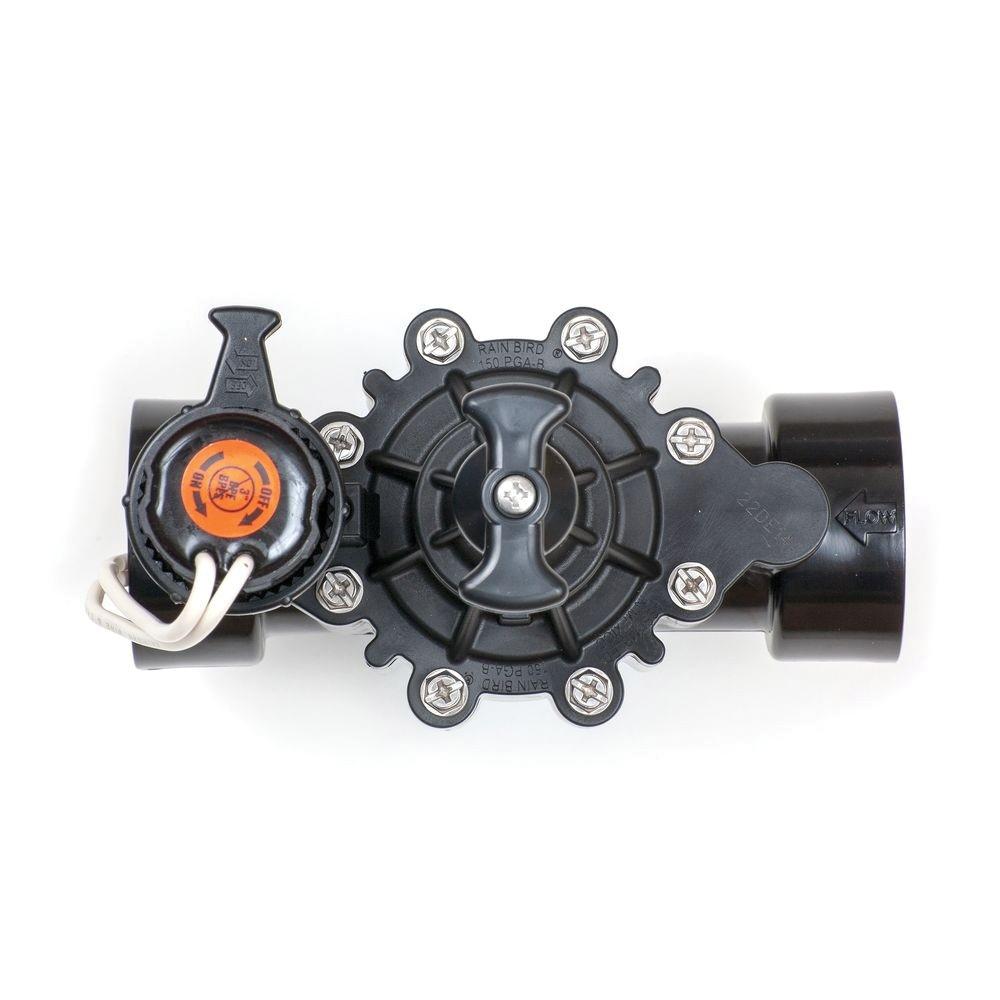

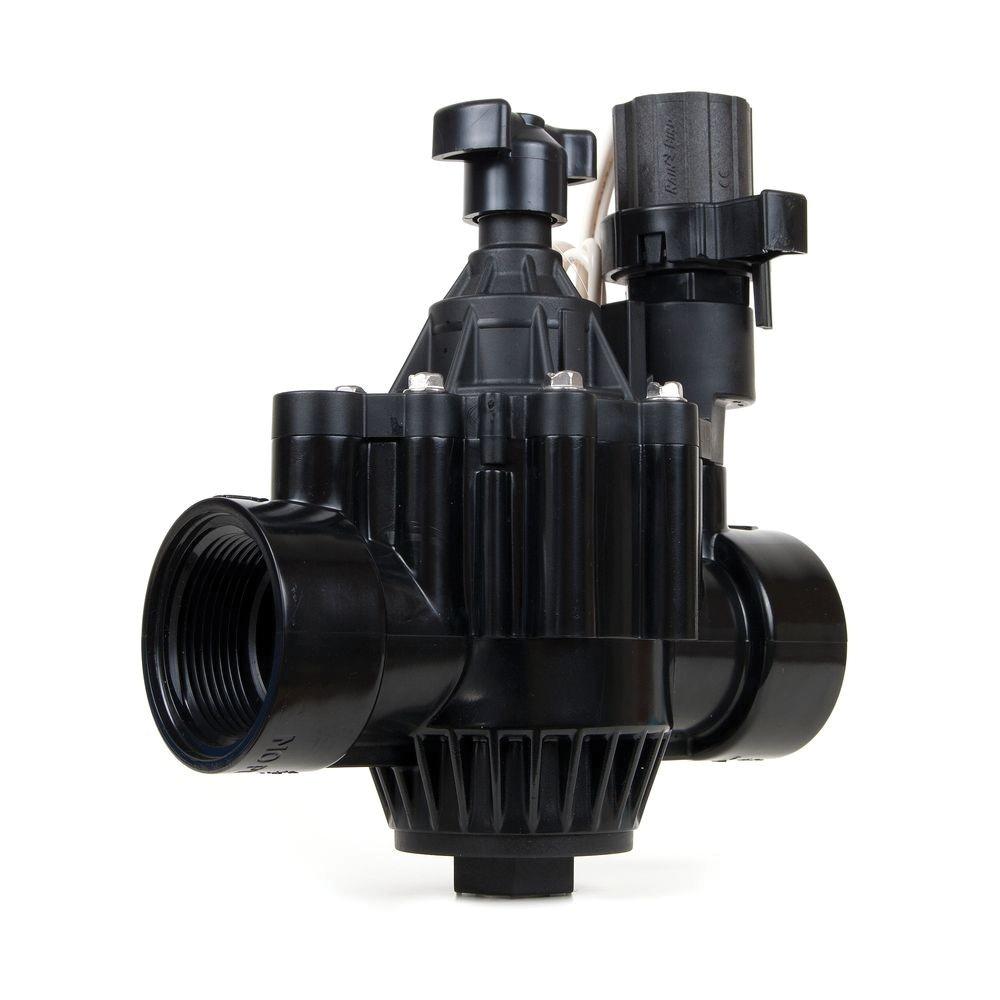

Rain Bird® Inline Valve, Series: PGA, 1-1/2 in Nominal, Connection Type: FPT, 15 to 150 psi, 2 to 150 gpm Flow Rate, 110 deg F, 7-1/4 x 5-1/2 x 3-1/4 in
| Connection Type | : | FPT |
| Dimensions | : | 7-1/4 x 5-1/2 x 3-1/4 in |
| Flow Rate | : | 2 to 150 gpm |
| Nominal Size | : | 1-1/2 in |
| Pressure Rating | : | 15 to 150 psi |
| Series | : | PGA Series |
| Temperature Rating | : | 110 deg F |
- Water-tight seal between the body and bonnet for maximum confidence, even in the most extreme conditions
- Robust electrical design for quiet performance you can count on
- Rugged PVC and glass filled nylon construction for reliable operation
- Normally closed, forward flow design
- Filtered pilot flow to resist debris and clogging
- Slow closing to prevent water hammer and subsequent system damage
- Globe and angle configuration for flexibility in design and installation
- Manual internal bleed operates the valve without allowing water into the valve box, allowing pressure regulator adjustment without turning the valve on at the controller
- One-piece solenoid design with captured plunger and spring for easy servicing
- Non-rising flow control handle adjusts water flow as needed
