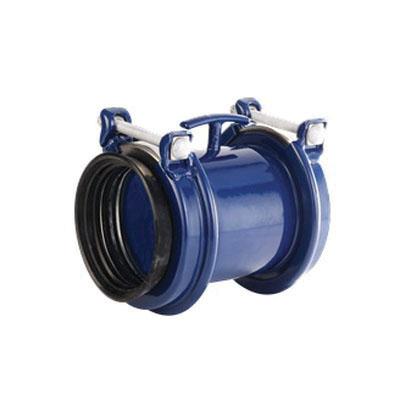

HYMAX® Wide Range Coupling, Coupling Fitting, 12 in Connection Size 1, 12 in Connection Size 2, Steel, Carbon Steel Material Construction, Fusion Bonded Epoxy-Coated, M14 Thread, 260 psi, 10.8 in L, -20 to 125 deg F
| Connection Size 1 | : | 12 in |
| Connection Size 2 | : | 12 in |
| Dimensions | : | 10.8 in L |
| Finish | : | Fusion Bonded Epoxy-Coated |
| Fitting Type | : | Coupling |
| Material Construction | : | Carbon Steel |
| Material | : | Steel |
| Pressure Rating | : | 260 psi |
| Temperature Rating | : | -20 to 125 deg F |
| Thread Size | : | M14 |
- HYMAX® 2's patented flip gasket can be easily flipped in or out to accommodate different pipe OD's
- Advanced no-tear gasket technology for maximum installation efficiency
- Only two top facing bolts faster, easier, safer installation
- Dynamic deflection of 4 deg per side reducing future pipe damage
- Suitable for most types of pipes ductile iron, cast iron, steel, copper, PE, PVC, AC
