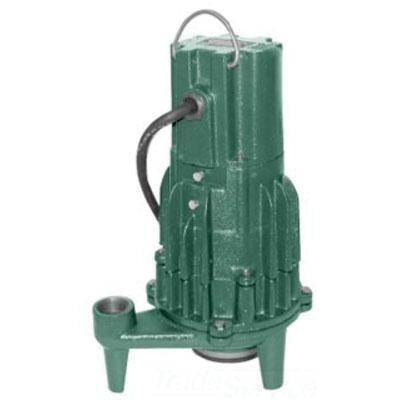

F&W® Manual Grinder Pump, Series: E820, 230 VAC, 13.7 A, 60 Hz, HP Rating: 2 hp, 3450 rpm Speed, 47 gpm Flow Rate, 1 ph, 1-1/4 in Discharge, 130 deg F, 11-5/8 in W x 18-5/8 in H x 8 in D, 108 ft Maximum Feet of Head, Plastic Impeller, Cast Iron
| Amperage Rating | : | 13.7 A |
| Dimensions | : | 11-5/8 in W x 18-5/8 in H x 8 in D |
| Discharge Size | : | 1-1/4 in |
| Flow Rate | : | 47 gpm |
| Frequency Rating | : | 60 Hz |
| HP Rating | : | 2 hp |
| Impeller Material | : | Plastic |
| Material | : | Cast Iron |
| Maximum Feet of Head | : | 108 ft |
| Phase | : | 1 ph |
| Series | : | E820 |
| Speed Rating | : | 3450 rpm |
| Temperature Rating | : | 130 deg F |
| Voltage Rating | : | 230 VAC |
- Durable, heavy-duty, finned cast iron construction
- Legs provided for free-standing installation
- Oil filled, hermetically sealed motor with class B insulation, automatic reset thermal overload protected
- Corrosion-resistant, powder-coated epoxy finish
- 1-1/4 in NPT vertical discharge
- Carbon ceramic seal
- Thermal overload protection
- Easily adapts to rail systems
- Control panels not required
