FlashShield™ is metallically shielded corrugated stainless steel tubing system complying with ANSI LC 1 fuel gas piping systems using CSST and listed with CSA®, ICC and IAPMO. The FlashShield™ system is also listed to protective jacket standards, ICC-ES PMG LC1024 and LC1027. All mechanical tube fittings are SAE CA360 brass incorporating double wall flare sealing. The Jacket-Lock™ and metal locking features provide steel tubing protection and continuous conductivity.

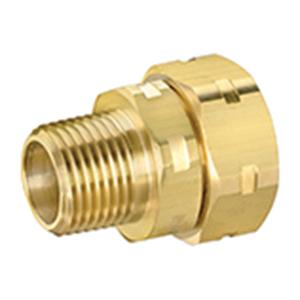

Gastite® Adapter, Series: XR3 Series, Adapter Fitting, 1-1/2 in Connection Size 1, MNPT Connection Type 1, 1-1/2 in Connection Size 2, FNPT Connection Type 2, MNPT|FNPT Connection, Brass, Brass Material Construction, 25 psi Pressure, 2-5/16 x 2-9/16 in Hex, -40 to 160 deg F
| Connection Size 1 | : | 1-1/2 in |
| Connection Size 2 | : | 1-1/2 in |
| Connection Type 1 | : | MNPT |
| Connection Type 2 | : | FNPT |
| Connection Type | : | MNPT|FNPT |
| Fitting Type | : | Adapter |
| Hex Size | : | 2-5/16 x 2-9/16 in |
| Material Construction | : | Brass |
| Material | : | Brass |
| Pressure Rating | : | 25 psi |
| Series | : | XR3 Series |
| Temperature Rating | : | -40 to 160 deg F |
- Metal lock for enhanced continuity
- Tool-less flare design, no special tools are required
- Metal-to-metal seal, with no split rings, O-ring or gaskets
- Self-guiding assembly to ensure a perfectly even flare
- Exclusive, patented Jacket-Lock™ fitting eliminates exposed stainless steel beyond the nut
- All components are fully reusable
