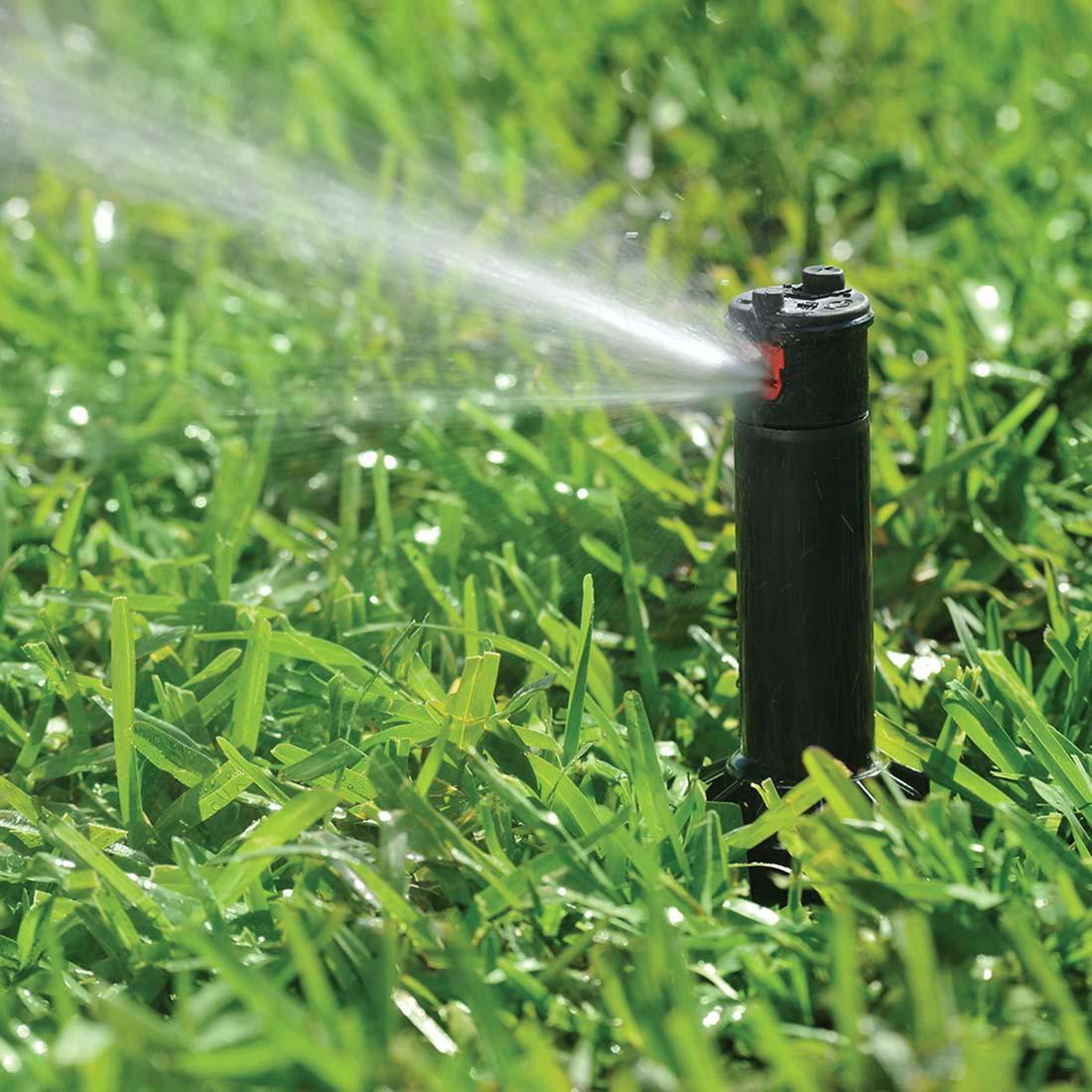

Designed for smaller areas, the RPS™ 50 is a gear-driven, rotary sprinkler, capable of covering an area of 18 to 33 ft radius at nozzle pressure of 30 to 50 psi with a discharge rate of 0.8 to 3.3 gpm. The RPS™ 50 is supplied with five numerically coded interchangeable nozzles. Sprinkler nozzle trajectory is 25 deg. The sprinkler has a stainless steel radius adjustment screw and has arc adjustment from 40 to 360 deg.
K-RAIN® Rotor Sprinkler, 25 deg Trajectory Angle, 20 to 70 psi, 0.26 to 0.60 in/hr Precipitation Rate, 1/2 in Connection, NPT Connection, 6 in Overall Height
| Connection Size | : | 1/2 in |
| Connection Type | : | NPT |
| Overall Height | : | 6 in |
| Precipitation Rate | : | 0.26 to 0.6 in/hr |
| Pressure Rating | : | 20 to 70 psi |
| Trajectory Angle | : | 25 deg |
- Right position start rotor rotates counterclockwise from fixed right start position
- Time proven patented reversing mechanism assures continuous reverse and return over a 35 year history
- Ratcheting riser allows for easy adjustment of your right starting position with a simple turn of the riser
- Rubber cover seals out dirt and increases product durability
- Wide selection of nozzles provides flexibility in system design
- Optional check valve prevents low head drainage
Instruction/Installation Manual
