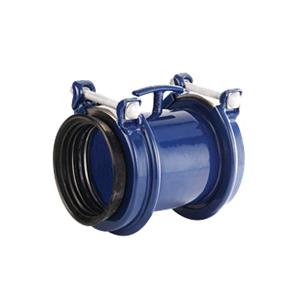

HYMAX® Pipe Coupling, HYMAX® 2 Series, Coupling Fitting, 2 in Connection Size 1, 2 in Connection Size 2, Stainless Steel, 304 Stainless Steel Material Construction, Fusion Bonded Epoxy-Coated, 260 psi, 6.8 in L, -20 to 150 deg F
| Connection Size 1 | : | 2 in |
| Connection Size 2 | : | 2 in |
| Dimensions | : | 6.8 in L |
| Finish | : | Fusion Bonded Epoxy-Coated |
| Fitting Type | : | Coupling |
| Material Construction | : | 304 Stainless Steel |
| Material | : | Stainless Steel |
| Pressure Rating | : | 260 psi |
| Series | : | HYMAX® 2 Series |
| Temperature Rating | : | -20 to 150 deg F |

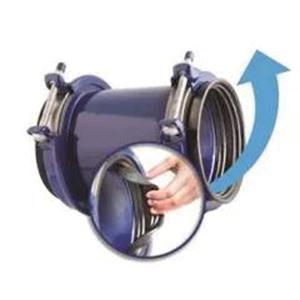

- Advanced wide range coupling with a patented flip gasket
- Eliminates gasket removal mistakes and maximizes installer work efficiency
- Only two top facing bolts, for faster and safer installation
- Ready to use design to eliminate extensive under pipe digging
- Allows 4 deg dynamic deflection on each end, reducing future pipe damage
- Patented hydraulically assisted gasket with two stage sealing
- One product can connect pipes of two different materials
- Based on the game changing HYMAX® that has been field proven in millions of installations in the US
- Product performance, OD range and pressures are identical to those of the original HYMAX®
