Shielded, high-performance sewer repair couplings connect clay pipe to cast iron or schedule 40 plastic pipe. For non-pressure, gravity flow applications only. Recommended for underground installations, although some jurisdictions will allow use above ground. Easy to install and reuse.

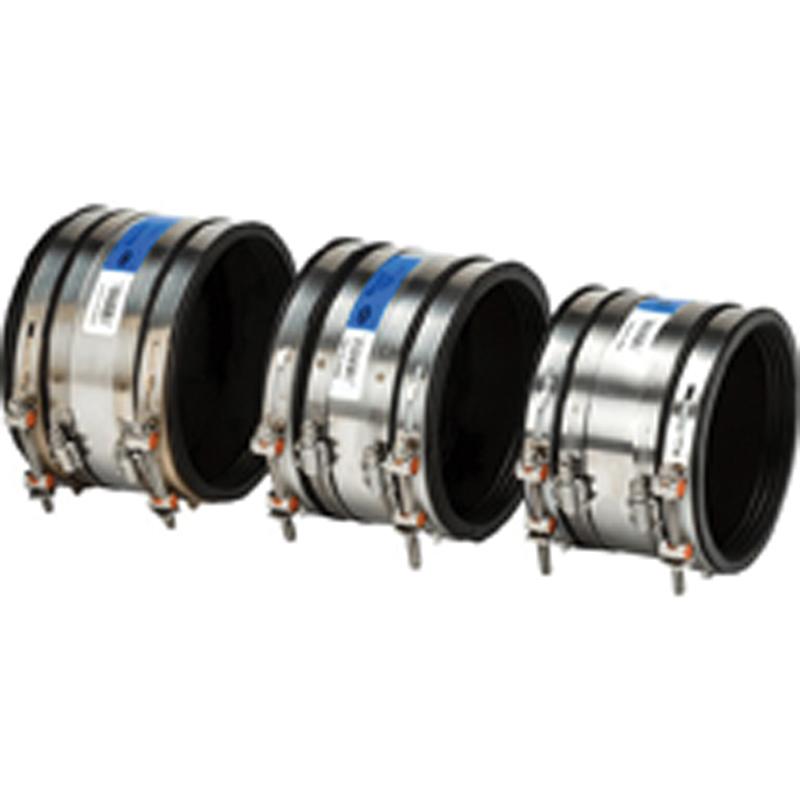

Mission™ Shielded Adjustable Sewer Repair Coupling, Series: MR02 ARC Series, 6 in Fitting, Clay x Cast Iron/Plastic Connection, ASTM A240/A240M-06/C425-04/C1173-06 Material Standard, Synthetic Rubber, 7.8 in OD x 6 in H
| Additional Information | : | 5/16 in Hex Screw |
| Connection Type | : | Clay x Cast Iron/Plastic |
| Dimensions | : | 7.8 in OD x 6 in H |
| Domestic/Import | : | Domestic |
| Elongation | : | 250 % |
| Fitting Size | : | 6 in |
| Material Standard | : | ASTM A240, A240M-06, C425-04, C1173-06 |
| Material | : | Rubber/Stainless Steel |
| Series | : | MR02 ARC Series |
| Temperature Rating | : | 158 deg F |
| Tensile Strength | : | 1000 psi |
| Torque Rating | : | 60 in-lb |
- MISSIONMADE™ products are easy to install and reuse
- Certified Cradle to Cradle™ manufactured within a five-point continual improvement process - material health, material reutilization, renewable energy and carbon management, water stewardship and social fairness
- Synthetic rubbers permit considerable distortion withstanding tension and compression, more pliable, easier to install in cold weather applications than elastomeric PVC gaskets
- Synthetic rubber gasket resists ultraviolet rays, ozone, fungus growth, natural soil erosive properties and normal sewer gases
- Independent clamp tightening adapts to different outside pipe diameters
- Thick, stainless steel shield controls load bearing between coupling and pipe surface, opposing shear forces while maintaining pipe alignment
- Increased band tension secures pipe ends, for a watertight, root-proof seal, impervious to infiltration and exfiltration
- Stainless steel components resist corrosion in marine applications, poorly aerated/moist soils, contaminated grounds conditions and chloride, sulfates or bicarbonates in ground water
- Sealing O-rings under each clamp prevent pipe end slippage for a reinforced joint seal
- Surgical-grade 316 stainless steel clamp
- Heavy-duty, 301 series stainless steel shield
- Molded one-piece elastomeric sealing gasket
