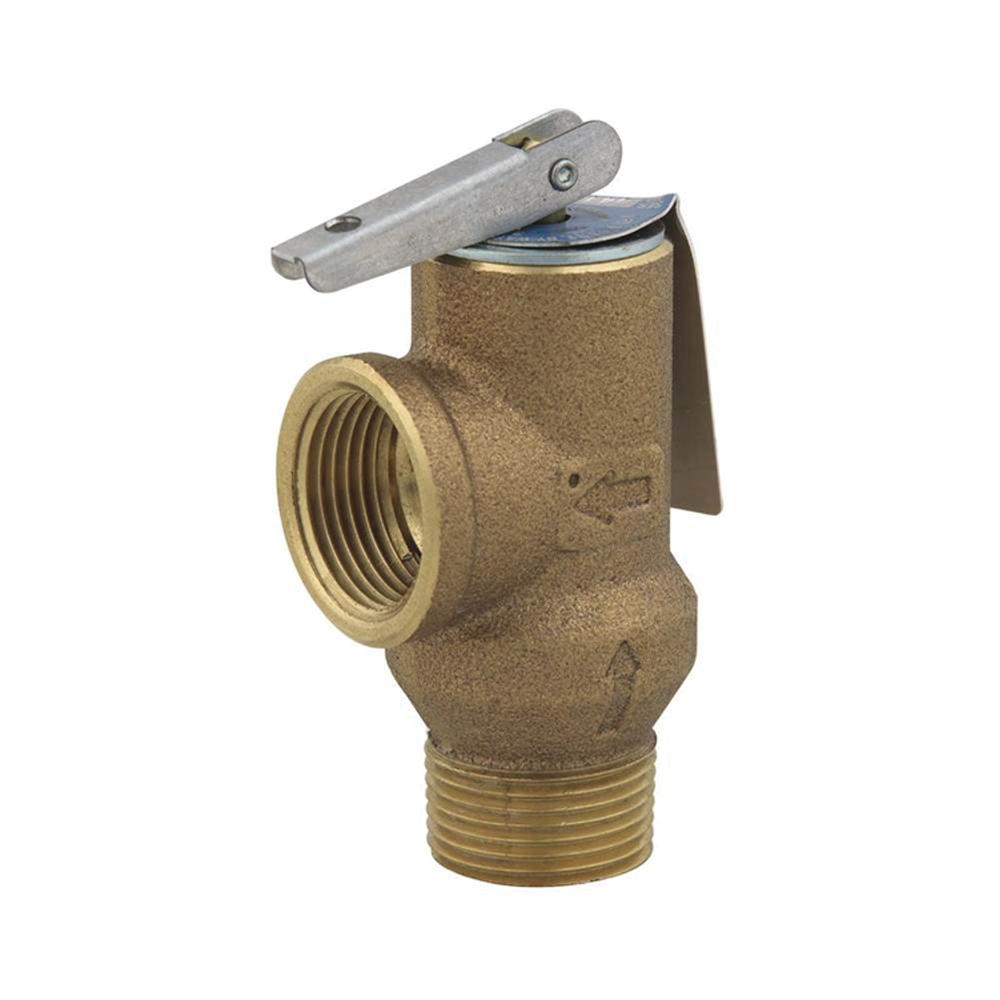

This 3/4 in lead-free pressure relief valve is used in residential applications to protect against excessive pressure on domestic storage tanks and tankless water heaters. It consists of a lead-free copper alloy body with 3/4 in NPT threaded male inlet and 3/4 in NPT threaded female (drain) outlet, test lever, and stainless steel spring.
WATTS® Pressure Relief Valve, Series: LF3L, 3/4 in Nominal, Connection Type: FNPT x MNPT, 150 psi, Water Media, Copper Body, Silicone Disc, 210 deg F, 1-5/32 in W x 3-11/64 in H
| Actuator Type | : | Lever Handle |
| Body Material | : | Copper Alloy |
| Connection Type | : | FNPT x MNPT |
| Dimensions | : | 3-11/64 in H x 1-5/32 in W |
| Disc Material | : | Silicone |
| Media | : | Water |
| Nominal Size | : | 3/4 in |
| Pressure Rating | : | 150 psi |
| Series | : | LF3L Series |
| Temperature Rating | : | 210 deg F |
- Furnished with test levers
- Relieves excessive pressure on storage tanks
- Relieves excessive pressure on tankless water heaters
- Stainless steel spring
