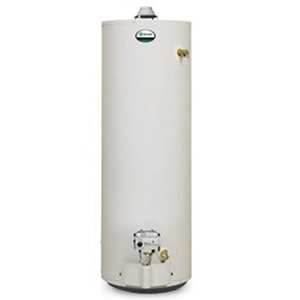

AO Smith® Gas Water Heater, 300/301 Series Series, 50 gal Capacity, 40000 Btu/hr, 88 gal First Hour Delivery, 0.62 Energy Factor, 41 gph Recovery Rate, Atmospheric Vent, 150 psi, Natural Gas Fuel, Piezo Pushbutton Ignition, Diamond® Glass, Blue, Lead-Free, 22 in Dia x 61 in H, 7700 ft Altitude
| Altitude | : | 7700 ft |
| BTU Rating | : | 40000 Btu/hr |
| Capacity | : | 50 gal |
| Color | : | Blue |
| Dimensions | : | 22 in Dia x 61 in H |
| Energy Factor | : | 0.62 |
| Finish | : | Diamond® Glass |
| First Hour Delivery | : | 88 gal |
| Fuel Type | : | Natural Gas |
| Ignition Type | : | Piezo Pushbutton |
| Lead-Free/Contains Lead | : | Lead-Free |
| Pressure Rating | : | 150 psi |
| Recovery Rate | : | 41 gph |
| Series | : | 300/301 Series |
| Vent Type | : | Atmospheric |
- The internal microprocessor provides enhanced operating parameters and tighter differentials for precise sensing and faster heating response to optimize performance
- Self-powered electronic gas valve uses a thermopile to generate the power needed to operate the electronic gas control without requiring an external power source
- The electronic gas control incorporates an LED status indicator that monitors system operation and service diagnostics
- DynaClean™ diffuser dip tube helps to reduce lime and sediment buildup, maximizes hot water output, made from long-lasting Pex cross linked polymer
- Green Choice® gas burner, patented eco friendly design reduces NOx emissions and complies with less than 40 ng/J requirements for NOx emissions
- Coregard™ anode rods have a stainless steel core that extends the life of the anode rod allowing superior tank protection far longer than standard anode rods
- Pushbutton piezo ignitor makes lighting pilot fast and easy with one hand pushbutton spark ignition
- Durable tamper-resistant brass drain valve
- Blue Diamond® glass coating provides superior corrosion resistance compared to industry standard glass lining
