HYMAX® clamps, now offered with only two bolts, are permanently repair holes and longitudinal cracks in water and wastewater pipes. Highly reliable and now even easier to install, HYMAX® two bolt clamps are both extremely efficient and very cost effective. Like in the HYMAX® coupling products, the HYMAX® clamp has patented closure mechanism with only two bolts enabling easy installation by one person working alone. The unique wide range design substantially reduces inventory and on-vehicle stock as one HYMAX® clamp can replace up to three standard competitor's clamps.

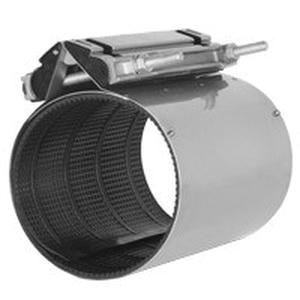

HYMAX® Pipe Repair Clamp, Fits Pipe Size: 4.47 to 5.27 in, 4.47 to 5.27 in Rod, M14 Dia x 8.27 in L Bolt Size, 2 Bolts, 150 psi, EPDM Gasket, Stainless Steel Body, ASTM A351 CF8 Material Standard, 12 in L x 8 in H, -20 to 180 deg F, 4 in Dia, 75 ft-lb Torque Rating
| Additional Information | : | 4 in Dia, 75 ft-lb Torque Rating |
| Body Material | : | Stainless Steel |
| Bolt Size | : | M14 x 8.27 in L |
| Dimensions | : | 12 in L x 8 in H |
| Fits Pipe Size | : | 4.47 to 5.27 in |
| Gasket Material | : | EPDM |
| Material Standard | : | ASTM A351 CF8 |
| Number of Bolts | : | 2 |
| Pressure Rating | : | 150 psi |
| Rod Size | : | 4.47 to 5.27 in |
| Temperature Rating | : | -20 to 180 deg F |
- Easy-to install starting with only two bolt
- Stainless steel, lightweight monoblock design
- Wide range, replace up to three standard product
- Strong and anti-corrosion-resistant
- Suitable for all pipe type
