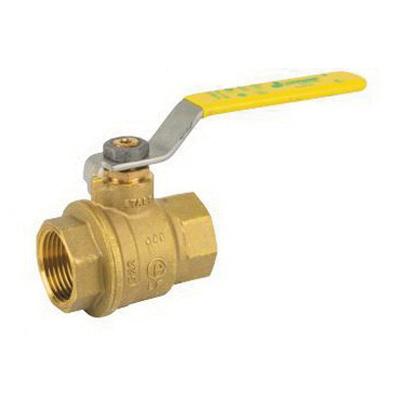

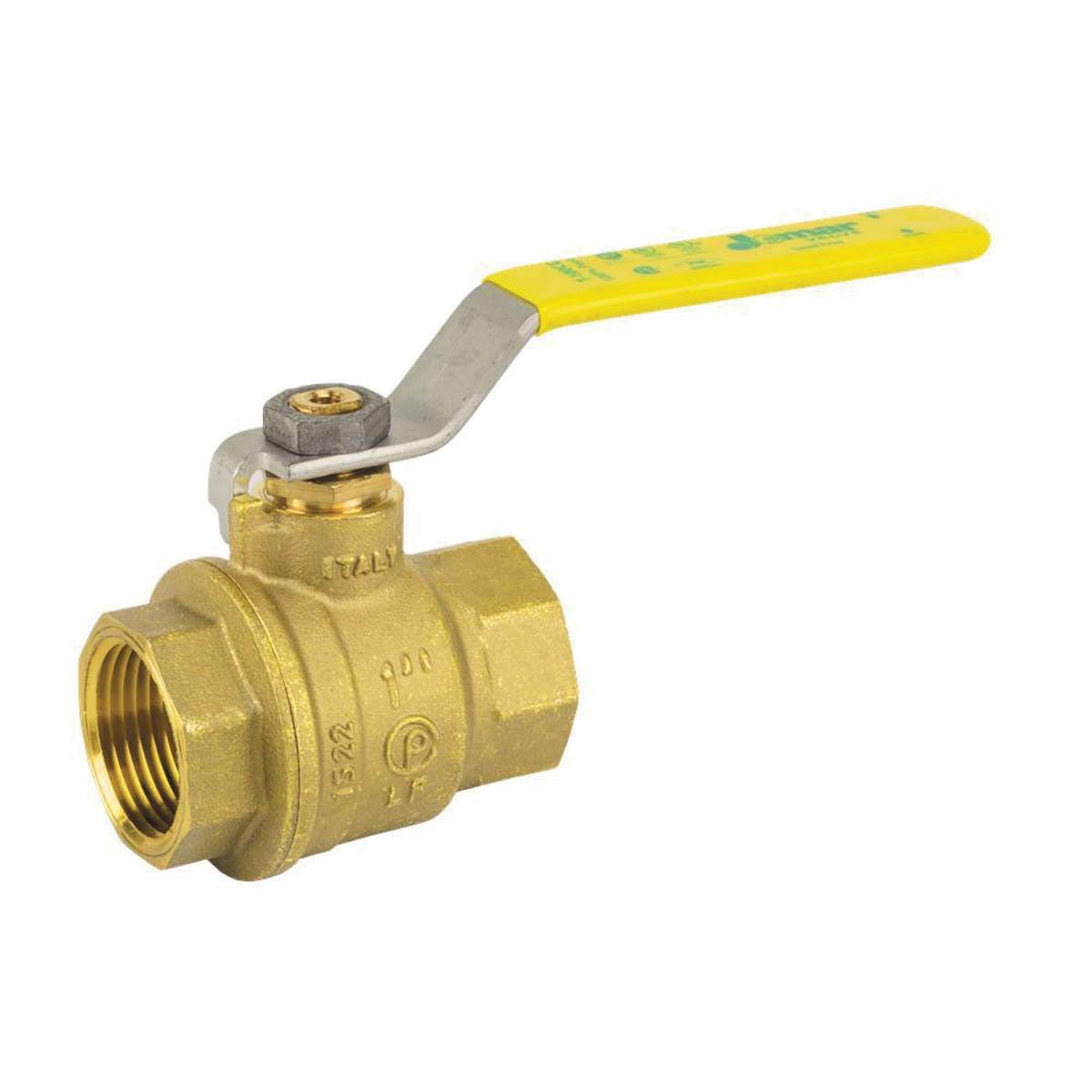

Jomar Valve® Ball Valve, Series: T-100C Series, 3/4 in Nominal, Threaded Connection, Full Port, 600 psi WOG Pressure, 0.79 in Orifice, 2.34 in Inlet to Outlet Length, 1.95 in Top to Inlet Center, Lever Handle Operator, 34.8 Cv Flow Coefficient (Cv), Brass Body, TFM Seat, Brass Stem, FKM Seal, TFM Packing Material, Steel Handle, Brass Ball, Lead-Free Lead-Free/Contains Lead, 3/4 in L Dimensions, Import
| Ball Material | : | Brass |
| Body Material | : | Brass |
| Connection Type | : | Threaded |
| Dimensions | : | 3/4 in L |
| Domestic/Import | : | Import |
| Flow Coefficient (Cv) | : | 34.8 Cv |
| Handle Material | : | Steel |
| Inlet to Outlet Length | : | 2.34 in |
| Lead-Free/Contains Lead | : | Lead-Free |
| Nominal Size | : | 3/4 in |
| Operator Type | : | Lever Handle |
| Orifice Size | : | 0.79 in |
| Packing Material | : | TFM |
| Port Type | : | Full |
| Pressure Rating | : | 600 psi WOG |
| Seal Material | : | FKM |
| Seat Material | : | TFM |
| Series | : | T-100C Series |
| Stem Material | : | Brass |
| Top to Inlet Center | : | 1.95 in |
- Triple sealing stem with two FKM O-rings and second generation PTFE seal
- Blowout-proof stem
- 100% leak tested
- 100% made in Italy
- 29 inHg vacuum rating
- Leak-proof stem
- Wetted surface contain less than 0.25% lead content
- Dezincification-resistant brass alloy
Specification Sheet
