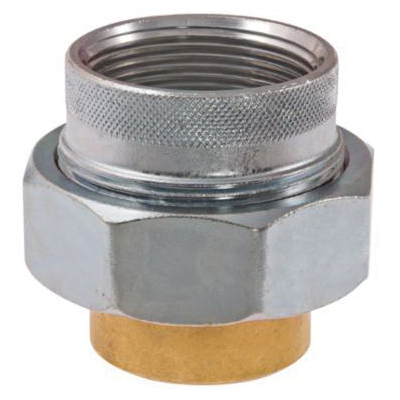

This 1 in lead-free dielectric union is used in commercial and residential applications to prevent accelerated corrosion and deterioration in the piping system due to galvanic and stray current. It is installed between pipes made from dissimilar metals and is used on applications such as hot water storage tanks, water and air conditioners, processing tanks, steam, gas and water piping. It consists of a female iron pipe thread to solder connection, union nut, two tailpieces and a Buna-N gasket that separates the tailpieces to prevent an electric current from occurring.
WATTS® Dielectric Union, Series: LF301, Fitting Type: Union, 1 in Fitting, Connection Type: FIP x Solder, 2-1/8 in Hex, 250 psi, Forged Steel, 250 deg F, 2-1/4 in L
| Connection Type | : | FIP x Solder |
| Fitting Size | : | 1 in |
| Fitting Type | : | Union |
| Hex Size | : | 2-1/8 in |
| Length | : | 2-1/4 in |
| Material | : | Forged Steel |
| Pressure Rating | : | 250 psi |
| Series | : | LF301 |
| Temperature Rating | : | 250 deg F |
- Designed and manufactured to the highest quality standards
Specification Sheet
