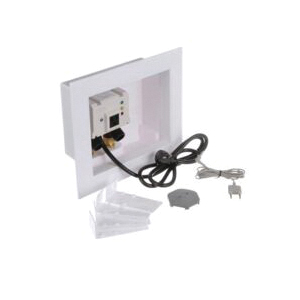

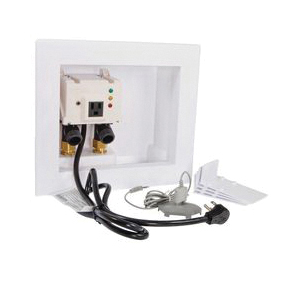

This IntelliFlow® automatic washing machine shut-off valve with leak sensor is used in residential applications to protect against catastrophic water damage from a burst inlet hose connected to a washing machine in use or unattended. It senses when the washing machine is on or off and then opens or closes the hot and cold inlet valves as needed to allow or prevent water from flowing to the washer. If it detects a leak, current flow to both the hot and cold water valves are immediately interrupted and closed. This device consists of an electrical three-prong outlet to receive a washing machine power cable, leak sensor, power cord and a replaceable internal strainer screen. It also comes equipped with 1/2 in sweat inlet adapters for both hot and cold water supply tubing and two mounting tabs used to secure the valve to the wall for surface-mount applications. The maximum pressure is 150 psi (10.3 bar). A wall box is included for recessed wall-mounting.
WATTS® Automatic Washing Machine Shut-Off Valve, A2C-WB Series Series, 1/2 x 3/4 in Nominal, Connection Type: IPS Socket x MGHT, 150 psi, Polysulfone Body, 180 deg F
| Body Material | : | Polysulfone |
| Connection Type | : | IPS Socket x MGHT |
| Nominal Size | : | 1/2 x 3/4 in |
| Pressure Rating | : | 150 psi |
| Series | : | A2C-WB Series |
| Temperature Rating | : | 180 deg F |
- Turns off water supply to washing machine when a leak is detected
- Electronic control device senses the washing machine current flow
- Helps prevent floods from burst washing machine hoses
- De-pressurizes hoses when washing machine is not in use
Instruction/Installation Manual
