This lead-free dielectric union is used in commercial and residential applications to prevent accelerated corrosion and deterioration in the piping system due to galvanic and stray current. It is installed between pipes made from dissimilar metals and is used on applications such as hot water storage tanks, water and air conditioners, processing tanks, steam, gas and water piping. It consists of a female iron pipe thread to female iron pipe thread (black) connections, union nut, two tailpieces and a Buna-N gasket that separates the tailpieces to prevent an electric current from occurring.

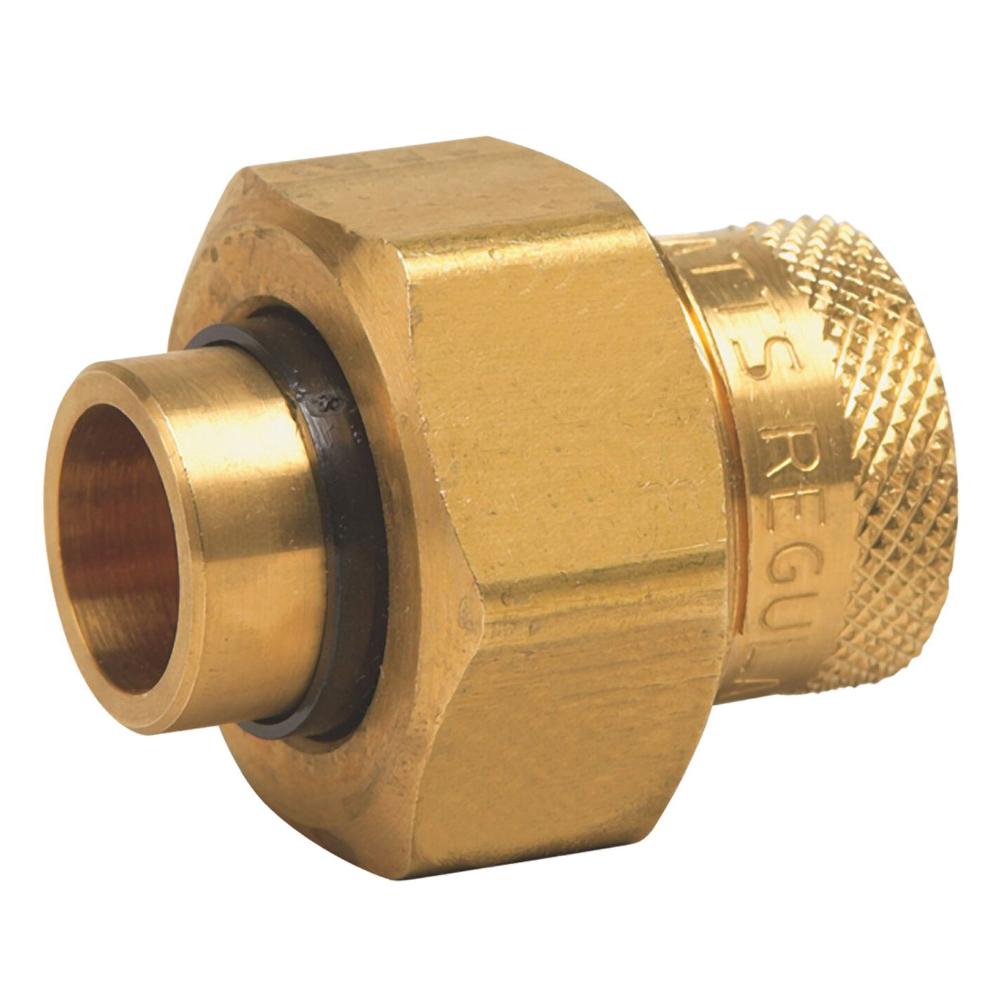

WATTS® Dielectric Union, LF3008 Series, Union Fitting, 1 in Connection Size 1, Socket Connection Type 1, 1 in Connection Size 2, FNPTF Connection Type 2, Socket|FNPT Connection, Brass, Brass Material Construction, 1-7/8 in Hex, 250 psi, 2-1/2 in L, 180 deg F
| Connection Size 1 | : | 1 in |
| Connection Size 2 | : | 1 in |
| Connection Type 1 | : | Socket |
| Connection Type 2 | : | FNPTF |
| Connection Type | : | Socket|FNPT |
| Dimensions | : | 2-1/2 in L |
| Fitting Type | : | Union |
| Hex Size | : | 1-7/8 in |
| Material Construction | : | Brass |
| Material | : | Brass |
| Pressure Rating | : | 250 psi |
| Series | : | LF3008 Series |
| Temperature Rating | : | 180 deg F |
- Female brass pipe thread to female solder connections
