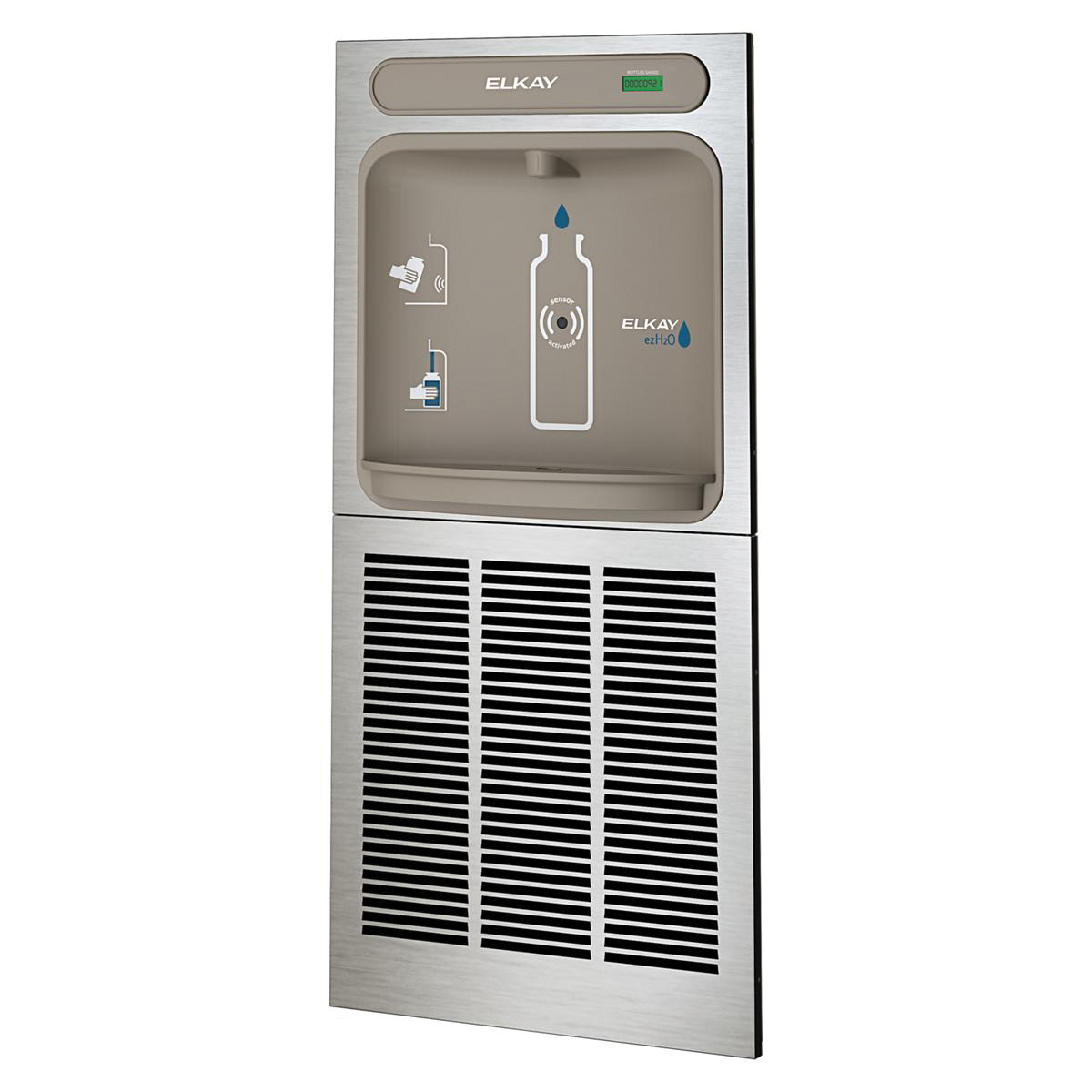

The Elkay EZH2O® 174 bottle filling station delivers a clean quick water bottle fill and enhances sustainability by minimizing our dependency on disposable plastic bottles. Fully recessed in-wall design. Sanitary no-touch sensor activation with automatic 20 s shut-off timer. Quick fill rate. Green ticker 153, counts the quantity of bottles saved from waste.
Elkay®, Series: EZH20, Voltage Rating: 120 V, Amperage Rating: 1 A, Power Rating: 370 W, Flow Rate: 8 gph Chilling, Mounting Type: Wall, Finish: Stainless Steel, Dimensions: 19.75 in L x 3.5 in W x 40.81 in H
| Cooling Capacity | : | 8 gph |
| Housing Color | : | Stainless Steel |
| Overall Depth | : | 40.81 in |
| Overall Length | : | 19.75 in |
| Overall Width | : | 3.5 in |
- Designed as a stand alone unit or to be paired with Elkay SwirlFlo or Soft Sides architectural fountains
- Hermetically sealed refrigeration system provides chilled water to satisfy thirst
- Touchless, sensor activation (bottle filler) designed for easy use
- Fill rate is 1.1 gpm
- Green Ticker informs user of number of 20 oz plastic water bottles saved from waste
- Laminar flow provides clean fill with minimal splash
- Silver ion anti-microbial protection on key plastic components to inhibit the growth of mold and mildew
- Real drain system eliminates standing water
- Rated for indoor use
- Electronic bottle filler sensor
Instruction/Installation Manual
