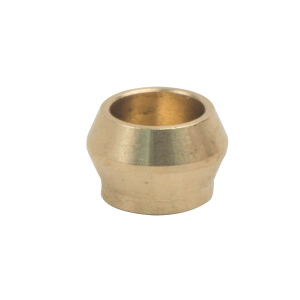

BrassCraft® compression nut is machined from brass. Compression fittings are ideal for use in plumbing, instrumentation, hydraulic and pneumatic systems (gasoline, grease, oil, potable and non-potable water, vacuum and air lines). Can be used to install copper, aluminum or plastic tubing. Not recommended for use with steel tubing.
BrassCraft® Plug, Series: CSP Series, Plug Fitting, 3/8 in Connection Size 1, Compression Connection Type 1, Compression Connection, Brass, Brass Material Construction, Rough, 0.47 in OD x 0.31 in L Dimensions, 200 psi Pressure, -65 to 250 deg F
| Connection Size 1 | : | 3/8 in |
| Connection Type 1 | : | Compression |
| Connection Type | : | Compression |
| Dimensions | : | 0.47 in OD x 0.31 in L |
| Finish | : | Rough |
| Fitting Type | : | Plug |
| Material Construction | : | Brass |
| Material | : | Brass |
| Pressure Rating | : | 200 psi |
| Series | : | CSP Series |
| Temperature Rating | : | -65 to 250 deg F |
- Brass construction provides strength, durability and longer-lasting performance
- Little to no tube preparation required
- Connection does not require flaring, soldering or other types of tube preparation
- Plastic and PEX tubing installations require sleeves and/or inserts
