The Elkay® Crosstown® collection offers a fresh take on the classic stainless steel sink, combining beauty, function and contemporary design. Tight corners and a flat bottom provide more space inside the sink bowl for stacking and cleaning dishes. The striking geometric shape makes a statement in any home.
Elkay® Sink Kit, Crosstown® Collection, Transitional Theme/Style, Rear Drain Location, 3-1/2 in Drain, 4 in Faucet Center, 18 ga Gauge, Stainless Steel, Polished Satin, 1 Holes, Drop-In, Undermount Mounting, 1 Bowls, Rectangular Shape, Sink Bowl Size (Single or Left): 22-1/2 in L x 16-3/4 in W x 9 in D, 30 in Minimum Cabinet, 24-3/8 in L x 21-3/8 in W Cutout, 1-1/2 in Faucet Hole, 25 in Length, 22 in Width, 9 in Height, Domestic/Import: Import
| Collection | : | Crosstown® |
| Cutout Size | : | 24-3/8 in L x 21-3/8 in W |
| Domestic/Import | : | Import |
| Drain Location | : | Rear |
| Drain Size | : | 3-1/2 in |
| Faucet Center Size | : | 4 in |
| Faucet Hole Size | : | 1-1/2 in |
| Finish | : | Polished Satin |
| Gauge | : | 18 ga |
| Height | : | 9 in |
| Length | : | 25 in |
| Material | : | Stainless Steel |
| Minimum Cabinet Size | : | 30 in |
| Mounting Type | : | Drop-In, Undermount |
| Number of Bowls | : | 1 |
| Number of Holes | : | 1 |
| Shape | : | Rectangular |

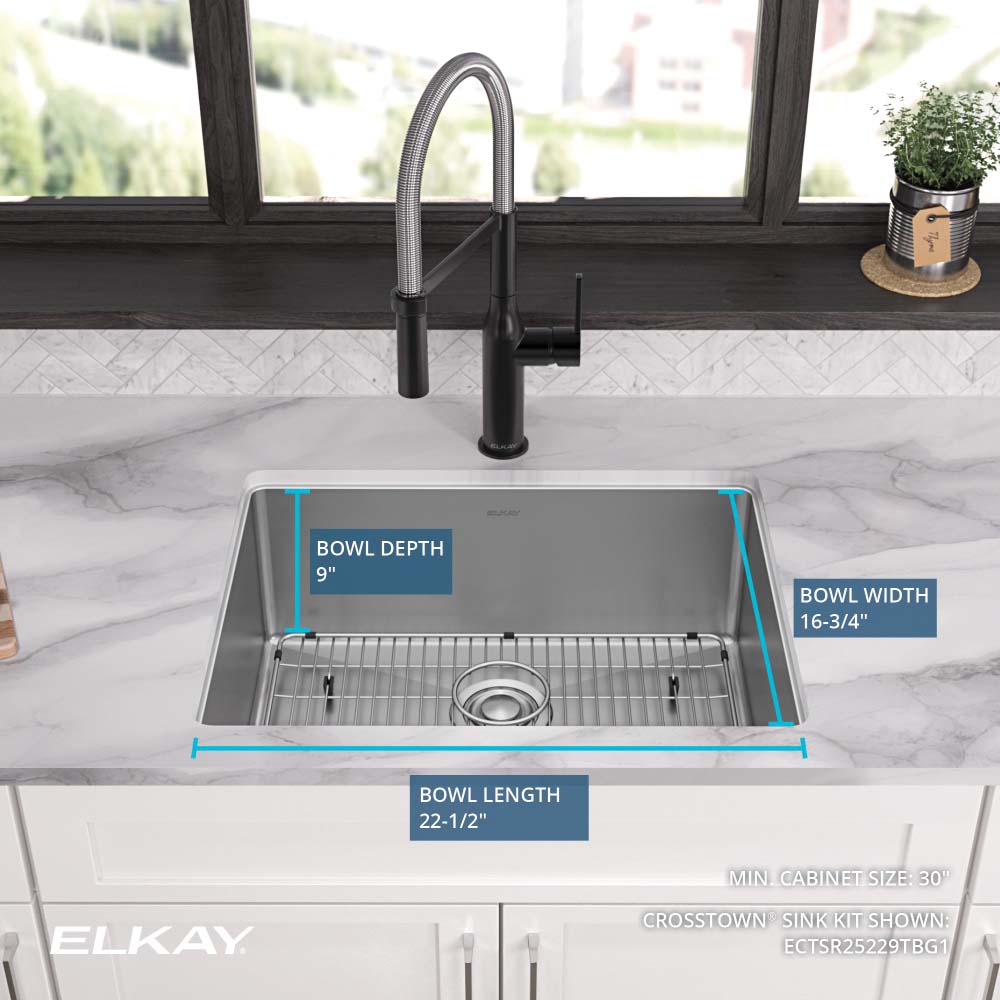

| Sink Bowl Size (Single or Left) | : | 22-1/2 in L x 16-3/4 in W x 9 in D |
| Theme/Style | : | Transitional |
| Width | : | 22 in |
- Slim rim - install sink as a drop-in or under-mount, ultra thin, flat rim virtually eliminates the barrier between sink and counter for a clean look
- Single bowl gives you uninterrupted space for washing and stacking dishes or other household tasks
- Highest quality 18 ga THK and type 304 stainless steel for lasting durability, performance and lustrous beauty
- Sound guard pads and undercoating enhance sound deadening performance for a quieter time at the sink
- Tight corners - fresh, geometric design offers straight sidewalls and a flat bottom for a modern look and more usable space easy-to-clean
- Offset drain - drain placement provides more usable space on the bottom of the sink and in the cabinet below
- Extra deep bowls - high capacity bowls offer more room inside for stacking dishes, filling stockpots and handling large baking sheets and roasters
