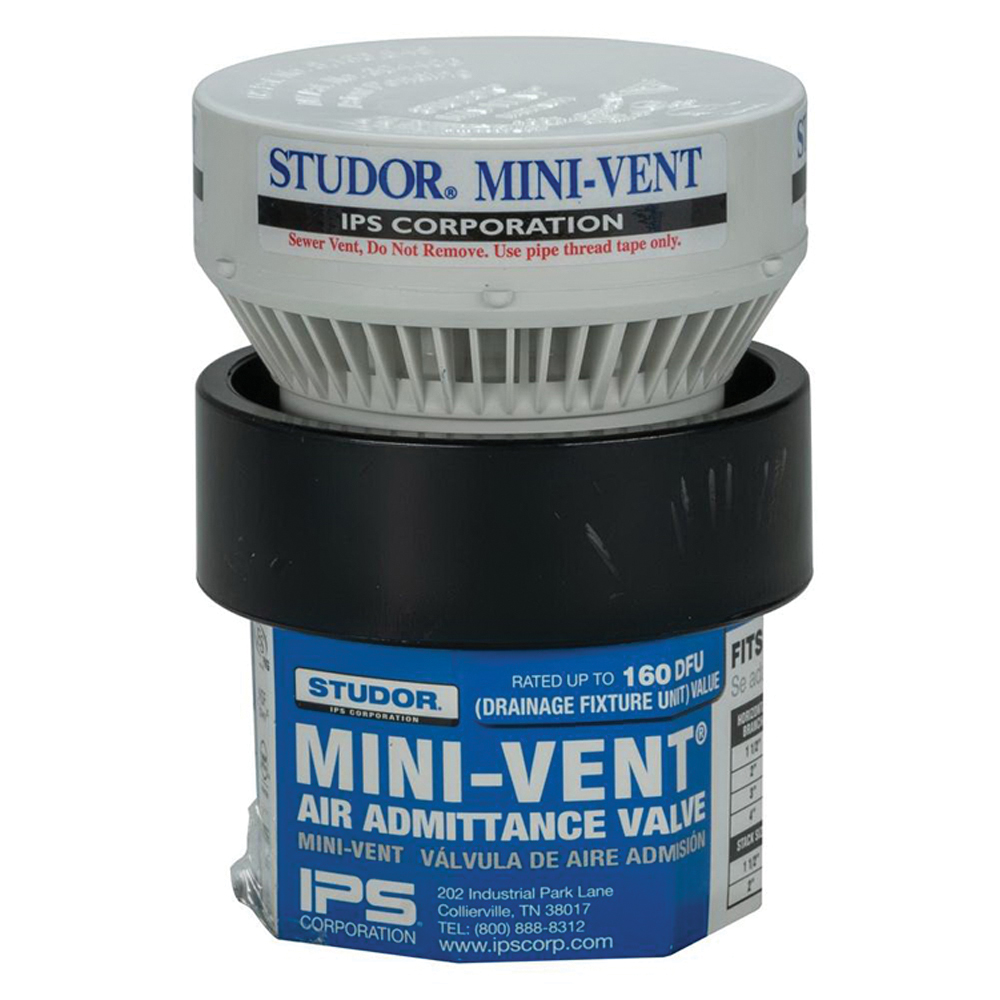

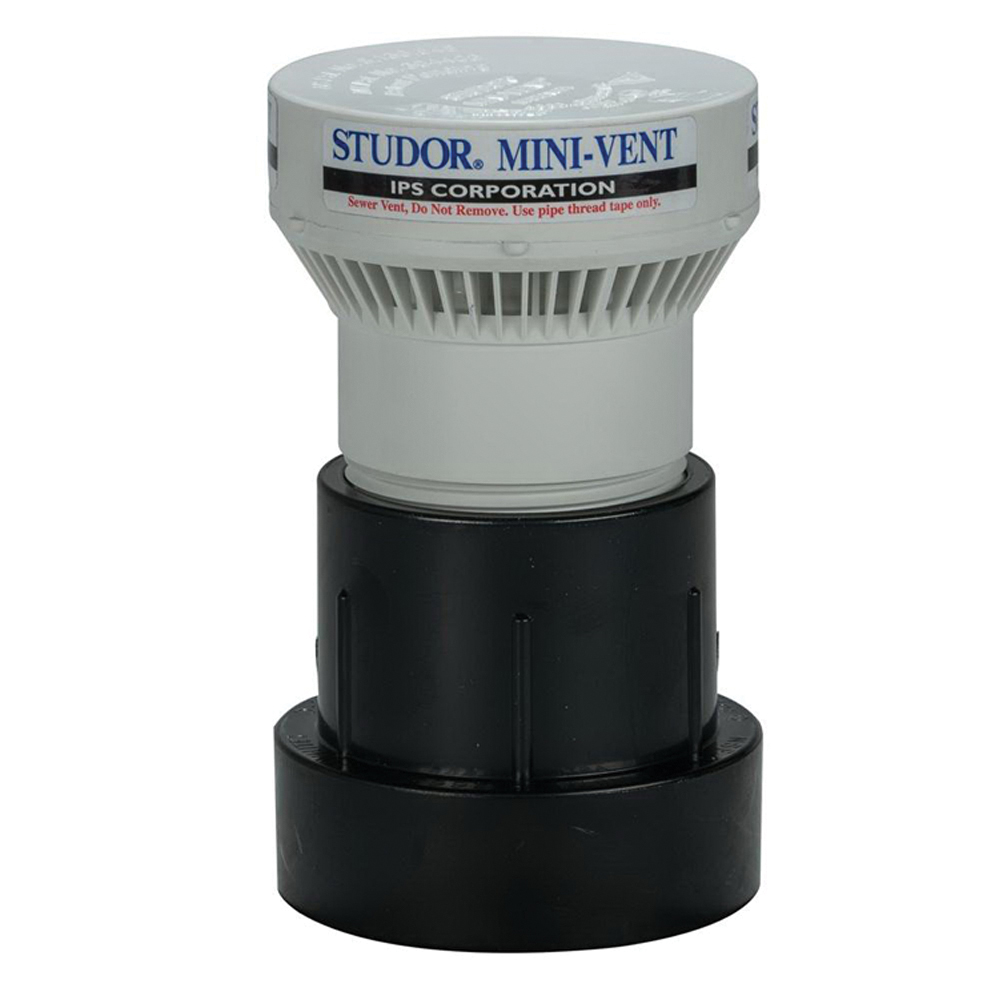

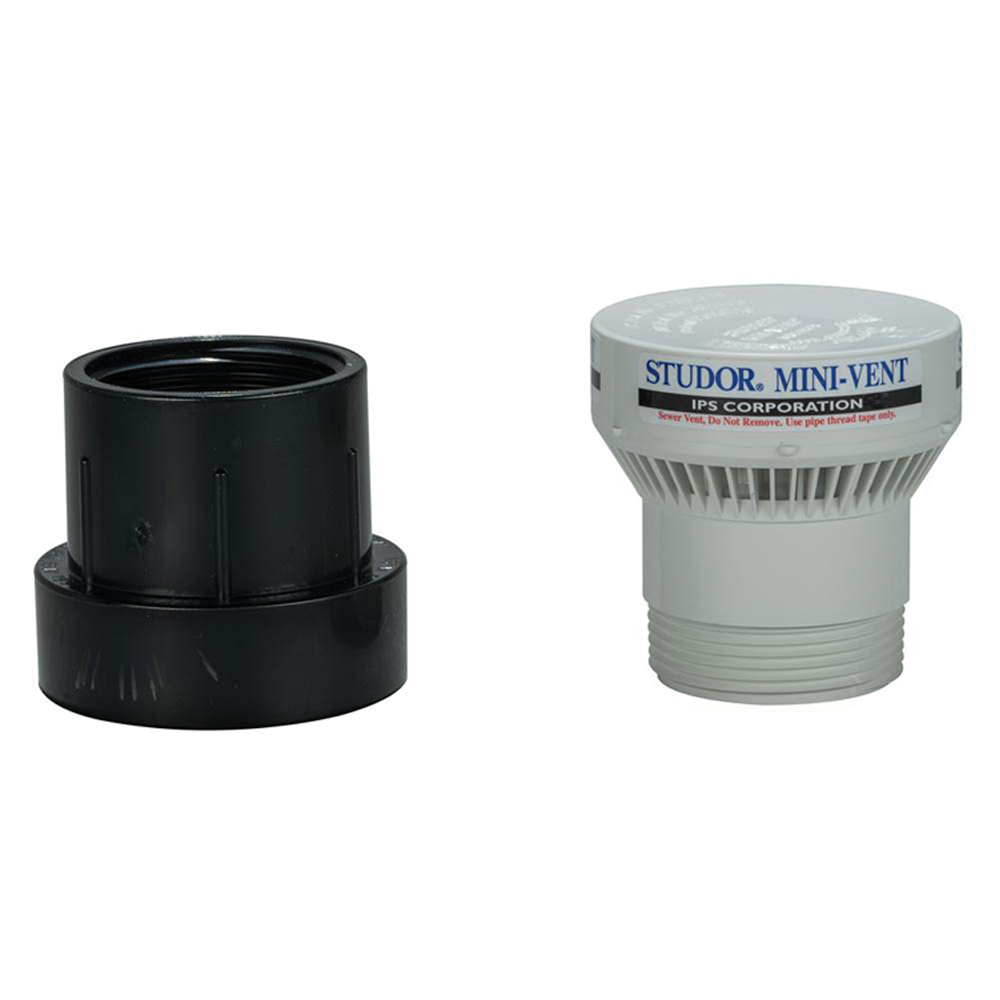

With its compact design, the Studor® Mini-Vent® air admittance valve with PVC adapter offers a simple drain and waste venting solution. Great for venting a single fixture or a group of bathroom fixtures, the Mini-Vent® air admittance valve is designed to fit 1-1/2 in and 2 in pipes and excels in tight applications. This 1 way valve automatically opens and takes in fresh air when negative pressure (suction) occurs from a fixture discharging into the plumbing system. When the water flow stops, the Mini-Vent® closes naturally due to gravity, preventing the circulation of any bad bathroom or drain odors.
IPS® Air Admittance Valve, Collection: Mini-Vent®, 1-1/2 in Connection, Connection Type: NPT, DFU Rating: 160 DFU (Branch), 24 DFU (Stack), 40 to 150 deg F, ABS, 2-5/8 in L Overall, 2 in W Overall, Domestic, Suitable For Use With: 1-1/2 and 2 in Pipe
| Collection | : | Mini-Vent® |
| Connection Size | : | 1-1/2 in, 2 in |
| Connection Type | : | NPT |
| DFU Rating | : | 160 DFU, 24 DFU |
| Domestic/Import | : | Domestic |
| Material | : | ABS |
| Overall Length | : | 2-5/8 in |
| Overall Width | : | 2 in |
| Suitable For Use With | : | 1-1/2 and 2 in Pipe |
| Temperature Rating | : | -40 to 150 deg F |
- The unique design of the Studor® Mini-Vent® provides plumbing ventilation to prevent the loss of water seals in traps without the need for costly roof penetration and vent piping
- Can be used as an individual, branch, circuit or stack vent
- Will vent up to 160 DFU's on a branch and 24 DFU's on a stack
- Reduces the number of fire-stopping applications
- Exclusive vermin protection system
- Expands architectural design limits
