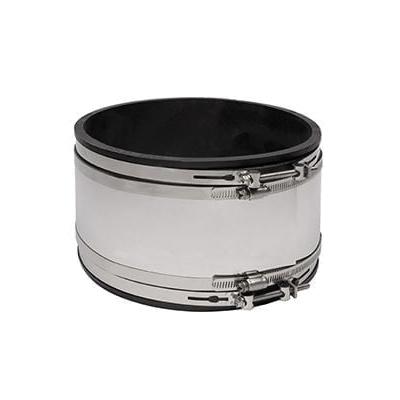

Fernco® Strong Back Flexible Repair Coupling, Series: 5051 RC Series, Asbestos Cement Fiber/Ductile Iron x Cast Iron/Plastic Connection, 60 in-lb Torque, 4.3 psi, PVC, -30 to 140 deg F, 4.39 in ID Small x 4.8 in ID Large x 3.94 in L
| Connection Type | : | Asbestos Cement Fiber/Ductile Iron x Cast Iron/Plastic |
| Dimensions | : | 4.39 in ID x 4.8 in OD x 3.94 in H |
| Domestic/Import | : | Domestic |
| Fitting Size | : | 4 in |
| Material Standard | : | ASTM D5926 C1173 |
| Material | : | PVC |
| Pressure Rating | : | 4.3 psi |
| Series | : | 5051RC Series |
| Temperature Rating | : | -30 to 140 deg F |
| Torque Rating | : | 60 in-lb |
- Designed for resistance to heavy earth loads and shear forces, while providing improved pipe alignment
- 5000 strong back RC couplings offer a 0.012 in stainless steel shield and a molded in bushing
- 6 in and larger couplings incorporate two nut and bolt take-up points per band
